Pepperl+Fuchs OBG5000-R100-2EP-IO-V31 | Retroreflective Sensor | R100 Series

Pepperl+Fuchs OBG5000-R100-2EP-IO-V31 | Retroreflective Sensor for Clear Object Detection with IO-Link, R100 Series

Overview

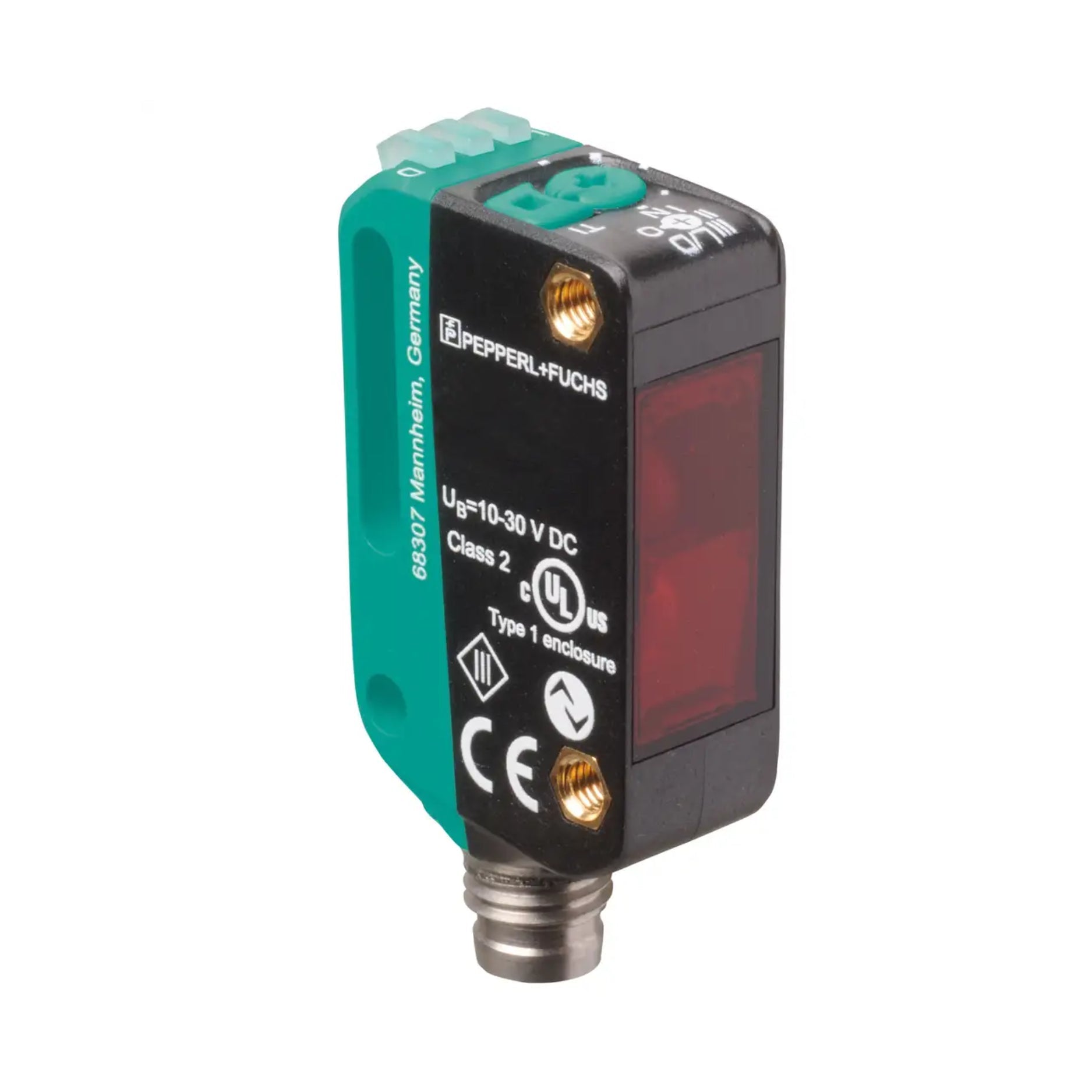

The Pepperl+Fuchs OBG5000-R100-2EP-IO-V31 is a retroreflective sensor designed for clear object detection, capable of identifying transparent materials such as glass, PET bottles, and films. Part of the R100 series, it offers a compact design with versatile mounting options and an IO-Link interface for seamless integration into industrial automation systems.

Key Features

• Detection Capability: Accurately detects transparent objects like clear glass and PET bottles.

• Detection Range: Up to 3.5 meters in TEACH mode; up to 5 meters with standard settings.

• Light Source: Modulated visible red LED for precise detection.

• IO-Link Interface: Enables efficient communication and parameterization.

• Protection Rating: IP67/IP69/IP69K, ensuring durability in harsh environments.

• Compact Design: Miniature housing with flexible mounting options.

• User-Friendly Indicators: Green and yellow LEDs for power and status indication.

• Adjustable Settings: 5-step rotary switch for selecting operating modes and contrast detection levels.

Technical Specifications

• Model Number: OBG5000-R100-2EP-IO-V31

• Series: R100

• Effective Detection Range: 0 to 3.5 m (TEACH mode); 0 to 5 m (standard mode)

• Threshold Detection Range: 6 m

• Reference Target: H85-2 reflector

• Light Type: Modulated visible red light

• Opening Angle: Approximately 5°

• Operating Voltage: 10 to 30 V DC

• No-Load Supply Current: Less than 25 mA at 24 V supply voltage

• Switching Frequency: 500 Hz

• Response Time: 1 ms

• Output Type: Two push-pull (4-in-1) outputs, short-circuit and overvoltage protected

• Switching Voltage: Maximum 30 V DC

• Switching Current: Maximum 100 mA (resistive load)

• Connection: M8 x 1 connector, 4-pin

• Housing Material: Polycarbonate (PC)

• Optical Face Material: PMMA

• Dimensions: 44.5 mm (H) x 11 mm (W) x 21.5 mm (D)

• Weight: Approximately 10 g

• Operating Temperature Range: -20°C to +60°C

• Storage Temperature Range: -40°C to +70°C

• Certifications: CE, UL Listed (E87056), IO-Link compliant

Applications

• Beverage Industry: Detection of clear bottles and containers on production lines.

• Pharmaceuticals: Identifying transparent packaging materials.

• Automotive: Sensing transparent components in assembly processes.

• Packaging: Monitoring clear films and plastic wraps in packaging machinery.

Why Choose Pepperl+Fuchs OBG5000-R100-2EP-IO-V31?

• Transparent Object Detection: Specialized design for reliable sensing of clear materials.

• Advanced Communication: IO-Link interface facilitates easy integration and data exchange.

• Robust Construction: High protection ratings ensure performance in demanding environments.

• Compact and Versatile: Small form factor with flexible mounting options suits various applications.

• User-Friendly Operation: LED indicators and rotary switch simplify setup and diagnostics.

Order Now

Available for immediate worldwide shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
