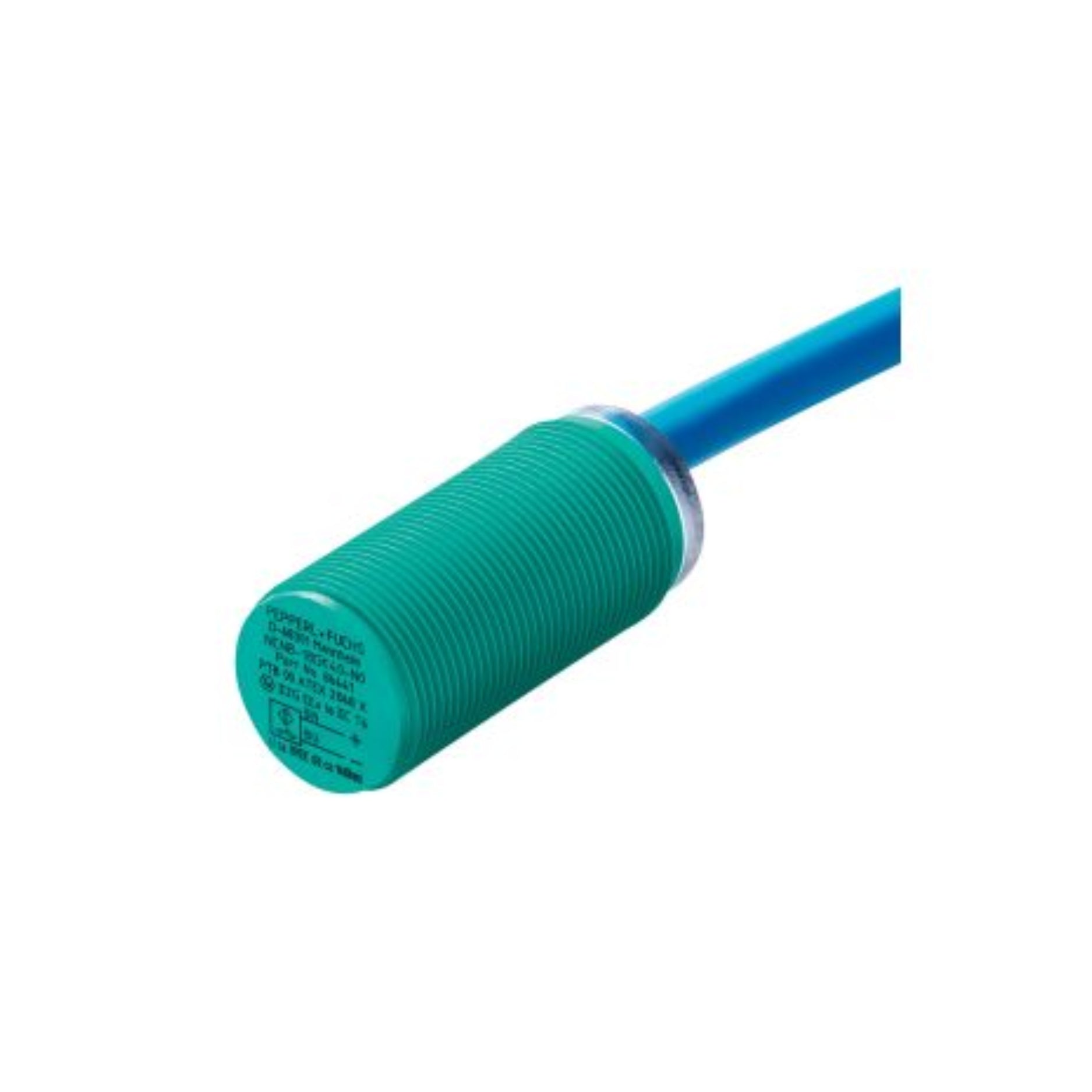

Pepperl+Fuchs NJ8-18GK-N | M18 Inductive Sensor | 8 mm Range | NAMUR Output | IP68

Pepperl+Fuchs NJ8-18GK-N | High-Precision M18 Inductive Sensor for Industrial Applications

Overview

The Pepperl+Fuchs NJ8-18GK-N is a robust M18 inductive proximity sensor designed for precise detection of metallic objects in industrial environments. Featuring an 8 mm non-flush sensing range, NAMUR normally closed (NC) output, and compliance with SIL 2 safety standards, this sensor ensures reliable performance in safety-critical applications. Its durable construction and high ingress protection make it suitable for various automation tasks requiring accurate and non-contact object detection.

Key Features

• Sensing Range: 8 mm non-flush installation, providing accurate detection of metallic targets.

• Output Type: NAMUR switching output with normally closed (NC) function, compatible with intrinsically safe circuits.

• Safety Compliance: Suitable for applications requiring up to SIL 2 compliance according to IEC 61508 standards.

• Robust Construction: Housing made of PBT/PPS with PBT sensing face, ensuring durability and resistance to industrial wear.

• High Protection Rating: IP66/IP68-rated, offering excellent protection against dust and water ingress.

• Wide Operating Temperature Range: Operates effectively between -25°C and +100°C, suitable for various environmental conditions.

• Compact Design: M18 threaded cylindrical housing with a length of 39 mm, facilitating easy integration into different systems.

• Connection: Equipped with a 2-meter PVC cable for flexible installation.

Technical Specifications

• Model Number: NJ8-18GK-N

• Switching Function: Normally closed (NC)

• Output Type: NAMUR

• Rated Operating Distance (sn): 8 mm

• Installation: Non-flush

• Assured Operating Distance (sa): 0 to 6.48 mm

• Reduction Factors:

  • Aluminum (rAl): 0.4

  • Copper (rCu): 0.3

  • Stainless Steel 304 (r304): 0.85

• Nominal Voltage (Uo): 8.2 V (Ri approximately 1 kΩ)

• Switching Frequency (f): 0 to 200 Hz

• Hysteresis (H): 1% to 7%, typically 4%

• Current Consumption:

  • Target Not Detected: Minimum 3 mA

  • Target Detected: ≤ 1 mA

• Ambient Temperature Range: -25°C to +100°C (-13°F to +212°F)

• Housing Material: PBT/PPS

• Sensing Face Material: PBT

• Degree of Protection: IP66/IP68

• Cable Specifications:

  • Diameter: 6 mm ± 0.2 mm

  • Material: PVC

  • Length: 2 meters

• Dimensions:

  • Length: 39 mm

  • Diameter: 18 mm

• Compliance:

  • Standards: EN IEC 60947-5-2

  • Approvals: cULus Listed for General Purpose, ATEX, IECEx, CCC, Marine approval DNVGL TAA00001A5

Applications

• Safety-Critical Systems: Suitable for use in applications requiring up to SIL 2 compliance, ensuring reliable performance in safety-related functions.

• Material Handling: Accurate detection of metal objects on conveyors for sorting and positioning.

• Automotive Manufacturing: Ensures precise detection of vehicle components during assembly processes.

• Packaging Industry: Verifies the presence of metallic parts in packaging lines to maintain quality control.

• Machine Tools: Monitors the position of metal workpieces and tools to enhance operational safety and efficiency.

Why Choose Pepperl+Fuchs NJ8-18GK-N?

• Enhanced Safety Compliance: Meets SIL 2 standards, making it suitable for safety-critical applications.

• Reliable Detection: 8 mm non-flush sensing range allows for precise detection of metallic targets.

• Durable and Robust: High-quality materials and IP68 protection ensure longevity in harsh industrial environments.

• Wide Operating Temperature Range: Capable of functioning effectively in temperatures ranging from -25°C to +100°C.

• Trusted Brand: Pepperl+Fuchs is renowned for high-quality sensors and automation solutions, ensuring reliability and support.
