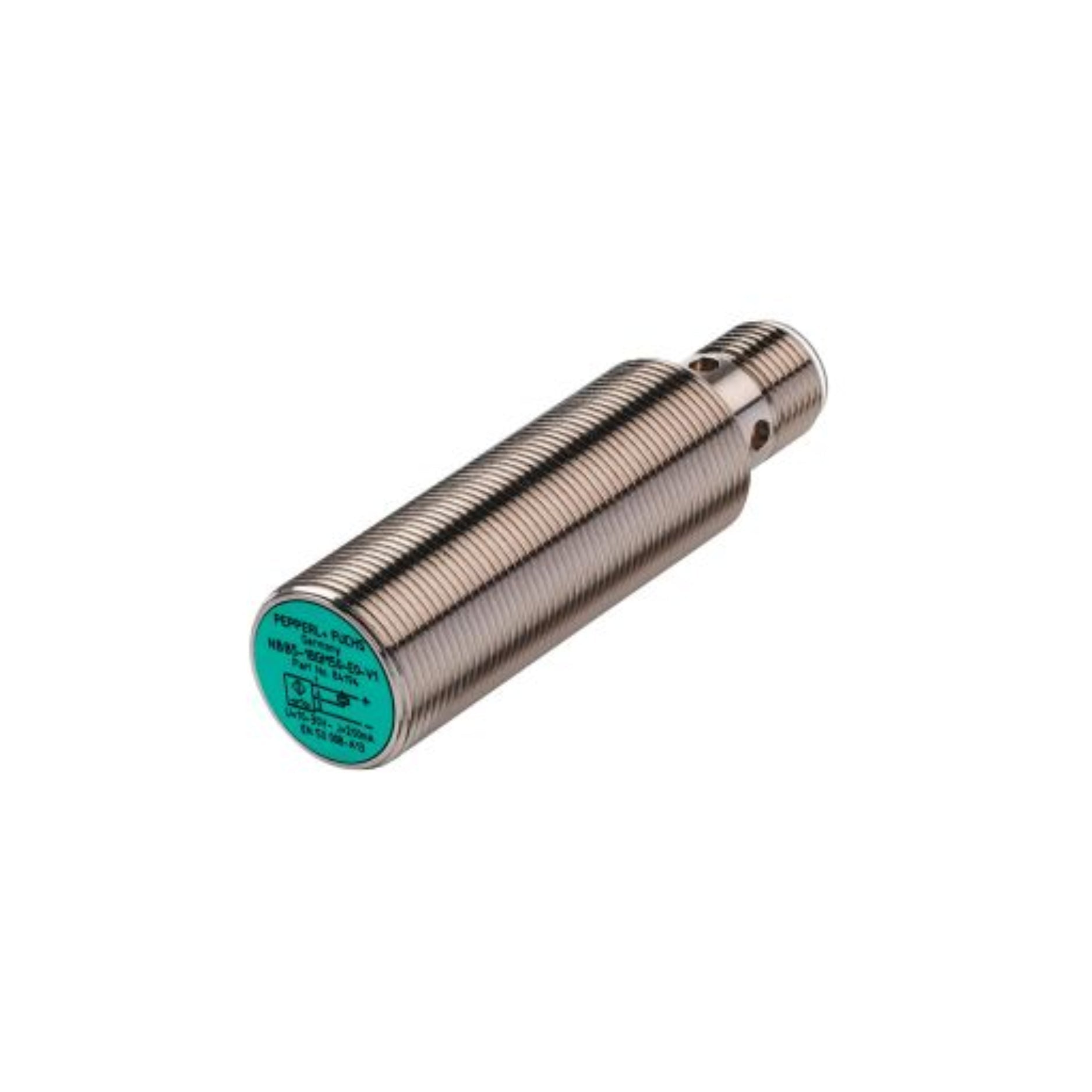

Pepperl+Fuchs NJ5-18GM50-E2-V1 | M18 Inductive Sensor | 5 mm Range | PNP NO Output

Pepperl+Fuchs NJ5-18GM50-E2-V1 | High-Precision M18 Inductive Proximity Sensor for Industrial Applications

Overview

The Pepperl+Fuchs NJ5-18GM50-E2-V1 is a robust M18 inductive proximity sensor designed for accurate detection of metal objects within a 5 mm range. Featuring a PNP normally open (NO) switching output, this sensor ensures reliable performance in various industrial automation applications. Its durable stainless steel construction and IP67 protection rating make it suitable for challenging environments.

Key Features

• Sensing Range: 5 mm flush installation, providing precise detection capabilities.

• Output Type: PNP switching output with normally open (NO) function, facilitating straightforward integration into control systems.

• Operating Voltage: 10 to 60 V DC, accommodating standard industrial power supplies.

• Switching Frequency: Up to 1,500 Hz, suitable for applications requiring high-speed response times.

• Hysteresis: Typically 6%, ensuring accurate and consistent switching behavior.

• Robust Construction: Stainless steel housing (1.4305 / AISI 303) ensures durability and resistance to industrial wear.

• Protection Rating: IP67-rated, offering protection against dust and water ingress.

• Operating Temperature Range: -25°C to +70°C, suitable for various environmental conditions.

• Connection: Equipped with an M12 connector plug for easy and secure installation.

• Indicators: Yellow LED for clear visual indication of the switching state.

Technical Specifications

• Model Number: NJ5-18GM50-E2-V1

• Switching Function: Normally open (NO)

• Output Type: PNP

• Rated Operating Distance: 5 mm

• Installation: Flush

• Output Polarity: DC

• Assured Operating Distance: 0 to 4.05 mm

• Reduction Factors: Aluminum (0.2), Copper (0.15), Stainless Steel 304 (0.62), Brass (0.32)

• Operating Voltage Range: 10 to 60 V DC

• No-Load Supply Current: ≤ 9 mA

• Switching Frequency: 0 to 1,500 Hz

• Voltage Drop: ≤ 3 V

• Operating Current: 0 to 200 mA

• Off-State Current: 0 to 0.5 mA (typ. 0.01 mA)

• Time Delay Before Availability: ≤ 30 ms

• Ambient Temperature Range: -25°C to +70°C

• Housing Material: Stainless steel 1.4305 / AISI 303

• Sensing Face Material: PBT

• Degree of Protection: IP67

• Connection Type: M12 connector plug

• Dimensions: Diameter 18 mm, Length 65 mm

• Compliance: EN IEC 60947-5-2

Applications

• Material Handling: Accurate detection of metal objects on conveyors for sorting and positioning.

• Packaging Industry: Verifies the presence of metal components in packaging lines to maintain quality control.

• Automotive Manufacturing: Ensures precise detection of metal parts during assembly processes.

• Process Control: Monitors positions of metal materials in various industrial processes.

Why Choose Pepperl+Fuchs NJ5-18GM50-E2-V1?

• Precise Detection: 5 mm flush sensing range allows for accurate detection of metal objects.

• Durable Design: Robust stainless steel housing and IP67 protection ensure longevity in harsh industrial environments.

• Easy Integration: PNP NO output and standard M12 connector facilitate straightforward installation and integration into existing systems.

• Reliable Performance: High switching frequency and consistent hysteresis support efficient operation in automation applications.

• Trusted Brand: Pepperl+Fuchs is renowned for high-quality industrial automation components, ensuring reliability and support.

Order Now

Available for immediate shipping worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
