Pepperl+Fuchs NJ5-18GM50-A2-V1 | Inductive Proximity Sensor – 5mm Flush Mount, PNP Complementary Output

Overview

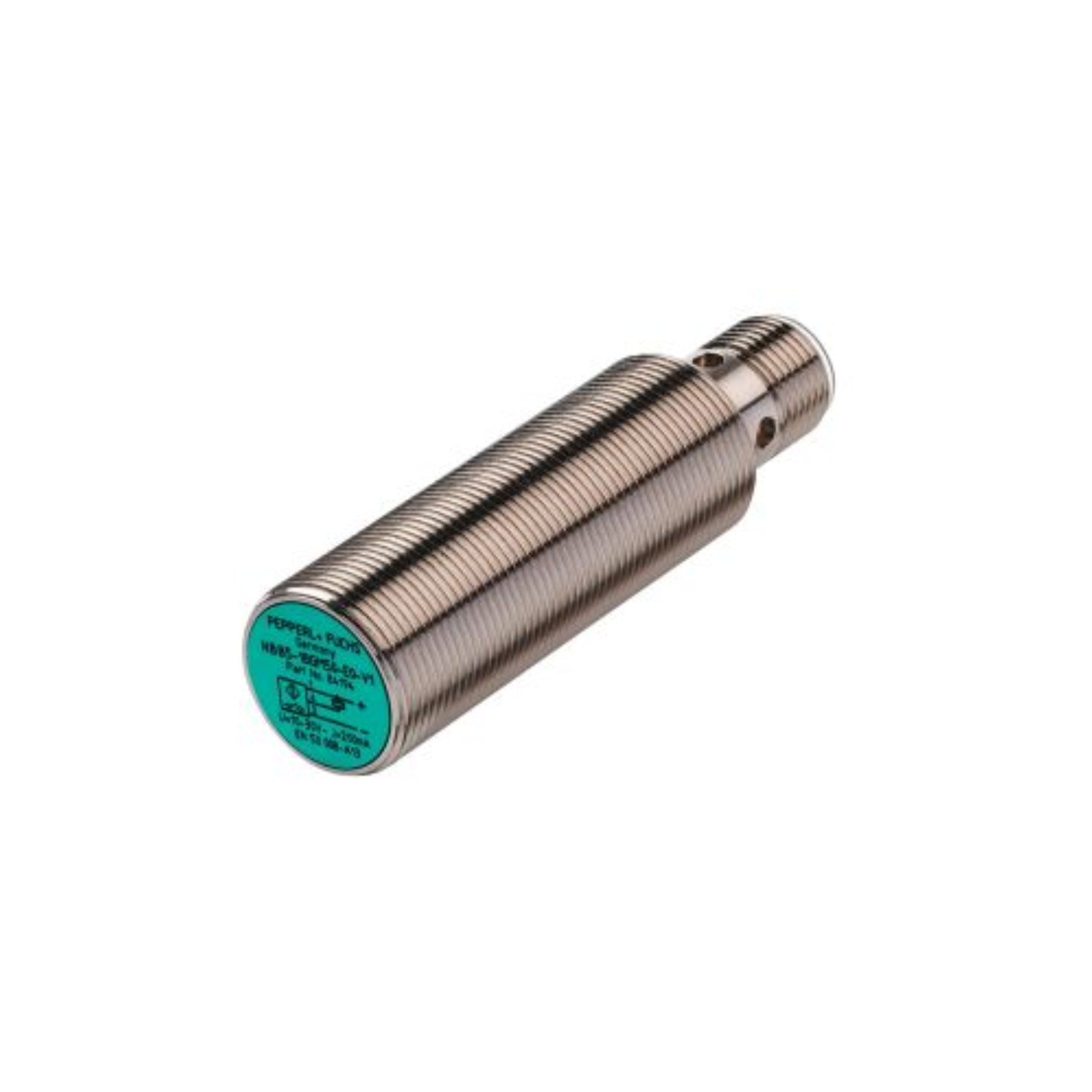

The Pepperl+Fuchs NJ5-18GM50-A2-V1 is a cylindrical inductive proximity sensor designed for precise, non-contact detection of metal objects. With a 5mm flush-mounted sensing distance, this sensor offers reliable performance in various industrial applications. Its PNP complementary (NO and NC) output ensures compatibility with diverse control systems, and the M18 stainless steel housing provides durability in demanding environments.

This sensor is suitable for applications requiring accurate metal detection in industries such as automotive manufacturing, material handling, and packaging.

Key Features

• Sensing Distance: 5mm (flush mount)

• Output Type: PNP complementary (NO and NC)

• Housing Material: Stainless steel 1.4305 / AISI 303

• Operating Voltage: 10 to 60 V DC

• Switching Frequency: Up to 500 Hz

• Degree of Protection: IP67

• Operating Temperature Range: -25°C to +70°C (-13°F to +158°F)

• Connection Type: M12 connector plug, 4-pin

• Switching State Indicator: Yellow LED

Technical Specifications

• Model Number: NJ5-18GM50-A2-V1

• Part Number: 222498

• Installation: Flush

• Assured Operating Distance: 0 to 4.05mm

• Reduction Factors:

  • Aluminum (rAl): 0.4

  • Copper (rCu): 0.35

  • Stainless Steel (r304): 0.7

• Voltage Drop: ≤ 3 V

• Operating Current: 0 to 400 mA

• Off-State Current: 0 to 0.5 mA

• No-Load Supply Current: ≤ 15 mA

• Hysteresis: Typically 5%

• Reverse Polarity Protection: Yes

• Short-Circuit Protection: Pulsing

• Housing Dimensions: M18 x 1 thread, 50mm length

• Compliance: EN IEC 60947-5-2

• Approvals:

  • UL Approval: cULus Listed, General Purpose

  • CCC Approval: Certified by China Compulsory Certification (CCC)

Applications

• Automotive Manufacturing: Precise metal part detection on assembly lines

• Material Handling: Object presence detection on conveyors

• Packaging Industry: Metal component detection in packaging processes

• General Industrial Automation: Non-contact metal sensing in various machinery

Why Choose the NJ5-18GM50-A2-V1?

• Reliable Performance: Consistent detection with a 5mm sensing range

• Robust Construction: Stainless steel housing ensures durability in harsh environments

• Flexible Integration: PNP complementary output compatible with various control systems

• High Switching Frequency: Suitable for fast-paced industrial applications
