Pepperl+Fuchs NJ40-U10-E2 | 40 mm | 2-Wire AC/DC | Flush | IP67

Pepperl+Fuchs NJ40-U10-E2 | Inductive Sensor, 40 mm, 2-Wire AC/DC, IP67

Overview:

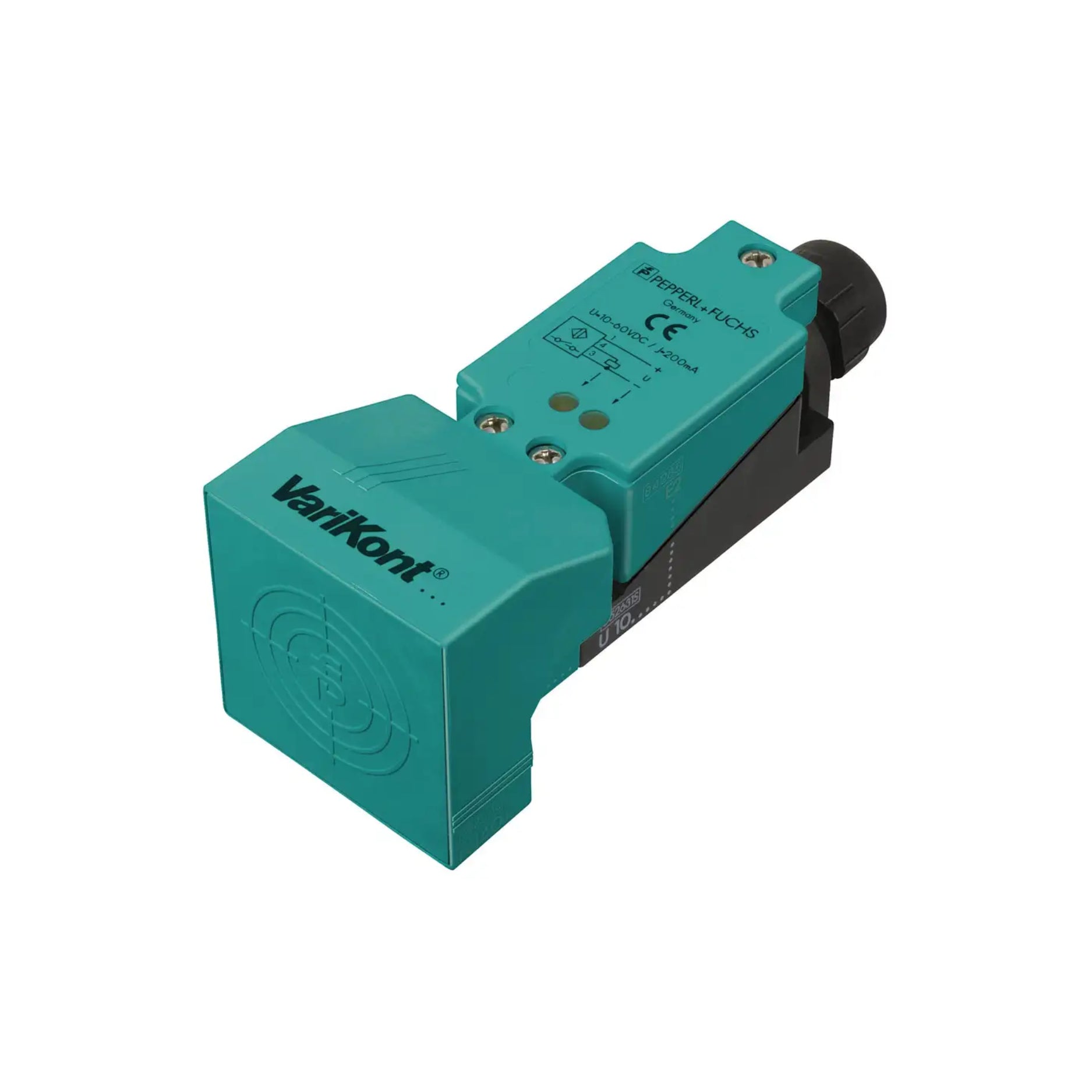

The Pepperl+Fuchs NJ40-U10-E2 (Part No. 087418) is a high-range flush-mount inductive proximity sensor with a 40 mm sensing distance. Designed with a 2-wire AC/DC configuration and a normally open output, it delivers reliable metal detection in tough industrial environments. Its rugged plastic housing and IP67 protection make it ideal for heavy-duty applications.

Key Features:

• Sensing Distance: 40 mm (flush mount)

• Output Type: Normally Open (NO)

• Wiring Configuration: 2-wire AC/DC

• Operating Voltage: 20–250 V AC/DC

• Housing Material: Plastic (PBT)

• Connection Type: Prewired 2 m cable

• Protection Class: IP67

• Switching Frequency: 15 Hz (AC), 200 Hz (DC)

• Temperature Range: -25°C to +70°C

• LED Indicator: Integrated for switch status

Technical Specifications:

• Model Number: NJ40-U10-E2

• Part Number: 087418

• Sensing Principle: Inductive

• Installation Type: Flush

• Voltage Drop: ≤ 10 V

• Load Current: 5–200 mA

• Leakage Current: ≤ 1.8 mA

• Short-Circuit Protection: Yes

• Cable Length: Approx. 2 meters

• Weight: Approx. 200 g

Applications:

• Heavy Equipment: Long-range detection of large metal parts

• Conveyor Systems: Monitor presence/positioning in material handling

• OEM Machinery: Integrated sensing with high tolerance for harsh use

• Packaging Lines: Non-contact detection in automation environments

• Machine Tools: Reliable metal detection in production processes

Why Choose the NJ40-U10-E2?

✅ Extended 40 mm flush sensing range for greater flexibility
✅ 2-wire AC/DC output simplifies control circuit integration
✅ Rugged plastic body withstands tough conditions
✅ IP67-rated for wet, dusty, or industrial environments
✅ Ideal for long-range, high-performance applications
