Pepperl+Fuchs NJ3-18GK-S1N | M18 Inductive Sensor | 3mm Range | NAMUR Output | IP68

Pepperl+Fuchs NJ3-18GK-S1N | High-Precision Inductive Sensor for Non-Ferrous Metal Detection in Hazardous Environments

Overview

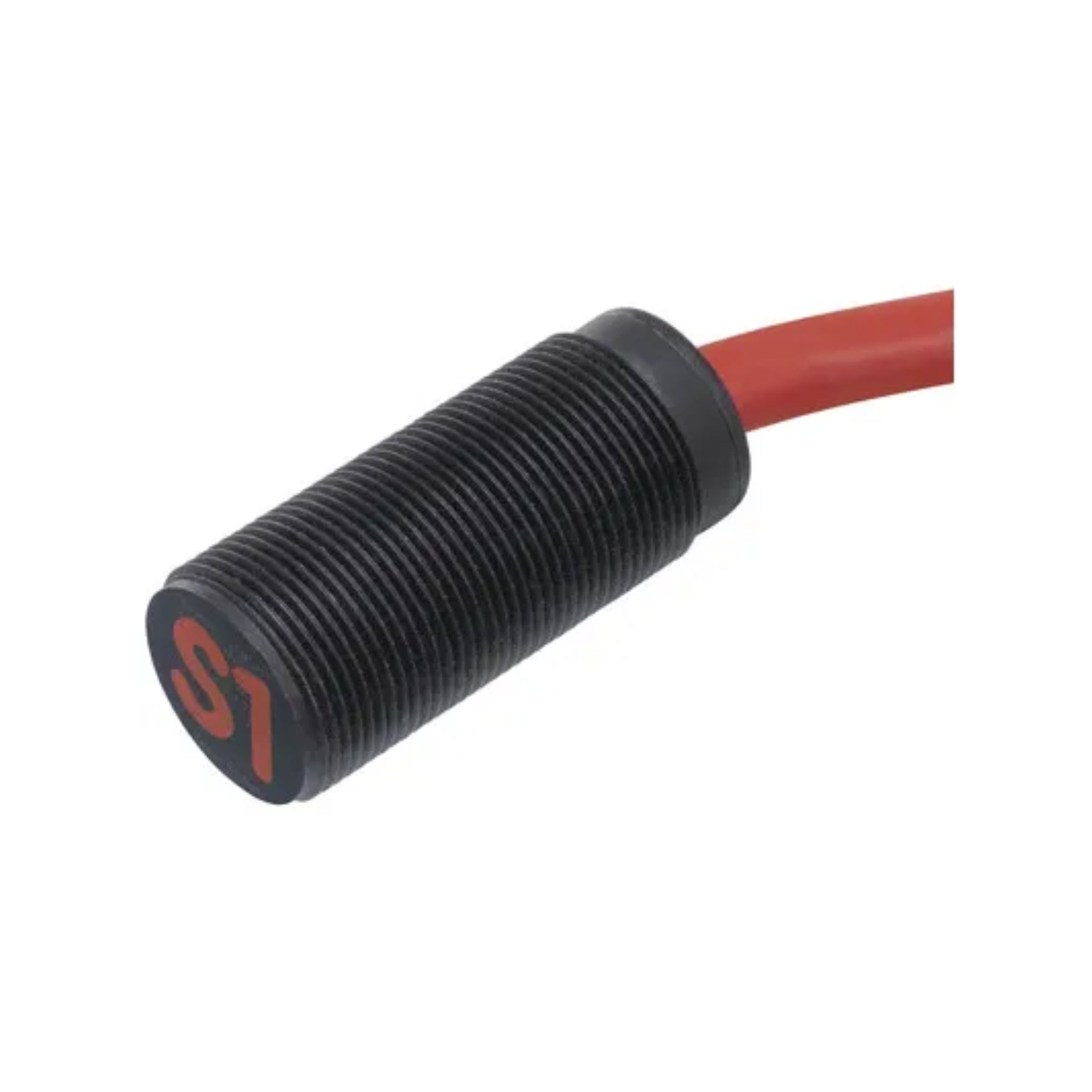

The Pepperl+Fuchs NJ3-18GK-S1N is a high-precision M18 inductive proximity sensor specifically designed for detecting non-ferrous metal targets. With a sensing range of 3 mm, this sensor delivers reliable performance in industrial applications, including hazardous areas. Its robust construction, adherence to safety standards, and suitability for use up to SIL 3 make it an excellent choice for critical automation tasks.

Key Features

• Target Material: Optimized for non-ferrous metals, ensuring accurate detection in specialized applications.

• Sensing Range: Provides a 3 mm sensing distance with flush installation in mild steel (ST37/1.0037).

• Output Type: NAMUR output with a normally open (NO) switching function, compatible with standard intrinsically safe circuits.

• Safety Integrity Level: Suitable for applications requiring up to SIL 3 compliance according to IEC 61508 standards.

• Hazardous Area Approvals: Certified for use in ATEX and IECEx Zone 0/1/20/21 (Ex i) and Zone 2/22 (Ex ec/tc) hazardous locations.

• Environmental Protection: IP68-rated housing ensures durability and resistance to dust and water ingress.

• Temperature Range: Operates effectively in ambient temperatures ranging from -25°C to 100°C (-13°F to 212°F).

• Compact Design: M18 threaded cylindrical housing with a length of 39 mm, facilitating easy integration into various systems.

• Connection: Equipped with a 2-meter silicone cable for flexible installation.

Technical Specifications

• Model Number: NJ3-18GK-S1N

• Switching Function: Normally open (NO)

• Output Type: NAMUR with safety function

• Rated Operating Distance (sn): 3 mm

• Assured Operating Distance (sa): 0 to 2.4 mm

• Actual Operating Distance (sr): Typically 2.7 to 3.3 mm

• Reduction Factors:

  • Aluminum (rAl): 1

  • Copper (rCu): 1

  • Stainless Steel 304 (r304): 0

• Nominal Voltage (Uo): 8.2 V (Ri approximately 1 kΩ)

• Switching Frequency (f): 0 to 200 Hz

• Current Consumption:

  • Target Not Detected: ≤ 1 mA

  • Target Detected: ≥ 3 mA

• Housing Material: Crastin (PBT), black

• Sensing Face Material: Crastin (PBT), black

• Degree of Protection: IP68

• Cable Specifications:

  • Diameter: 6.8 mm ± 0.2 mm

  • Material: Silicone

  • Core Cross Section: 0.75 mm²

  • Length: 2 meters

• Dimensions:

  • Length: 39 mm

  • Diameter: 18 mm

• Certifications:

  • IECEx Approvals: Equipment protection levels Ga, Gb, Gc (ec), Da, Dc (tc), Mb

  • ATEX Approvals: Equipment protection levels Ga, Gb, Gc (ec), Da, Dc (tc)

  • UL Approval: cULus Listed for General Purpose and Hazardous Locations

  • CCC Approval: Certified for hazardous locations

Applications

• Chemical Processing: Reliable detection of non-ferrous metal components in hazardous chemical environments.

• Oil and Gas Industry: Suitable for use in explosive atmospheres, ensuring safe operation in drilling and refining applications.

• Pharmaceutical Manufacturing: Precise detection in cleanroom environments where non-ferrous materials are prevalent.

• Food and Beverage Industry: Ideal for applications requiring sensors with high ingress protection and resistance to cleaning agents.

• Automotive Manufacturing: Accurate detection of aluminum and other non-ferrous parts in assembly lines.

Why Choose Pepperl+Fuchs NJ3-18GK-S1N?

• Specialized Detection: Engineered specifically for non-ferrous metal targets, providing accurate and reliable performance.

• High Safety Standards: Compliance with SIL 3 and multiple hazardous area certifications ensures suitability for critical applications.

• Robust Construction: IP68-rated housing and wide operating temperature range offer durability in harsh environments.

• Compact and Versatile: M18 form factor with flush mounting capability allows easy integration into various industrial setups.

• Trusted Brand: Pepperl+Fuchs is renowned for high-quality sensors and automation solutions, ensuring reliability and support.
