Pepperl+Fuchs NJ2-12GM40-E2-V1 Inductive Sensor 2mm PNP M12

Pepperl+Fuchs NJ2-12GM40-E2-V1 – High-Precision 2mm Inductive Proximity Sensor

Overview

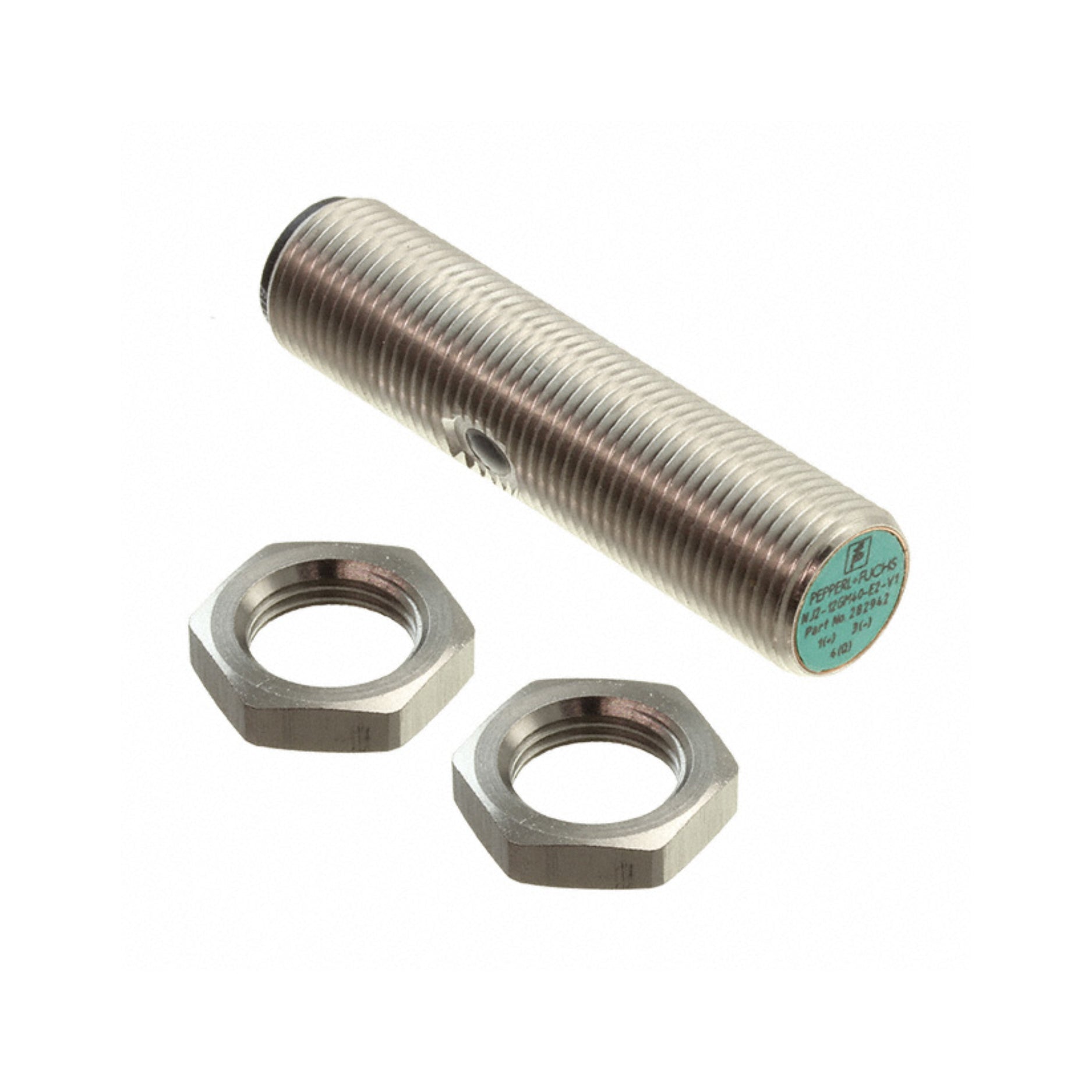

The Pepperl+Fuchs NJ2-12GM40-E2-V1 is a compact inductive proximity sensor designed for precise detection of metallic objects within a 2mm range. Its robust construction and flush mount design make it ideal for various industrial applications requiring accurate and reliable sensing.

Key Features

• Sensing Distance: 2mm

• Output Type: PNP Normally Open (NO)

• Operating Voltage: 10 to 60 V DC

• Switching Frequency: Up to 3,000 Hz

• Installation: Flush mountable

• Housing Material: Stainless steel (1.4305 / AISI 303)

• Connection Type: 4-pin M12 connector

• Protection Rating: IP67

• Operating Temperature Range: -25°C to 70°C (-13°F to 158°F)

• Switching State Indicator: Yellow LED

Technical Specifications

• Model: NJ2-12GM40-E2-V1

• Series: NJ2

• Reduction Factors:

  • Aluminum (rAl): 0.23

  • Copper (rCu): 0.21

  • Stainless Steel 304 (r304): 0.7

• Hysteresis: 1% to 10%, typically 3%

• Reverse Polarity Protection: Yes

• Short-Circuit Protection: Pulsing

• Voltage Drop: ≤ 3 V

• Operating Current: 0 to 200 mA

• Off-State Current: ≤ 0.5 mA

• No-Load Supply Current: ≤ 9 mA

• Time Delay Before Availability: ≤ 20 ms

Applications

• Automation Systems: Precise positioning and detection of metal components

• Conveyor Belts: Object detection and counting

• Robotics: End-of-arm tooling position sensing

• Packaging Machines: Metal part detection in packaging lines

Why Choose the Pepperl+Fuchs NJ2-12GM40-E2-V1?

• High Precision: Accurate detection with a 2mm sensing range

• Durable Construction: Stainless steel housing ensures longevity in harsh environments

• Reliable Performance: High switching frequency suitable for fast-paced operations

• Easy Integration: Standard M12 connector for straightforward installation

• Robust Protection: IP67 rating ensures resistance to dust and water

Order Now

The Pepperl+Fuchs NJ2-12GM40-E2-V1 inductive proximity sensor is available for prompt shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
