Pepperl+Fuchs NJ2-12GM40-E2 | M12 | 2 mm | PNP NO | IP67 | 10–30 VDC

Pepperl+Fuchs NJ2-12GM40-E2 | M12 Inductive Sensor, 2 mm, PNP NO, IP67

Overview:

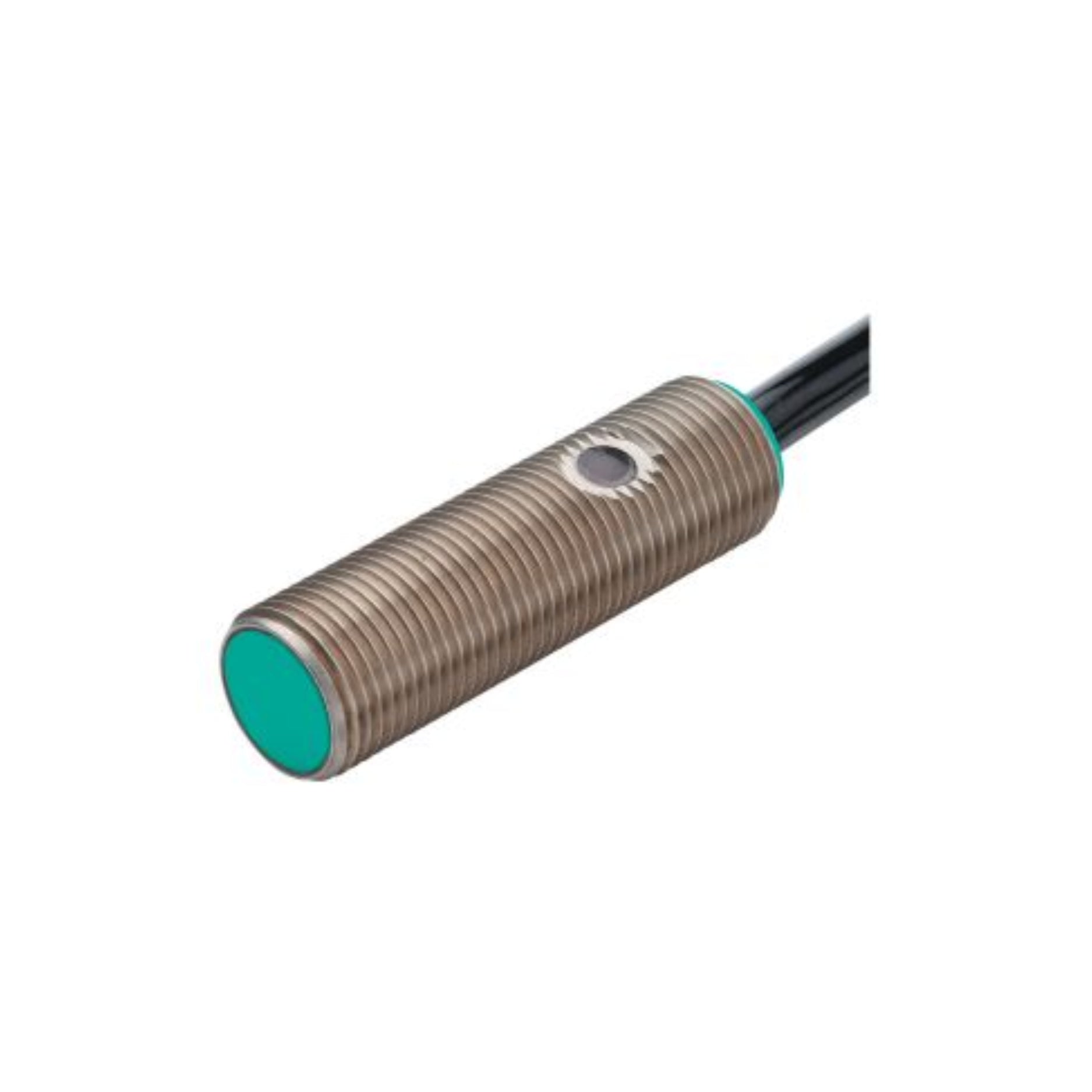

The Pepperl+Fuchs NJ2-12GM40-E2 (Part No. 282939) is a flush-mount M12 inductive proximity sensor engineered for precise 2 mm metal object detection. With a PNP normally open output and IP67 protection, it is well-suited for demanding automation environments where reliability and space-saving form factors are essential.

Key Features:

• Sensing Distance: 2 mm (flush)

• Output Type: PNP, Normally Open (NO)

• Operating Voltage: 10–30 VDC

• Connection Type: M12 connector, 3-pin

• Housing Material: Nickel-plated brass

• Protection Rating: IP67

• Switching Frequency: Up to 2,000 Hz

• LED Status Indicator: Integrated for easy diagnostics

• Temperature Range: -25°C to +70°C

Technical Specifications:

• Model Number: NJ2-12GM40-E2

• Part Number: 282939

• Sensing Method: Inductive proximity

• Installation Type: Flush mount

• Voltage Drop: ≤ 1.5 V

• Max Load Current: 100 mA

• Current Consumption: ≤ 10 mA (no load)

• Short-Circuit Protection: Yes

• Reverse Polarity Protection: Yes

• Sensing Face Material: LCP (Liquid Crystal Polymer)

• Dimensions: Diameter: 12 mm; Length: approx. 40 mm

• Weight: Approx. 30 g

Applications:

• Factory Automation: Metal part detection on assembly lines

• Material Handling: Presence detection in conveyors

• Packaging Systems: Confirm component placement

• Robotics: End-of-arm tool sensing

• Compact Machines: Ideal for space-constrained setups

Why Choose the NJ2-12GM40-E2?

✅ Precise 2 mm flush sensing in tight spaces
✅ Reliable PNP NO output for easy integration
✅ Rugged IP67 housing resists water and dust
✅ Fast switching speed for high-performance automation
✅ Standard M12 connector for plug-and-play setup
