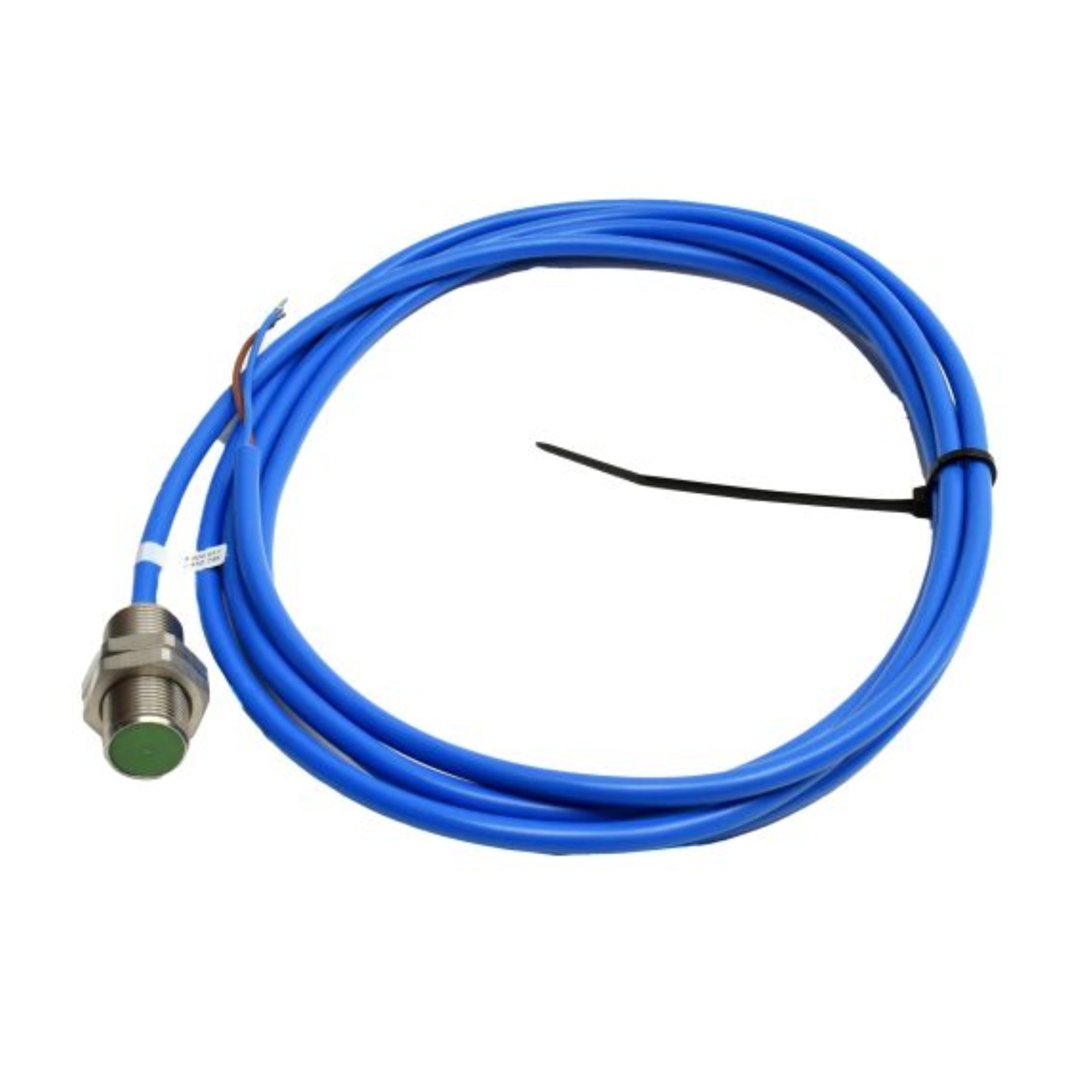

Pepperl+Fuchs NJ2-11-N-G | Inductive Sensor – 2 mm Flush, NAMUR Output, Stainless Steel Housing

Pepperl+Fuchs NJ2-11-N-G | Inductive Sensor – 2 mm Flush, NAMUR Output, Stainless Steel Housing

Overview

The Pepperl+Fuchs NJ2-11-N-G is a high-precision inductive sensor designed for reliable detection of metallic objects in industrial environments. With a 2 mm flush installation capability and NAMUR output, this sensor ensures accurate performance in applications requiring precise proximity sensing. Its stainless steel housing and IP68 protection rating provide durability and resistance to harsh conditions.

Key Features

• Sensing Distance: 2 mm (flush installation)

• Output Type: NAMUR (2-wire)

• Housing Material: Stainless steel 1.4305 / AISI 303

• Protection Rating: IP68 for robust environmental resistance

• Temperature Range: Operates between -25°C to +100°C

• Certifications: ATEX, IECEx, UL, and SIL 2 compliance

Technical Specifications

• Model Number: NJ2-11-N-G

• Switching Function: Normally closed (NC)

• Nominal Voltage (Uo): 8.2 V (Ri approx. 1 kΩ)

• Switching Frequency: 0 to 3000 Hz

• Hysteresis: 0.5% to 3.5% (typical 2%)

• Current Consumption:

  • Target Absent: Minimum 3 mA

  • Target Present: ≤ 1 mA

• Reduction Factors:

  • Aluminum (rAl): 0.4

  • Copper (rCu): 0.3

  • Stainless Steel 304 (r304): 0.85

• Connection Type: 2-meter PVC cable

• Dimensions: Length 30 mm; Diameter 14 mm

• Degree of Protection: IP68

• Standards Compliance: EN 60947-5-6:2000 (NAMUR), IEC 60947-5-6:1999

Applications

• Industrial Automation: Accurate detection of metal components in assembly lines

• Process Control: Monitoring positions of machinery parts

• Hazardous Areas: Suitable for environments requiring ATEX and IECEx compliance

• Safety Systems: Implementations up to SIL 2 as per IEC 61508 standards

Why Choose the Pepperl+Fuchs NJ2-11-N-G?

• Precision Detection: Reliable 2 mm sensing distance with flush mounting

• Durable Construction: Stainless steel housing ensures longevity in harsh conditions

• Global Certifications: Compliance with international safety and performance standards

• Versatile Integration: Compatible with NAMUR standard circuits and systems

Order Now

Available for immediate worldwide shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
