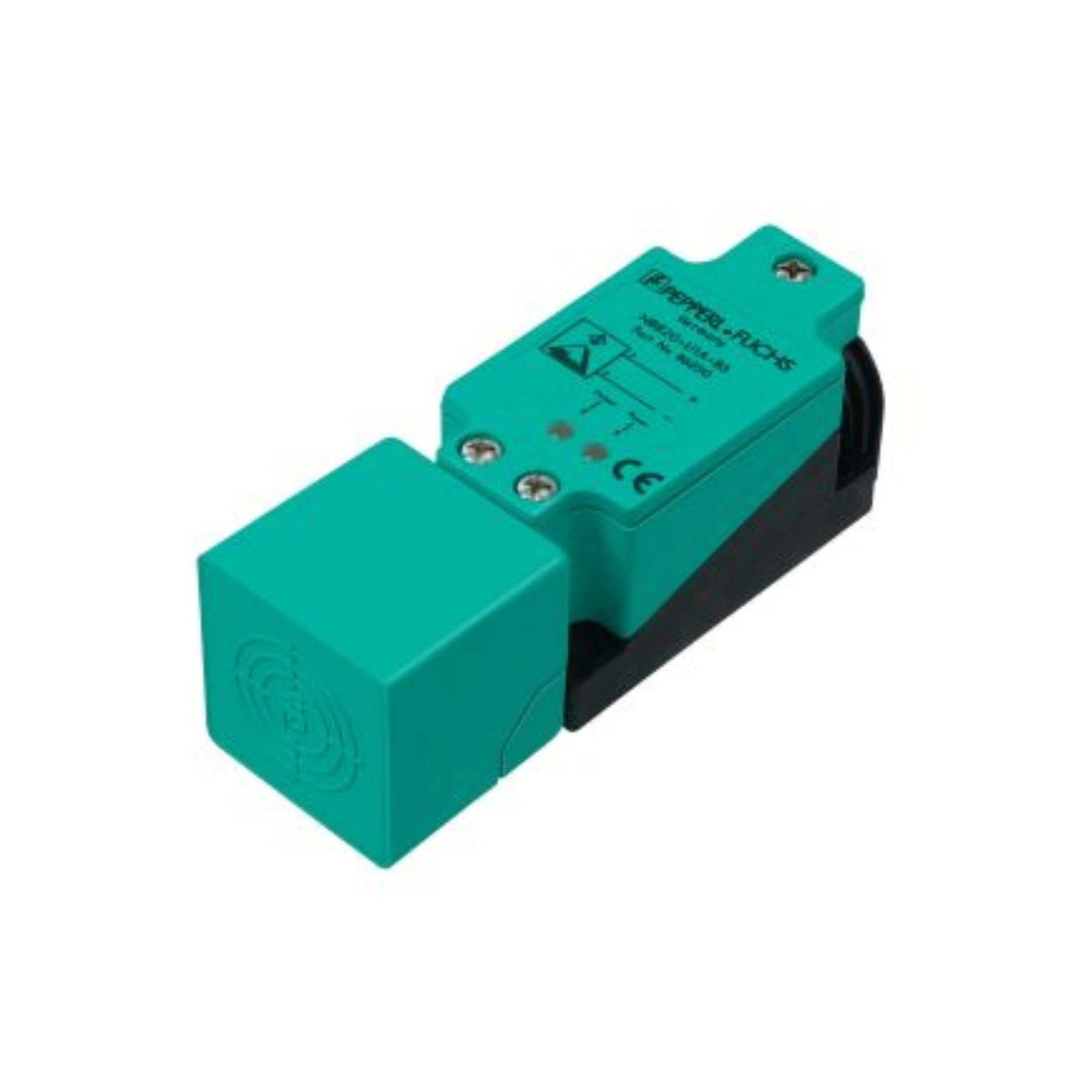

Pepperl+Fuchs NJ15-U1-E2 | 15 mm | 2-Wire AC/DC | PNP NO | IP67

Pepperl+Fuchs NJ15-U1-E2 | Inductive Sensor, 15 mm, 2-Wire AC/DC, PNP NO, IP67

Overview:

The Pepperl+Fuchs NJ15-U1-E2 is a flush-mount inductive proximity sensor with a 15 mm sensing distance and a 2-wire AC/DC configuration. Built for robust industrial applications, this sensor combines versatile voltage compatibility and IP67 protection, making it ideal for use in automated equipment, conveyors, and material handling systems.

Key Features:

• Sensing Distance: 15 mm (flush mountable)

• Output Type: PNP, Normally Open (NO)

• Operating Voltage: 20–250 V AC/DC

• Output Logic: 2-wire configuration

• Housing Type: Cylindrical (typically M30)

• Connection Type: Pre-wired cable (usually 2 m)

• Protection Rating: IP67

• Switching Frequency: 25 Hz (AC) / 500 Hz (DC)

• LED Indicator: Switching status

• Short-Circuit Protection: Yes

Technical Specifications:

• Model Number: NJ15-U1-E2

• Sensing Method: Inductive proximity

• Installation Type: Flush mounting

• Voltage Drop: ≤ 10 V

• Switching Current: 5–200 mA

• Leakage Current: ≤ 1.8 mA

• Housing Material: Plastic

• Operating Temperature: -25°C to +70°C

• Cable Length: Typically 2 m PVC

• Weight: Approx. 100 g

Applications:

• AC/DC Control Circuits: Metal object detection in flexible power environments

• Machine Tools & Equipment: Part positioning feedback

• Packaging Systems: Confirm component placement

• Material Handling: Sensing presence on conveyors

• Industrial Automation: Durable proximity detection

Why Choose the NJ15-U1-E2?

✅ Wide 15 mm sensing range with flush mounting
✅ Compatible with AC or DC power systems
✅ 2-wire PNP output simplifies wiring
✅ Sealed to IP67 for wet and dusty environments
✅ Reliable in a wide range of industrial applications

Order Now:

Available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
