Pepperl+Fuchs NJ15-M1-E2-V1 | High-Performance M30 Inductive Sensor for Precise Object Detection

Overview

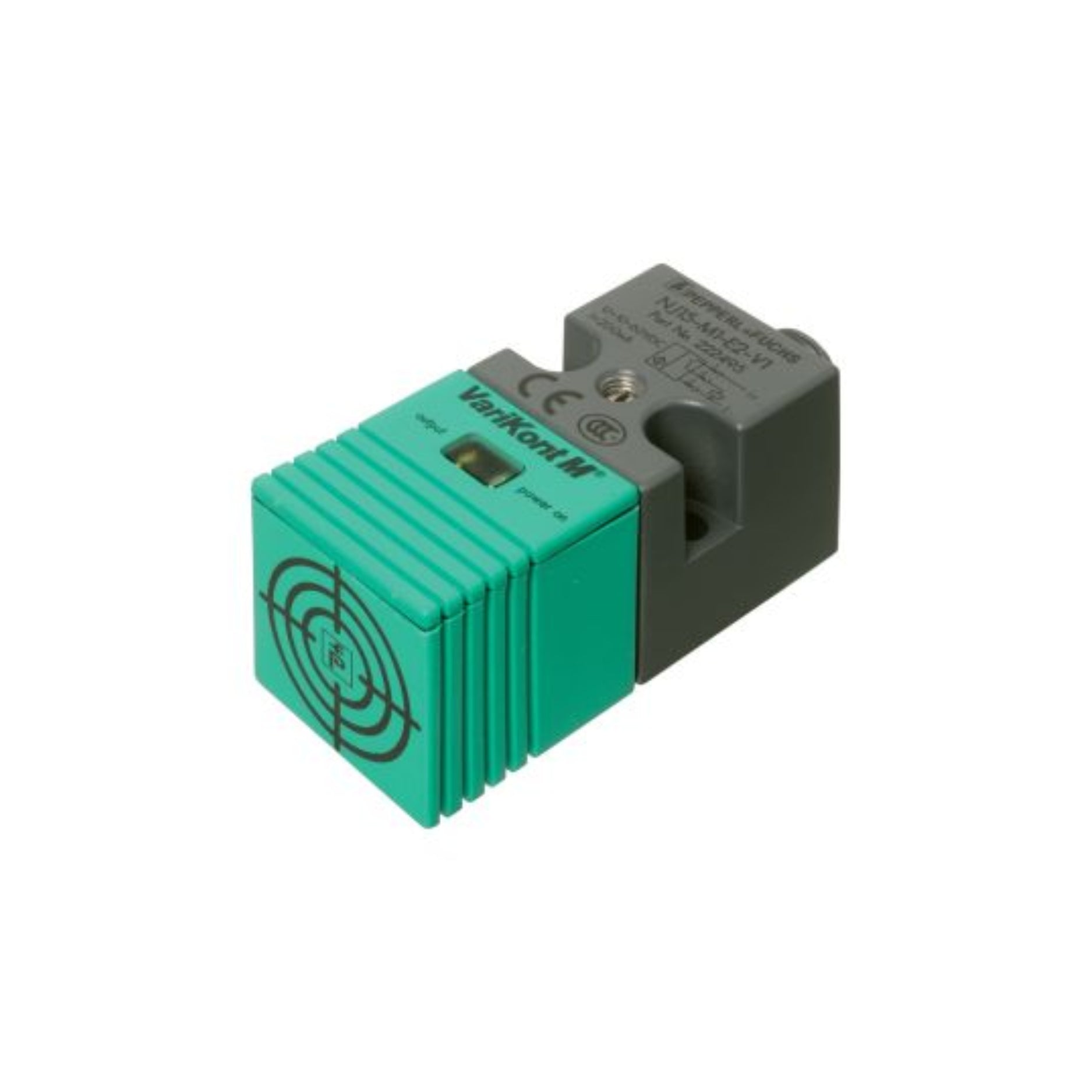

The Pepperl+Fuchs NJ15-M1-E2-V1 is a robust M30 inductive proximity sensor designed for accurate and non-contact detection of metallic objects in industrial environments. Featuring a 15 mm non-flush sensing range, PNP normally open (NO) switching output, and an IP67 protection rating, this sensor ensures reliable performance under demanding conditions. Its durable construction and versatile mounting options make it suitable for various automation applications.

Key Features

• Sensing Range: 15 mm non-flush installation, providing precise detection of metallic targets.

• Output Type: PNP switching output with normally open (NO) function, facilitating straightforward integration into control systems.

• Robust Construction: Housing made of PBT/metal with PBT sensing face, ensuring durability and resistance to industrial wear.

• High Protection Rating: IP67-rated, offering excellent protection against dust and water ingress.

• Wide Operating Voltage Range: Compatible with 10 to 60 V DC power supplies.

• LED Indicators: Green LED for power status and yellow LED for switching state, providing clear visual feedback.

• Compact Design: M30 threaded cylindrical housing with dimensions of 30 mm x 30 mm x 62 mm, facilitating easy integration into different systems.

• Connection: Equipped with an M12 x 1, 4-pin connector plug for secure and reliable connections.

Technical Specifications

• Model Number: NJ15-M1-E2-V1

• Switching Function: Normally open (NO)

• Output Type: PNP

• Rated Operating Distance (sn): 15 mm

• Installation: Non-flush

• Assured Operating Distance (sa): 0 to 12.15 mm

• Actual Operating Distance (sr): 13.5 to 16.5 mm, typically 15 mm

• Reduction Factors:

  • Aluminum (rAl): 0.39

  • Copper (rCu): 0.36

  • Stainless Steel 304 (r304): 0.73

• Operating Voltage (UB): 10 to 60 V DC

• Switching Frequency (f): 0 to 200 Hz

• Hysteresis (H): Typically 5%

• Reverse Polarity Protection: Yes

• Short-Circuit Protection: Pulsing

• Voltage Drop (Ud): ≤ 2.5 V

• Operating Current (IL): 0 to 200 mA

• No-Load Supply Current (I0): ≤ 14 mA

• Time Delay Before Availability (tv): ≤ 50 ms

• Ambient Temperature Range: -25°C to +70°C (-13°F to +158°F)

• Housing Material: PBT/metal

• Sensing Face Material: PBT

• Degree of Protection: IP67

• Connection Type: M12 x 1, 4-pin connector plug

• Dimensions:

  • Height: 30 mm

  • Width: 30 mm

  • Length: 62 mm

• Compliance:

  • Standards: EN IEC 60947-5-2

  • Approvals: CCC approval certified by China Compulsory Certification (CCC)

Applications

• Material Handling: Accurate detection of metal objects on conveyors for sorting and positioning.

• Automotive Manufacturing: Ensures precise detection of vehicle components during assembly processes.

• Packaging Industry: Verifies the presence of metallic parts in packaging lines to maintain quality control.

• Machine Tools: Monitors the position of metal workpieces and tools to enhance operational safety and efficiency.

• Heavy Equipment: Suitable for outdoor and rugged environments, detecting metal parts in construction and agricultural machinery.

Why Choose Pepperl+Fuchs NJ15-M1-E2-V1?

• Extended Sensing Distance: 15 mm non-flush sensing range allows for greater flexibility in application design.

• Enhanced Durability: Robust housing materials and high ingress protection ratings ensure longevity in harsh industrial settings.

• Wide Operating Voltage Range: Compatible with various power supplies, accommodating 10 to 60 V DC.

• High Switching Frequency: Capable of handling fast-paced applications with switching frequencies up to 200 Hz.

• Trusted Brand: Pepperl+Fuchs is renowned for high-quality sensors and automation solutions, ensuring reliability and support.
