Pepperl+Fuchs NEN6-8GM40-E2-V3 | M8 Sensor | 6 mm | PNP NO | IP67

Pepperl+Fuchs NEN6-8GM40-E2-V3 | M8 Inductive Proximity Sensor with 6 mm Sensing Distance

Overview:

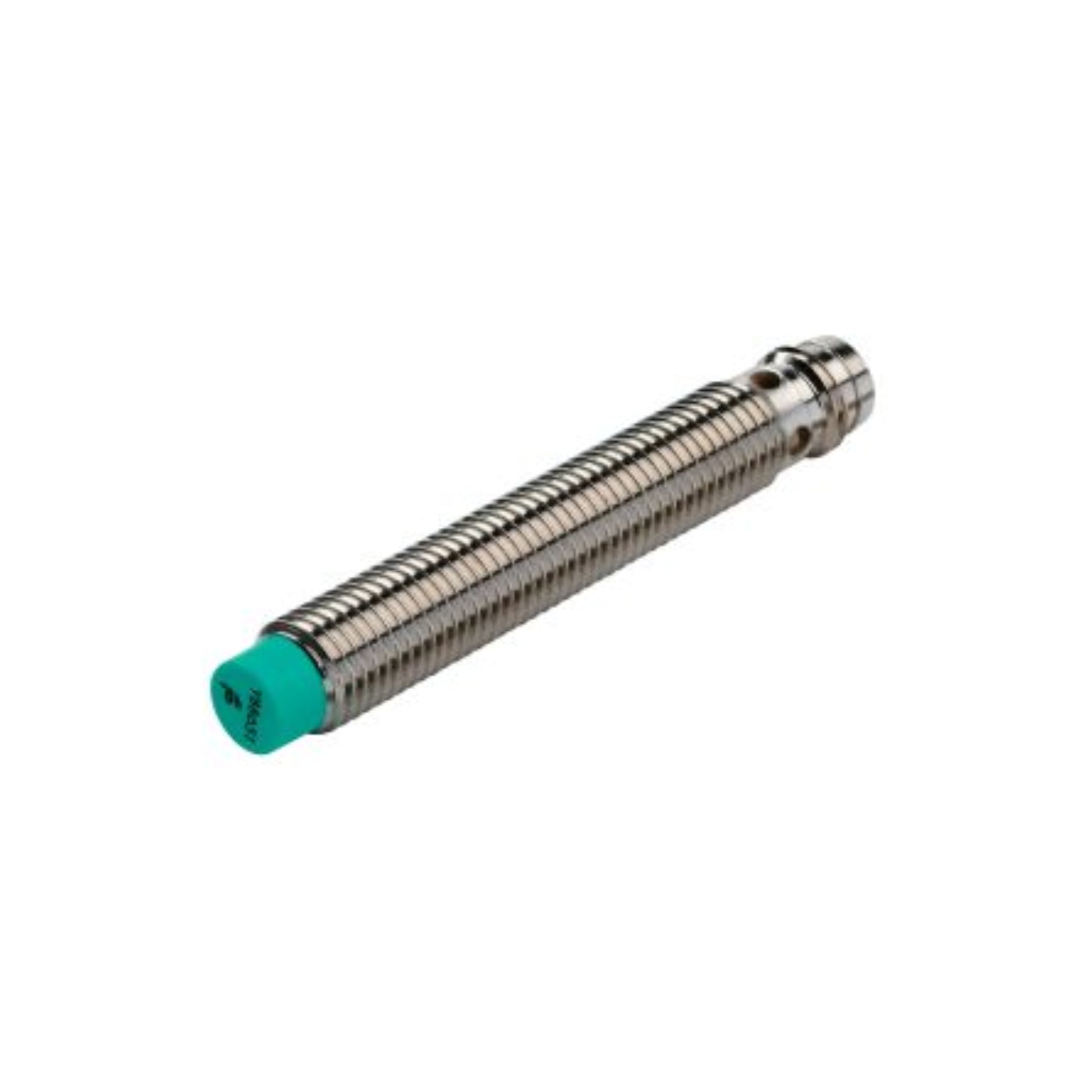

The Pepperl+Fuchs NEN6-8GM40-E2-V3 (Part No. 304615-0188) is a non-flush inductive proximity sensor ideal for metal detection in industrial automation. With a 6 mm sensing range, PNP normally open output, and an M8 nickel-plated brass housing, this sensor combines precision, durability, and easy integration for a wide range of applications.

Key Features:

• Sensing Distance: 6 mm (non-flush mount)

• Output Type: PNP, Normally Open (NO)

• Voltage Range: 5–30 VDC

• Switching Frequency: Up to 1,500 Hz

• Connection: M8 3-pin connector

• Housing Material: Nickel-plated brass

• Protection Rating: IP65 / IP66 / IP67

• Operating Temp: -25°C to +85°C

• LED Indicator: Visual switching status

Technical Specifications:

• Model Number: NEN6-8GM40-E2-V3

• Part Number: 304615-0188

• Sensing Method: Inductive

• Installation Type: Non-flush

• Current Consumption: ≤ 10 mA (no-load)

• Load Current: 0–100 mA

• Voltage Drop: ≤ 1.5 V

• Short-Circuit Protection: Yes

• Reverse Polarity Protection: Yes

• Sensing Face Material: LCP (Liquid Crystal Polymer)

• Weight: Approx. 30 g

• Dimensions: Ø8 mm x 55 mm

Applications:

• Conveyor Systems: Detect metal objects on moving lines

• Packaging Machinery: Verify part presence and positioning

• Robotics: Sensor feedback for precise placement

• Assembly Lines: Metal detection for process control

• Material Handling: Track object flow in logistics

Why Choose This Sensor?

✅ Extended 6 mm range for flexible positioning
✅ High switching frequency for rapid response
✅ Rugged housing for harsh environments
✅ Quick installation via M8 connector
✅ Triple IP protection for maximum reliability

Order Now:

In stock and ready to ship worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
