Pepperl+Fuchs NEN10-12GM50-E2-V1 | M12 Inductive Proximity Sensor | 10 mm Range

Pepperl+Fuchs NEN10-12GM50-E2-V1 | High-Precision M12 Inductive Proximity Sensor with Extended Sensing Distance

Overview

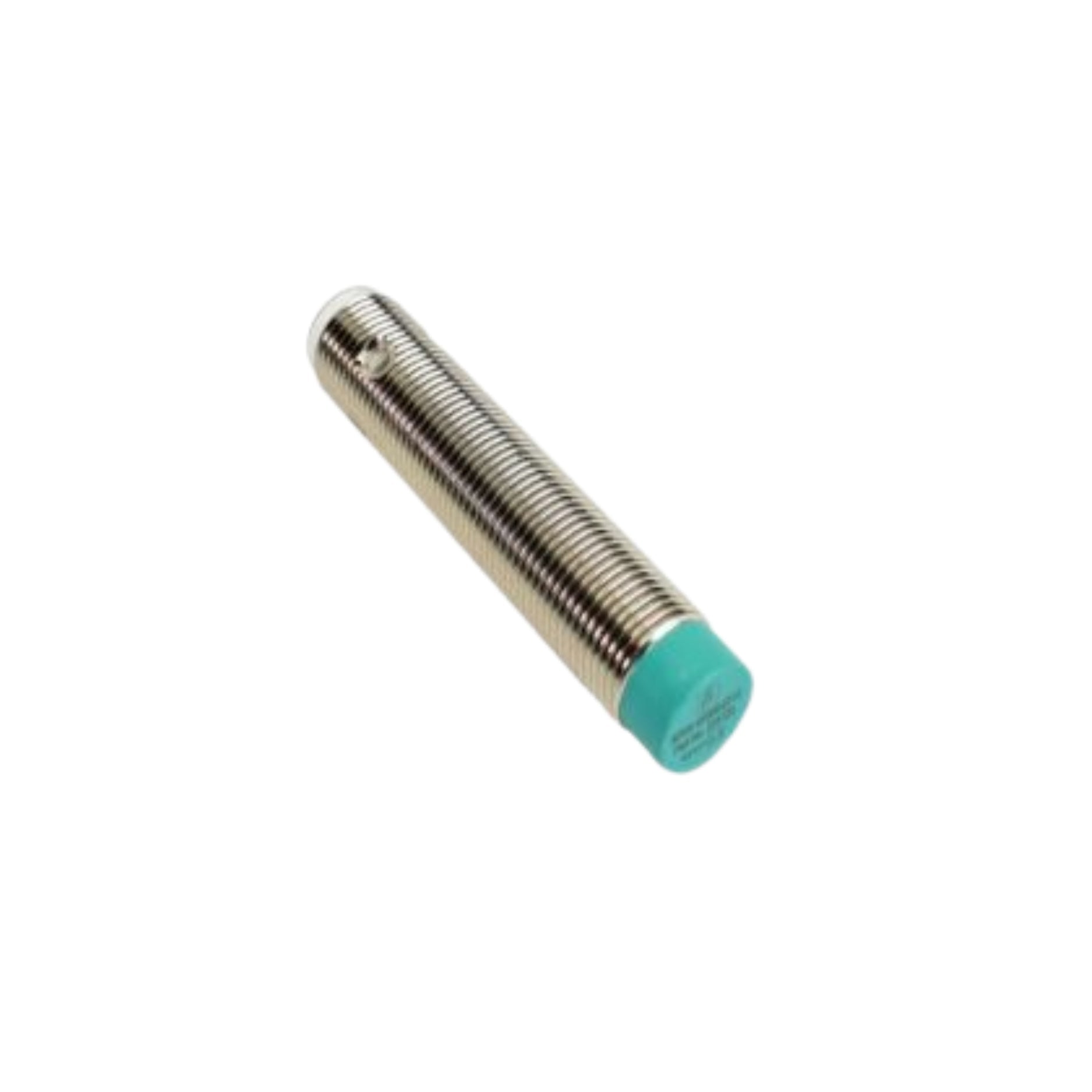

The Pepperl+Fuchs NEN10-12GM50-E2-V1 is a high-performance inductive proximity sensor designed for accurate and reliable detection of metal objects in industrial automation applications. With an extended sensing distance of 10 mm, non-flush mounting, and a robust M12 threaded housing, this sensor is ideal for environments requiring precise and consistent detection of metallic objects.

Key Features

• Sensing Distance: 10 mm rated operating distance

• Output Type: PNP, Normally Open (NO)

• Mounting: Non-flush (non-embeddable) installation

• Housing: M12 threaded, nickel-plated brass for durability

• Connection: M12 x 1 connector, 4-pin

• Operating Voltage: 10 to 30 V DC

• Switching Frequency: Up to 600 Hz

• Protection Rating: IP67, ensuring resistance to dust and water ingress

• Operating Temperature Range: -25°C to +85°C (-13°F to +185°F)

• Indicator: Yellow LED for clear switching status indication

Technical Specifications

• Model Number: NEN10-12GM50-E2-V1

• Series: Standard Series

• Switching Function: Normally Open (NO)

• Output Type: PNP

• Rated Operating Distance (sn): 10 mm

• Assured Operating Distance (sa): 0 to 8.1 mm

• Reduction Factors:

  • Aluminum (rAl): 0.45

  • Copper (rCu): 0.4

  • Stainless Steel (r304): 0.75

  • Brass (rBrass): 0.45

• Operating Voltage (UB): 10 to 30 V DC

• Switching Frequency (f): 0 to 600 Hz

• Hysteresis (H): 0.06 to 1 mm

• Reverse Polarity Protection: Yes

• Short-Circuit Protection: Pulsing

• Voltage Drop (Ud): ≤ 2 V

• Operating Current (IL): 0 to 200 mA (above 70°C max. 150 mA)

• Off-State Current (Ir): ≤ 10 µA

• No-Load Supply Current (I0): ≤ 15 mA

• Time Delay Before Availability (tv): ≤ 50 ms

• Switching State Indicator: Yellow LED

• Connection Type: M12 x 1 connector, 4-pin

• Housing Material: Nickel-plated brass

• Sensing Face Material: PBT

• Degree of Protection: IP67

• Dimensions:

  • Length: 60 mm

  • Diameter: 12 mm

• Tightening Torque: ≤ 10 Nm

• Standards Compliance: EN IEC 60947-5-2

• Approvals:

  • UL: cULus Listed, General Purpose

  • CCC: Not required for products rated ≤36 V

Applications

• Industrial Automation: Precise detection of metallic components in assembly lines

• Robotics: Position sensing and end-of-arm tooling feedback

• Packaging Machinery: Monitoring the presence and position of metal parts

• Material Handling: Detecting metal objects on conveyors and chutes

Why Choose Pepperl+Fuchs NEN10-12GM50-E2-V1?

• Extended Sensing Distance: 10 mm range allows for greater flexibility in application design

• Robust Construction: Durable nickel-plated brass housing suitable for industrial environments

• Compact Size: M12 threaded design allows for installation in space-constrained areas

• Reliable Performance: High switching frequency up to 600 Hz for dynamic applications

• Easy Integration: Standard M12 connector facilitates quick and secure connections

Order Now

Available for immediate shipping worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
