Pepperl+Fuchs NEB12-18GM50-E2-V1 – 12mm Inductive Sensor, PNP NO, 10-30V DC, M12

Pepperl+Fuchs NEB12-18GM50-E2-V1 – High-Range Inductive Sensor for Metal Detection

Overview

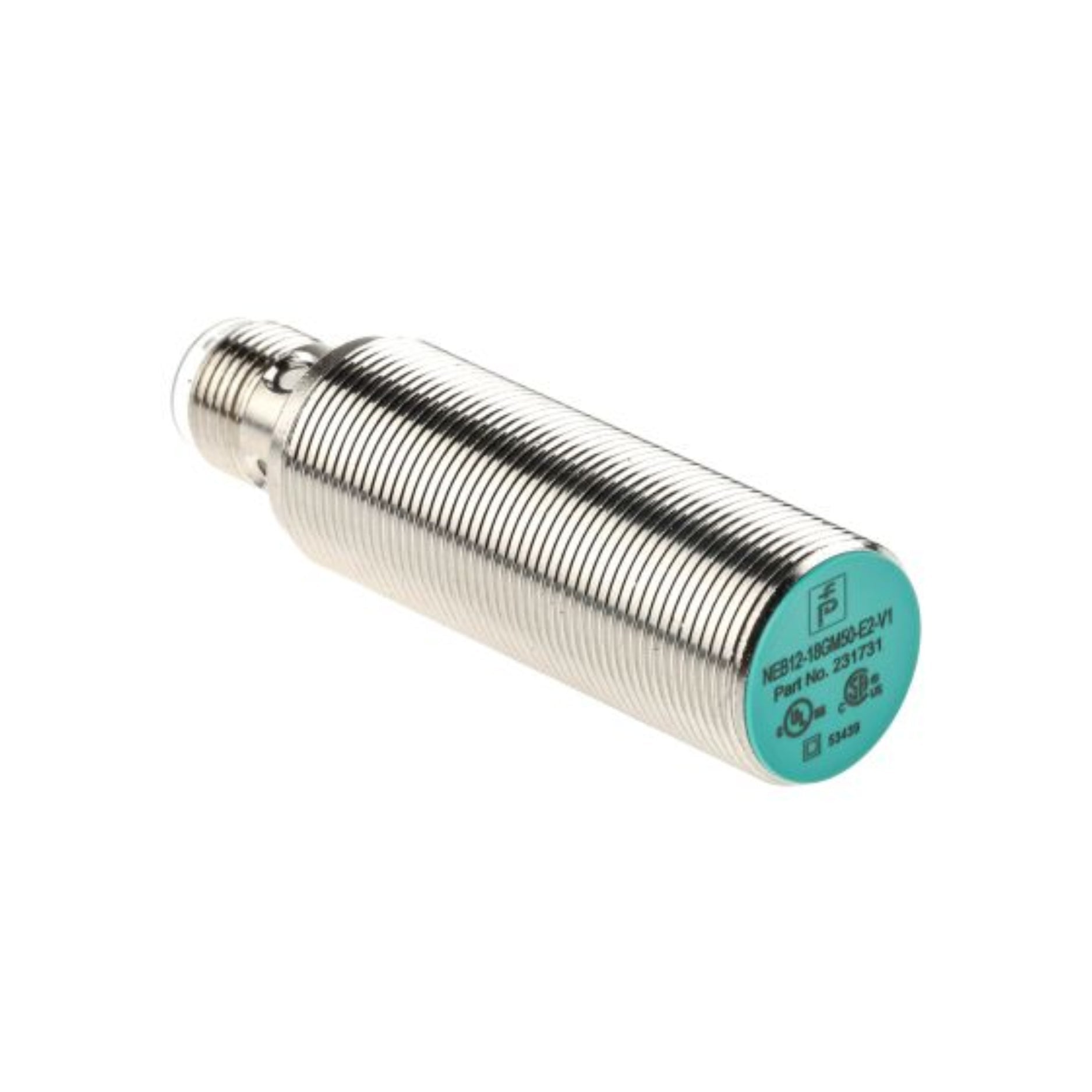

The NEB12-18GM50-E2-V1 from Pepperl+Fuchs is a rugged inductive proximity sensor offering 12mm sensing range in a quasi-flush mounting design. It features a PNP normally open output, standard M12 connector, and a durable brass housing, ideal for demanding industrial applications.

Key Features

• Sensing Distance: 12mm (quasi-flush)

• Output Type: PNP Normally Open (NO)

• Operating Voltage: 10–30V DC

• Switching Frequency: Up to 500 Hz

• Connection: 4-pin M12 connector

• Housing Material: Nickel-plated brass

• Protection Rating: IP67 – water and dust resistant

• Temperature Range: -25°C to +85°C

• LED Indicator: Yellow LED for switching state

Technical Specifications

• Model: NEB12-18GM50-E2-V1

• Part Number: 231731

• Mounting Type: Quasi-flush (semi-embedded)

• Current Rating: Max. 200 mA

• Voltage Drop: ≤ 2V

• Short-Circuit & Overload Protected: Yes

• Reverse Polarity Protected: Yes

• Housing Diameter: M18 x 50 mm

Applications

• Factory Automation – Accurate detection in production lines

• Conveyors & Packaging – Metal part presence/absence detection

• OEM Systems – Quick setup with M12 connector and large sensing distance

• Machinery Positioning – Ideal for medium-range detection needs

Why Choose NEB12-18GM50-E2-V1?

• Extended 12mm range with reliable switching

• Durable metal housing for harsh environments

• Quick installation with M12 connector

• Reliable sensing even in dirty or wet conditions

Order Now

The NEB12-18GM50-E2-V1 sensor is in stock and ships quickly.
