Pepperl+Fuchs NBN8-18GM50-E2-V1 | 8 mm Non-Flush Inductive

Pepperl+Fuchs NBN8-18GM50-E2-V1 | 8 mm PNP Inductive Proximity Sensor with M12 Connector

Overview

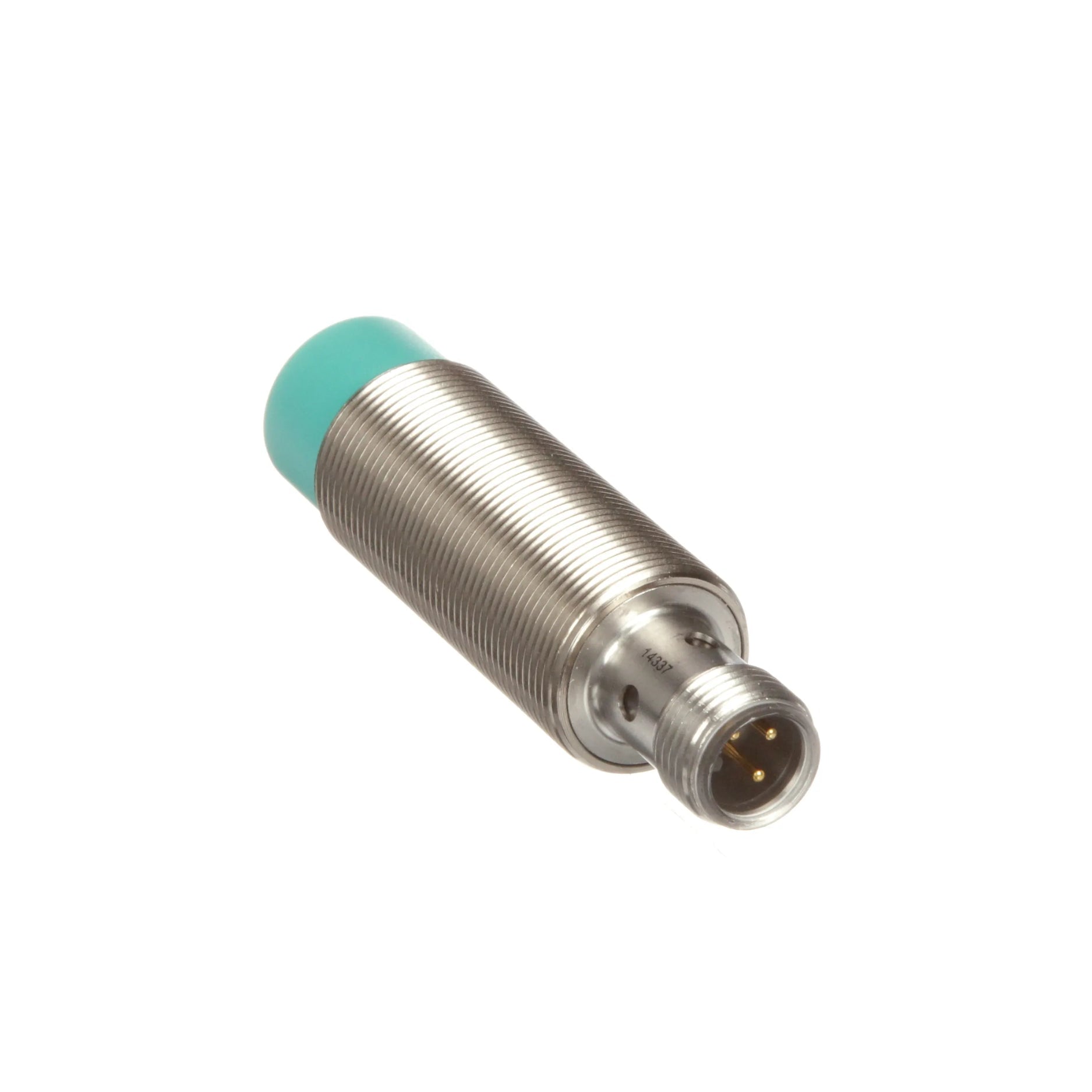

The Pepperl+Fuchs NBN8-18GM50-E2-V1 is a robust inductive proximity sensor designed for non-flush installation, offering an 8 mm sensing distance. Built with a nickel-plated brass housing, this sensor is perfect for detecting metallic targets in demanding industrial environments. It delivers a PNP normally open (NO) switching output, ideal for integration into 24 V DC control systems.

With a wide operating voltage, extended temperature range (-40 to +85 °C), and IP65/IP66/IP67/IP68 protection, the NBN8-18GM50-E2-V1 offers long-lasting performance in harsh conditions.

Key Features

• Sensing Distance: 8 mm (non-flush mount)

• Output Type: PNP, normally open (NO)

• Fast Switching: Up to 1,650 Hz switching frequency

• Connector Type: M12 × 1, 4-pin plug

• Durable Housing: Brass, white bronze coated

• Protection Class: IP65 / IP66 / IP67 / IP68

• LED Status Indicator: Yellow multihole LED for switching state

Technical Specifications

• Model: NBN8-18GM50-E2-V1

• Part Number: 084197

• Installation Type: Non-flush

• Assured Operating Distance: 0 to 6.48 mm

• Reduction Factors:

  • Aluminum: 0.44

  • Copper: 0.42

  • Stainless Steel 304: 0.76

  • Brass: 0.52

• Output Polarity: DC

• Operating Voltage: 5 to 36 V DC

• Switching Frequency: 0–1,650 Hz

• Hysteresis: Typically 5% of sensing distance

• Voltage Drop: ≤ 1 V

• Operating Current: 0 to 200 mA

• Off-State Current: ≤ 20 μA

• No-Load Supply Current: ≤ 10 mA

• Short-Circuit Protection: Yes (pulsing)

• Reverse Polarity Protection: Yes

• Startup Delay: ≤ 10 ms

• Mean Time to Dangerous Failure (MTTFd): 960 years

• Mission Time: 20 years

• Standards Compliance: EN IEC 60947-5-2

• Certifications: UL/cULus listed, DNVGL marine approval

Environmental Specifications

• Operating Temperature Range: -40 to +85 °C

• Storage Temperature Range: -40 to +85 °C

• Degree of Protection: IP65 / IP66 / IP67 / IP68

• Connection Type: M12 × 1 connector, 4-pin

Mechanical Specifications

• Housing Material: Brass, white bronze coated

• Sensing Face Material: LCP (Liquid Crystal Polymer)

• Dimensions:

  • Diameter: 18 mm

  • Length: 50 mm

• Included Accessories: 2 x hex nuts

Applications

• Factory Automation – Detecting machine components or positions

• Material Handling – Non-contact detection of metal parts on conveyors

• Automotive Production – Durable sensor solution for robotic lines

• Packaging Equipment – Detects metal presence or position during rapid operations

Why Choose the NBN8-18GM50-E2-V1?

• Long sensing range with non-flush mounting flexibility

• High-speed switching up to 1650 Hz

• Rugged IP68-rated housing for harsh environments

• Wide voltage and current range compatibility

• Tested for long service life and reliability
