Pepperl+Fuchs NBN40-U1-A2

$218.00

Condition: New

Warranty: 1 Year

In Stock

+10 Available

We deliver worldwide

sales@ddpartssolution.com

📞 +1 (689) 275-3558

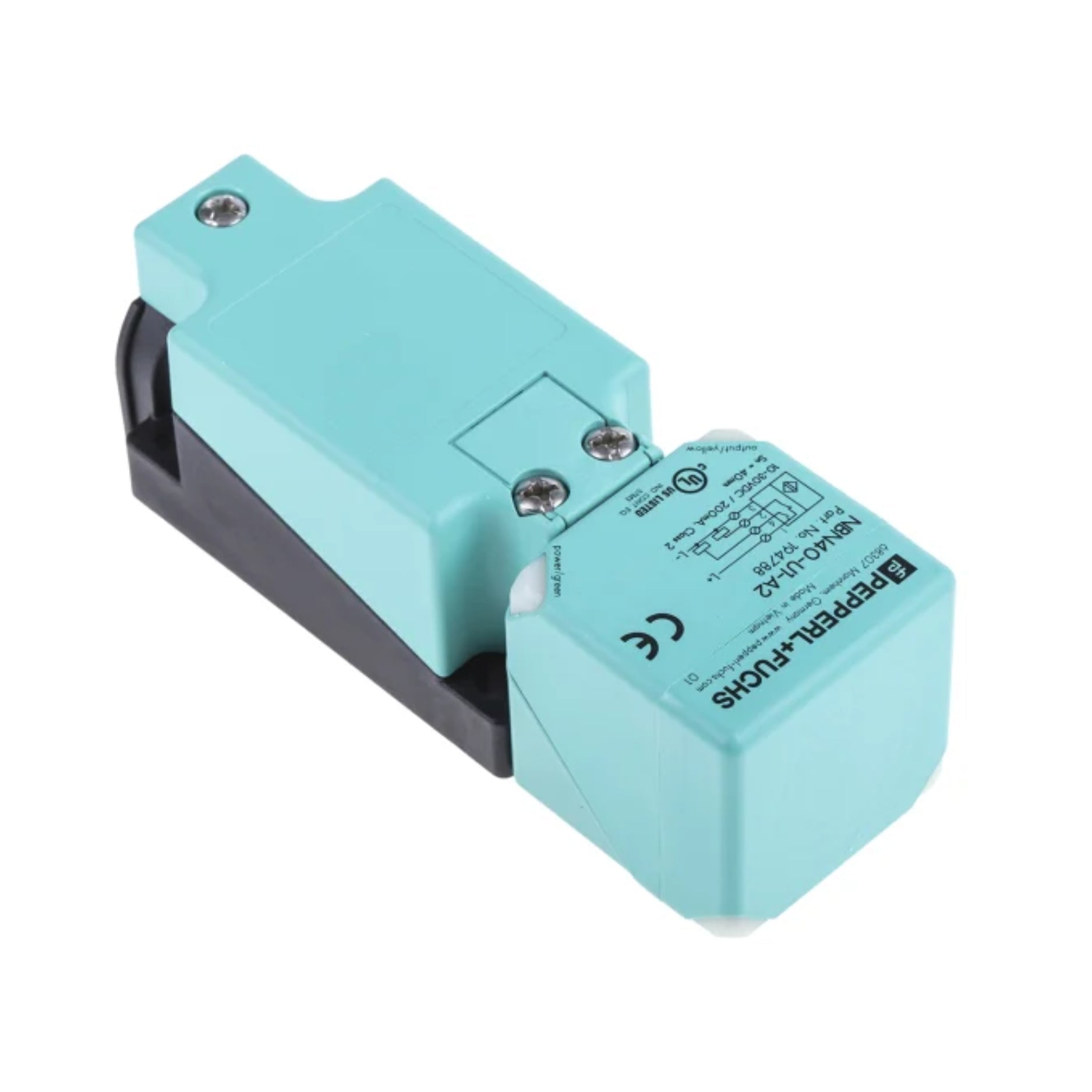

Pepperl+Fuchs NBN40-U1-A2 – Heavy-Duty Long-Range Inductive Sensor

Overview

The NBN40-U1-A2 is a high-range inductive proximity sensor from Pepperl+Fuchs, offering a 40mm sensing distance in a rugged, easy-to-mount housing. Designed for non-flush installation, it features a complementary PNP output (NO + NC), rotatable sensor head, and IP68/IP69K protection – making it perfect for demanding industrial environments.

Key Features

  • Sensing Range: 40mm (non-flush)

  • Output Type: Complementary PNP (Normally Open + Normally Closed)

  • Voltage Range: 10–30V DC

  • Switching Frequency: 180 Hz

  • Connection Type: Screw terminals (up to 2.5 mm²)

  • Housing Material: PA and metal base with epoxy coating

  • Protection Rating: IP68 / IP69K – dust-tight and washdown-proof

  • LED Indicators:

    • Green: Power

    • Yellow: Switching state

  • Sensor Head: Rotatable and visible from all angles (360° visibility with 4 LEDs)

  • Operating Temp: -25°C to +85°C

Technical Specifications

  • Model: NBN40-U1-A2

  • Part Number: 194788

  • Installation Type: Non-flush

  • Polarity & Short-Circuit Protected: Yes

  • Output Current: ≤ 200 mA

  • Voltage Drop: ≤ 2 V

  • Mounting Orientation: Flexible with rotatable head

  • Approvals: cULus Listed (General Purpose), CE, RoHS

Applications

  • Material Handling Systems – Detecting metal objects on conveyors

  • Food & Beverage Industry – Withstands washdown and aggressive cleaning

  • Mobile Equipment & Outdoor Installations – High visibility and rugged design

  • Automation Panels – Long-range detection in limited access areas

Why Choose NBN40-U1-A2?

  • Extended 40mm detection range

  • Dual output (NO + NC) for logic flexibility

  • 360° LED visibility and rotatable sensor head for fast troubleshooting

  • Built for harsh conditions – chemical, dust, and moisture resistant

Order Now

The Pepperl+Fuchs NBN40-U1-A2 is ready for immediate shipment.
