Pepperl+Fuchs NBN3-F31-E8-V1 | Inductive Sensor | 3 mm Range | Dual PNP NO Outputs

Pepperl+Fuchs NBN3-F31-E8-V1 | High-Precision Inductive Sensor for Industrial Automation

Overview

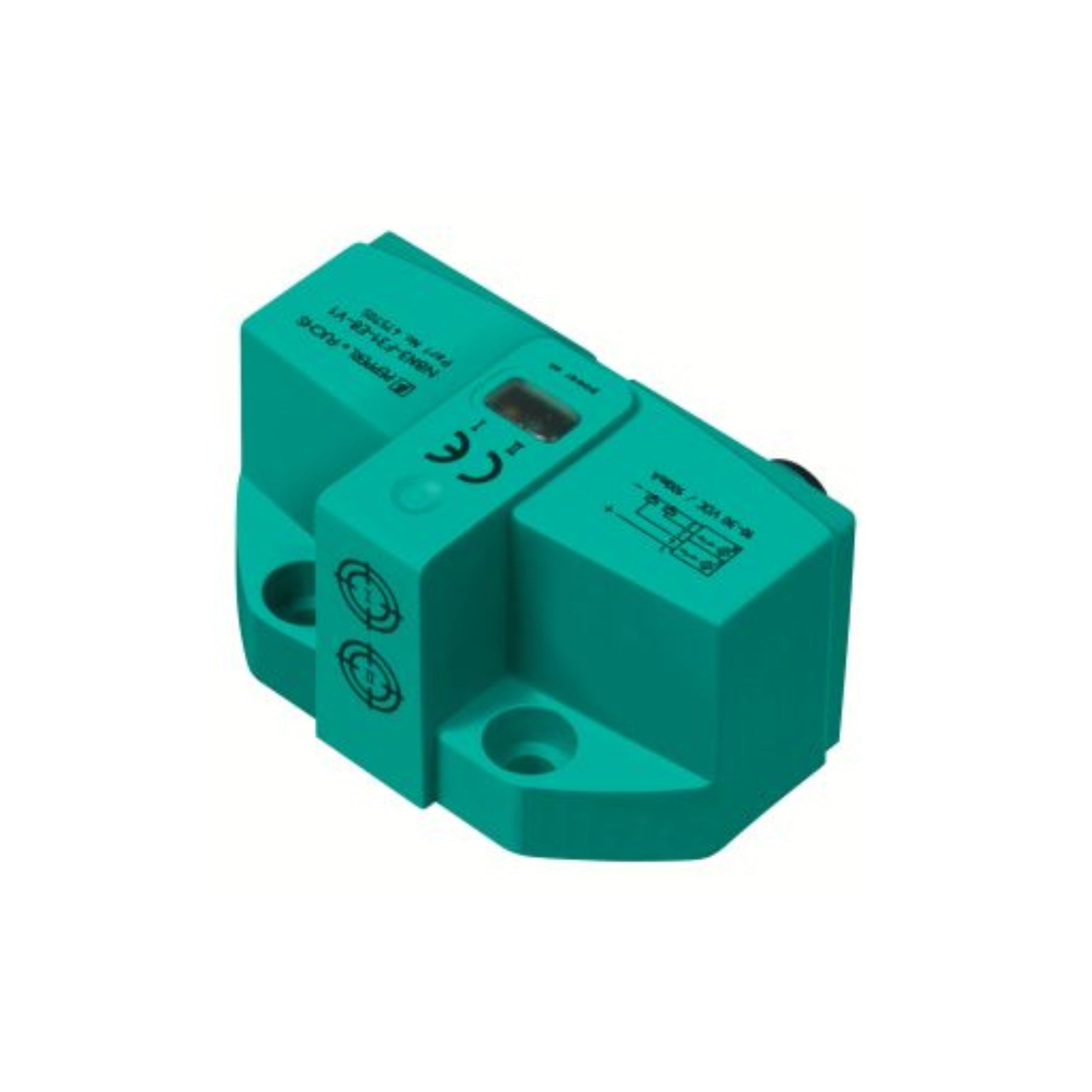

The Pepperl+Fuchs NBN3-F31-E8-V1 is a compact inductive proximity sensor designed for precise detection of metallic objects in industrial environments. Featuring a 3 mm flush sensing range, dual PNP normally open (NO) outputs, and robust construction, this sensor ensures reliable performance in various automation applications. Its durable housing and high ingress protection make it suitable for challenging conditions.

Key Features

• Sensing Range: 3 mm flush installation, providing accurate detection of metallic targets.

• Output Type: Dual PNP switching outputs with normally open (NO) function, facilitating versatile integration into control systems.

• Compact Design: Dimensions of 65 mm (width) x 33.5 mm (height) x 36 mm (length), allowing installation in space-constrained applications.

• Robust Construction: Housing made of PBT with metal connector housing, ensuring durability and resistance to industrial wear.

• High Protection Rating: IP67-rated, offering excellent protection against dust and water ingress.

• LED Indicators: Green LED for power status and yellow LED for switching state, providing clear visual feedback.

• Wide Operating Voltage: Compatible with 10 to 30 V DC power supplies, accommodating various industrial power standards.

Technical Specifications

• Model Number: NBN3-F31-E8-V1

• Switching Function: 2 x normally open (NO)

• Output Type: PNP

• Rated Operating Distance (sn): 3 mm

• Installation: Flush mountable

• Operating Voltage (UB): 10 to 30 V DC

• Switching Frequency (f): 0 to 500 Hz

• Hysteresis (H): Typically 5%

• Reverse Polarity Protection: Yes, on all connections

• Short-Circuit Protection: Pulsing

• Voltage Drop (Ud): ≤ 3 V

• Operating Current (IL): 0 to 100 mA

• Off-State Current (Ir): 0 to 0.5 mA, typically 0.1 µA at 25°C

• No-Load Supply Current (I0): ≤ 25 mA

• Ambient Temperature Range: -25°C to +70°C (-13°F to +158°F)

• Housing Material: PBT (Polybutylene Terephthalate)

• Connector Housing: Metal

• Degree of Protection: IP67

• Connection Type: 4-pin, M12 x 1 connector

• Dimensions:

  • Height: 33.5 mm

  • Width: 65 mm

  • Length: 36 mm

• Compliance:

  • Standards: EN IEC 60947-5-2

  • Approvals: cULus Listed for General Purpose

Applications

• Material Handling: Accurate detection of metal objects on conveyors for sorting and positioning.

• Automotive Manufacturing: Ensures precise detection of vehicle components during assembly processes.

• Packaging Industry: Verifies the presence of metallic parts in packaging lines to maintain quality control.

• Machine Tools: Monitors the position of metal workpieces and tools to enhance operational safety and efficiency.

• Robotics: Provides feedback on metallic part positioning for automated robotic operations.

Why Choose Pepperl+Fuchs NBN3-F31-E8-V1?

• Dual Output Flexibility: Two normally open PNP outputs allow for versatile control system integration.

• Compact and Durable: Small form factor with robust materials ensures longevity in demanding environments.

• High Switching Frequency: Capable of handling fast-paced applications with switching frequencies up to 500 Hz.

• Easy Installation: Flush mountable design with standard M12 connector simplifies setup and maintenance.

• Trusted Brand: Pepperl+Fuchs is renowned for high-quality sensors and automation solutions, ensuring reliability and support.

Order Now

Available for immediate shipping worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
