Pepperl+Fuchs NBN12-18GM50-E2-V1 | M18 Inductive Proximity Sensor | 12 mm Range

Pepperl+Fuchs NBN12-18GM50-E2-V1 | High-Precision M18 Inductive Proximity Sensor with Extended Sensing Distance

Overview

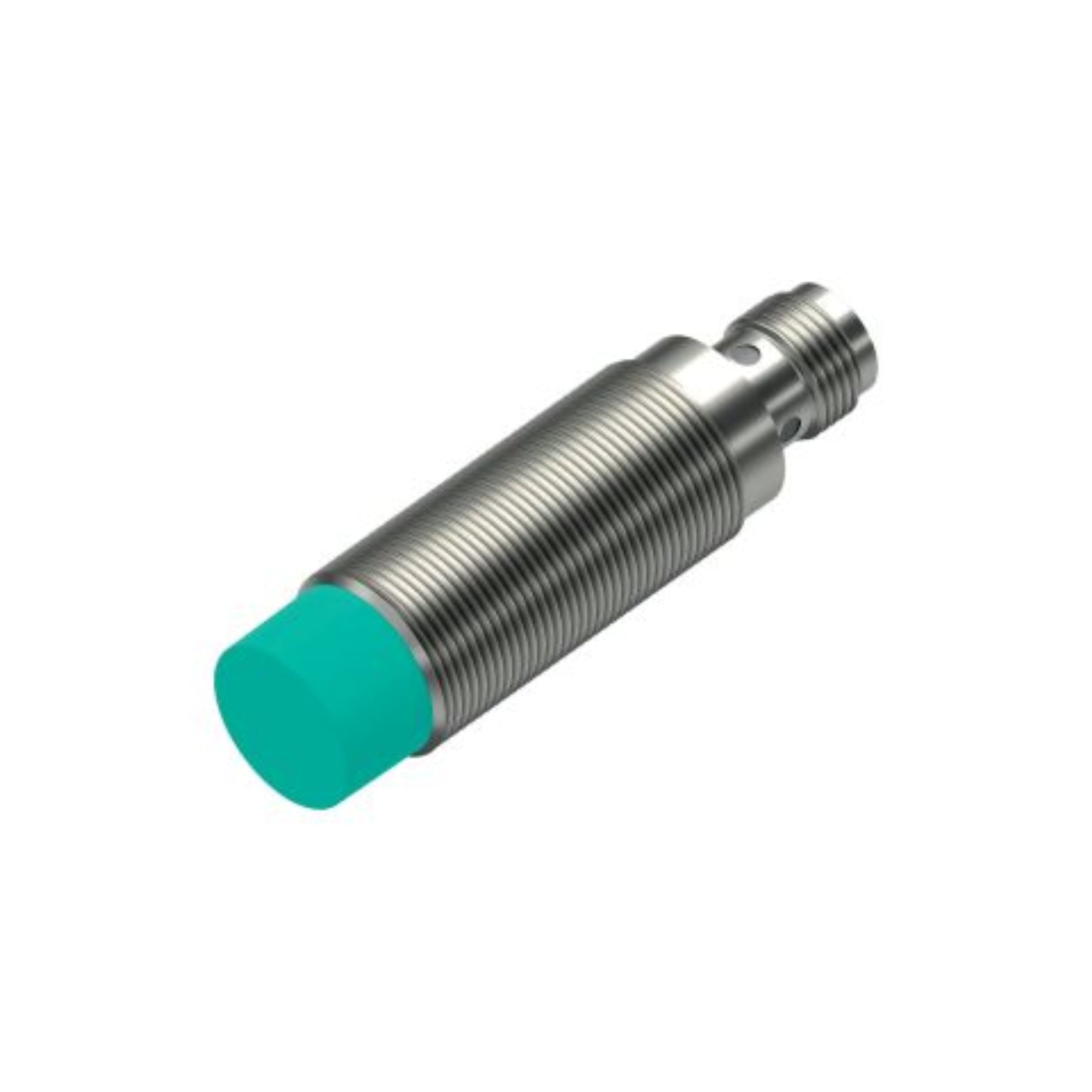

The Pepperl+Fuchs NBN12-18GM50-E2-V1 is a high-performance inductive proximity sensor designed for accurate and reliable detection of metal objects in industrial automation applications. With an extended sensing distance of 12 mm, non-flush mounting, and a robust M18 threaded housing, this sensor is ideal for environments requiring precise and consistent detection of metallic objects.

Key Features

• Sensing Distance: 12 mm rated operating distance

• Output Type: PNP, Normally Open (NO)

• Mounting: Non-flush (non-embeddable) installation

• Housing: M18 threaded, white bronze-coated brass for durability

• Connection: 3-pin M12 connector

• Operating Voltage: 5 to 36 V DC

• Switching Frequency: Up to 1,300 Hz

• Protection Rating: IP65/IP66/IP67/IP68, ensuring resistance to dust and water ingress

• Operating Temperature Range: -40°C to +85°C (-40°F to +185°F)

• Indicator: Yellow multihole LED for clear switching status indication

Technical Specifications

• Model Number: NBN12-18GM50-E2-V1

• Series: Standard Series

• Switching Function: Normally Open (NO)

• Output Type: PNP

• Rated Operating Distance (sn): 12 mm

• Assured Operating Distance (sa): 0 to 9.72 mm

• Reduction Factors:

  • Aluminum (rAl): 0.49

  • Copper (rCu): 0.46

  • Stainless Steel (r304): 0.75

  • Brass (rBrass): 0.55

• Operating Voltage (UB): 5 to 36 V DC

• Switching Frequency (f): 0 to 1,300 Hz

• Hysteresis (H): Typically 5%

• Reverse Polarity Protection: Yes

• Short-Circuit Protection: Pulsing

• Voltage Drop (Ud): ≤ 1 V

• Operating Current (IL): 0 to 200 mA

• Off-State Current (Ir): Max. 20 µA

• No-Load Supply Current (I0): ≤ 10 mA

• Time Delay Before Availability (tv): ≤ 10 ms

• Switching State Indicator: Yellow multihole LED

• Connection Type: M12 x 1, 3-pin connector

• Housing Material: White bronze-coated brass

• Sensing Face Material: PBT, green

• Degree of Protection: IP65/IP66/IP67/IP68

• Dimensions:

  • Length: 66 mm

  • Diameter: 18 mm

• Tightening Torque: ≤ 30 Nm

• Standards Compliance: EN IEC 60947-5-2

• Approvals:

  • UL: cULus Listed, General Purpose, Class 2 Power Source

  • CCC: Not required for products rated ≤36 V

  • Marine Approval: DNVGL TAA00003AK

Applications

• Industrial Automation: Precise detection of metallic components in assembly lines

• Robotics: Position sensing and end-of-arm tooling feedback

• Packaging Machinery: Monitoring the presence and position of metal parts

• Material Handling: Detecting metal objects on conveyors and chutes

Why Choose Pepperl+Fuchs NBN12-18GM50-E2-V1?

• Extended Sensing Distance: 12 mm range allows for greater flexibility in application design

• Robust Construction: Durable white bronze-coated brass housing suitable for industrial environments

• Compact Size: M18 threaded design allows for installation in space-constrained areas

• Reliable Performance: High switching frequency up to 1,300 Hz for dynamic applications

• Easy Integration: Standard M12 connector facilitates quick and secure connections

Order Now

Available for immediate shipping worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
