Pepperl+Fuchs NBB5-18GM20-E2-V1

Pepperl+Fuchs NBB5-18GM20-E2-V1 | Inductive Sensor, M18, 5 mm, PNP NO, IP67

Overview:

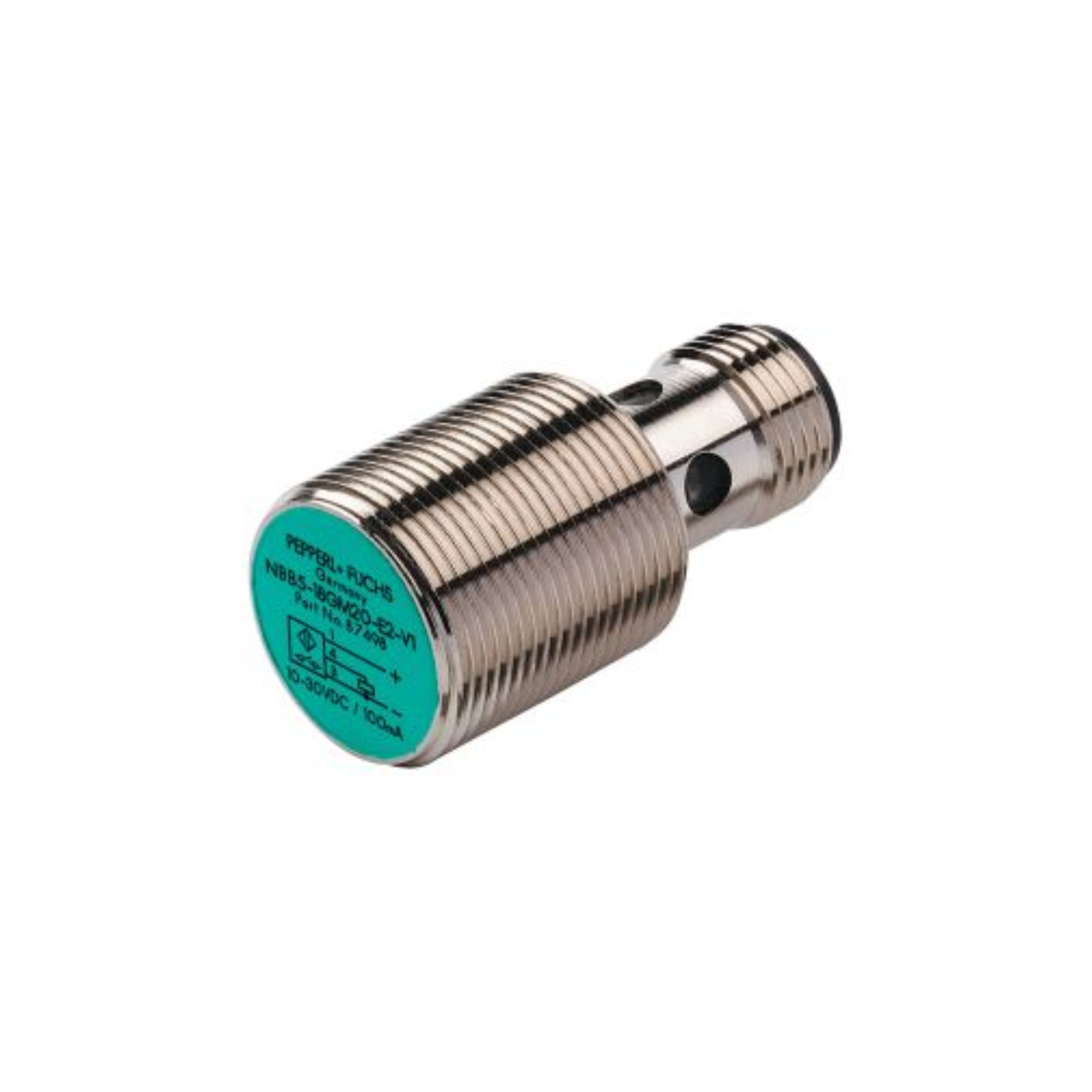

The Pepperl+Fuchs NBB5-18GM20-E2-V1 (Part No. 087498) is a flush-mount inductive proximity sensor with a 5 mm sensing range in a standard M18 cylindrical housing. Featuring a PNP normally open output, M12 connector, and IP67 protection, it ensures robust and reliable metal detection in industrial environments.

Key Features:

• Sensing Distance: 5 mm (flush mount)

• Output Type: PNP, Normally Open (NO)

• Operating Voltage: 10–30 VDC

• Connection Type: M12, 4-pin male connector

• Housing Material: Nickel-plated brass

• Sensing Face Material: Plastic (LCP)

• Protection Class: IP67

• Switching Frequency: Up to 500 Hz

• LED Indicator: Visual status of switching operation

• Operating Temperature: -25°C to +70°C

Technical Specifications:

• Model Number: NBB5-18GM20-E2-V1

• Part Number: 087498

• Sensor Type: Inductive proximity

• Installation Type: Flush mounting

• Voltage Drop: ≤ 3 V

• Max Load Current: 200 mA

• No-Load Current Consumption: ≤ 15 mA

• Short-Circuit Protection: Yes

• Reverse Polarity Protection: Yes

• Dimensions: M18 x 50 mm

• Weight: Approx. 80 g

Applications:

• Assembly Lines: Detect small metal components

• Conveyor Systems: Monitor object flow and presence

• Machine Tools: Position sensing in compact setups

• OEM Equipment: Easy integration with standard M12 I/O

• Packaging Machinery: Non-contact part detection

Why Choose the NBB5-18GM20-E2-V1?

✅ Reliable 5 mm flush sensing in an M18 housing
✅ PNP NO output for standard PLC compatibility
✅ Quick-connect M12 interface simplifies installation
✅ IP67-rated durability for demanding environments
✅ Compact, rugged, and industry-ready

Order Now:

Available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
