Pepperl+Fuchs NBB4-12GM50-E3-V1 | M12 Inductive Proximity Sensor | 4 mm Range

Pepperl+Fuchs NBB4-12GM50-E3-V1 | High-Precision M12 Inductive Proximity Sensor with Flush Mounting

Overview

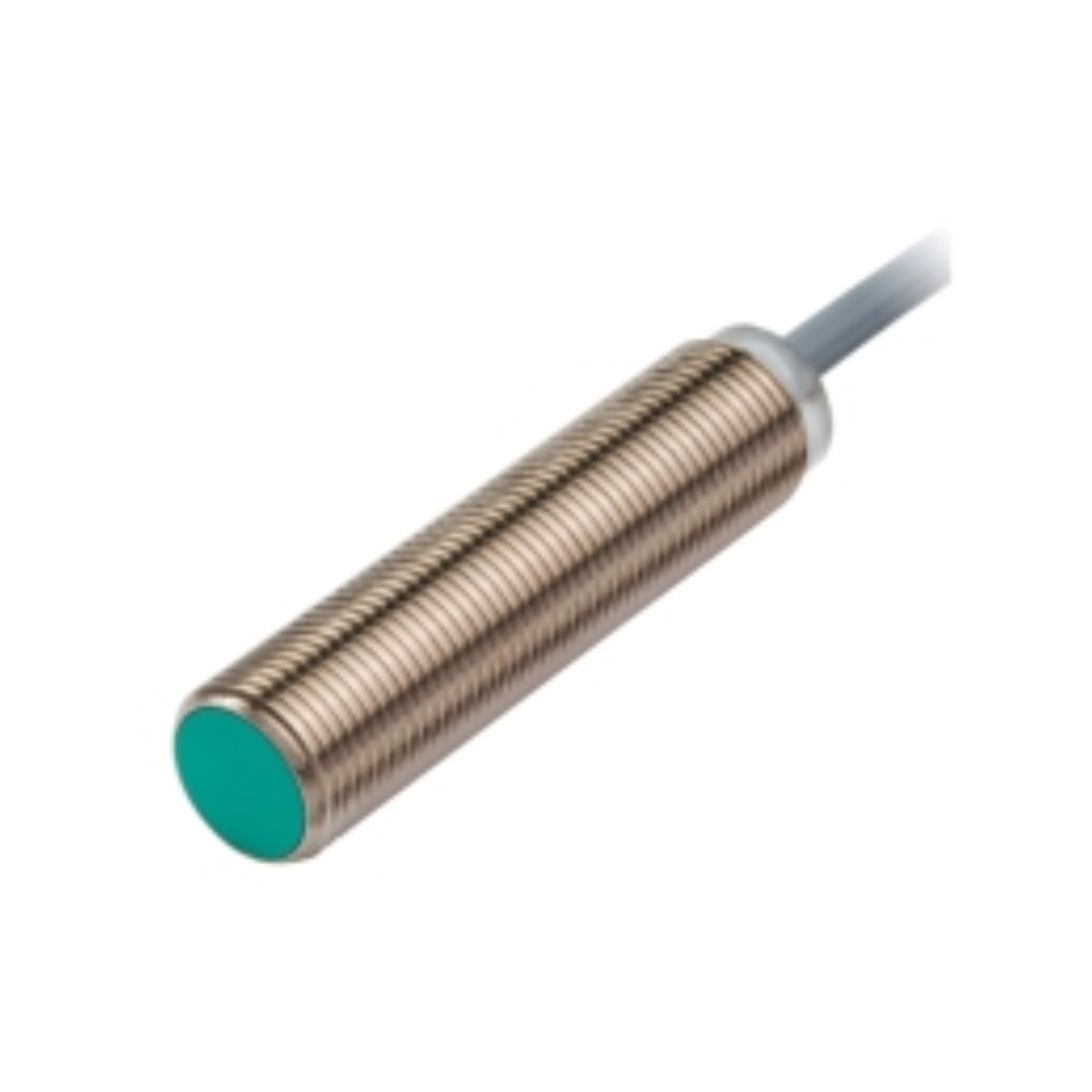

The Pepperl+Fuchs NBB4-12GM50-E3-V1 is a high-performance inductive proximity sensor designed for accurate and reliable detection of metal objects in industrial automation applications. With a sensing distance of 4 mm, flush mounting capability, and a robust M12 threaded housing, this sensor is ideal for environments requiring precise and consistent detection of metallic objects.

Key Features

• Sensing Distance: 4 mm rated operating distance

• Output Type: PNP, Normally Closed (NC)

• Mounting: Flush (embeddable) installation

• Housing: M12 threaded, nickel-plated brass for durability

• Connection: M12 x 1 connector, 4-pin

• Operating Voltage: 10 to 30 V DC

• Switching Frequency: Up to 800 Hz

• Protection Rating: IP67, ensuring resistance to dust and water ingress

• Operating Temperature Range: -25°C to +70°C (-13°F to +158°F)

• Indicator: Yellow LED for clear switching status indication

Technical Specifications

• Model Number: NBB4-12GM50-E3-V1

• Series: Standard Series

• Switching Function: Normally Closed (NC)

• Output Type: PNP

• Rated Operating Distance (sn): 4 mm

• Assured Operating Distance (sa): 0 to 3.24 mm

• Reduction Factors:

  • Aluminum (rAl): 0.45

  • Copper (rCu): 0.35

  • Stainless Steel (r304): 0.7

• Operating Voltage (UB): 10 to 30 V DC

• Switching Frequency (f): 0 to 800 Hz

• Hysteresis (H): Typically 5%

• Reverse Polarity Protection: Yes

• Short-Circuit Protection: Pulsing

• Voltage Drop (Ud): ≤ 3 V

• Operating Current (IL): 0 to 200 mA

• Off-State Current (Ir): 0 to 0.5 mA, typically 0.1 µA at 25°C

• No-Load Supply Current (I0): ≤ 15 mA

• Time Delay Before Availability (tv): ≤ 5 ms

• Switching State Indicator: Multihole yellow LED

• Connection Type: M12 x 1 connector, 4-pin

• Housing Material: Nickel-plated brass

• Sensing Face Material: PBT

• Degree of Protection: IP67

• Dimensions:

  • Length: 65 mm

  • Diameter: 12 mm

• Tightening Torque: ≤ 10 Nm

• Standards Compliance: EN 60947-5-2:2007

• Approvals:

  • UL: cULus Listed, General Purpose

  • CSA: cCSAus Listed, General Purpose

  • CCC: Not required for products rated ≤36 V

Applications

• Industrial Automation: Precise detection of metallic components in assembly lines

• Robotics: Position sensing and end-of-arm tooling feedback

• Packaging Machinery: Monitoring the presence and position of metal parts

• Material Handling: Detecting metal objects on conveyors and chutes

Why Choose Pepperl+Fuchs NBB4-12GM50-E3-V1?

• High Precision: Accurate detection with a 4 mm sensing range

• Robust Construction: Durable nickel-plated brass housing suitable for industrial environments

• Compact Size: M12 threaded design allows for installation in space-constrained areas

• Reliable Performance: High switching frequency up to 800 Hz for dynamic applications

• Easy Integration: Standard M12 connector facilitates quick and secure connections
