Pepperl+Fuchs NBB4-12GM50-E0-V1 | M12 Inductive Sensor | 4 mm Range | NPN Output

Pepperl+Fuchs NBB4-12GM50-E0-V1 | High-Precision M12 Inductive Sensor for Industrial Applications

Overview

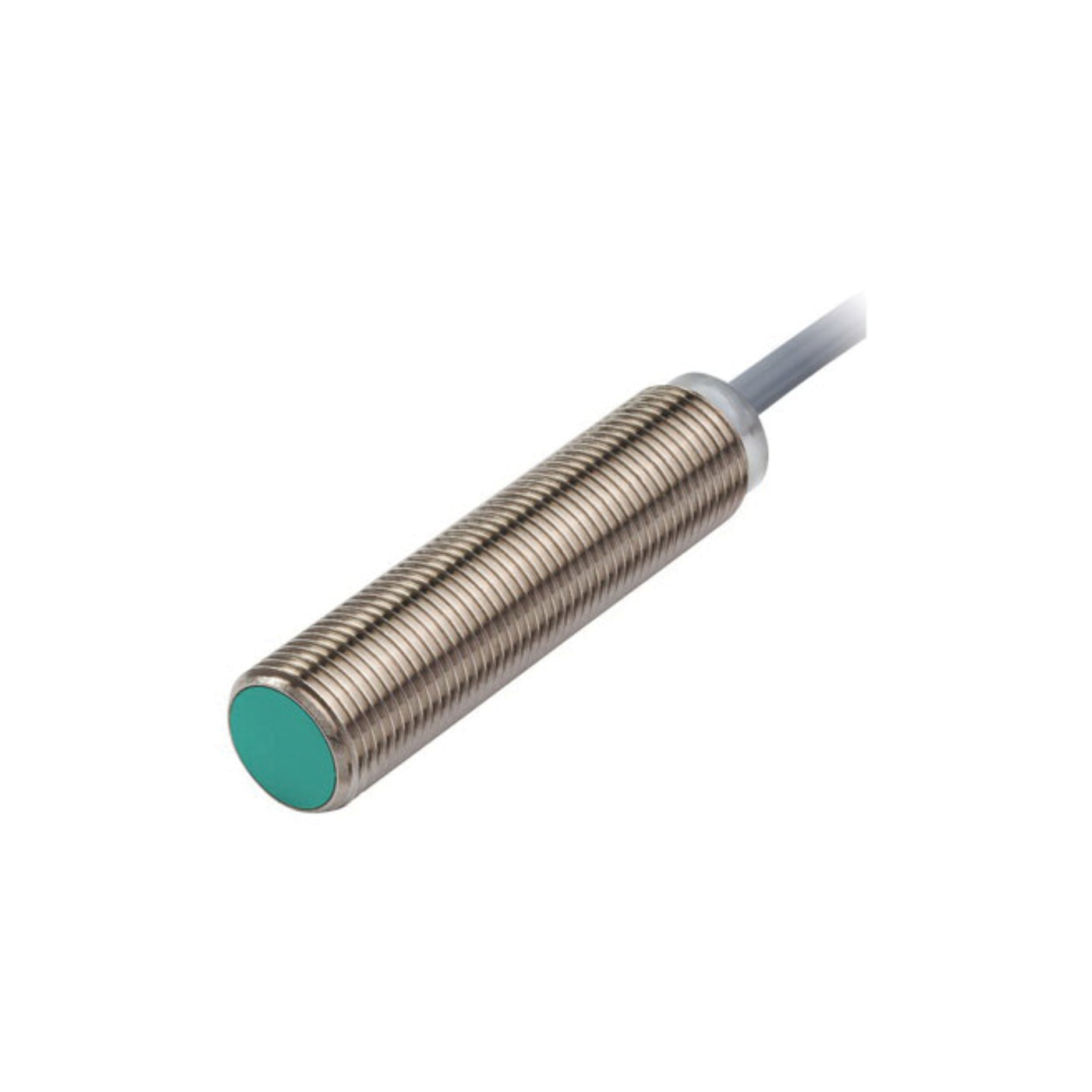

The Pepperl+Fuchs NBB4-12GM50-E0-V1 is a robust M12 inductive proximity sensor designed for precise detection of metallic objects in industrial environments. Featuring a 4 mm flush sensing range, NPN normally open (NO) switching output, and an extended operating temperature range of -40°C to +85°C, this sensor ensures reliable performance under demanding conditions. Its durable construction and high ingress protection make it suitable for various automation tasks requiring accurate and non-contact object detection.

Key Features

• Sensing Range: 4 mm flush installation, providing accurate detection of metallic targets.

• Output Type: NPN switching output with normally open (NO) function, facilitating straightforward integration into control systems.

• Extended Temperature Range: Operates effectively between -40°C and +85°C, suitable for extreme environmental conditions.

• Robust Construction: Housing made of white bronze-coated brass with a PBT sensing face, ensuring durability and resistance to industrial wear.

• High Protection Rating: IP65/IP66/IP67/IP68-rated, offering excellent protection against dust and water ingress.

• Compact Design: M12 threaded cylindrical housing with a length of 64.5 mm, facilitating easy integration into different systems.

• Connection: Equipped with an M12 x 1 connector plug for flexible installation.

• LED Indicator: Multihole yellow LED provides clear visual indication of the switching state for easy status monitoring.

Technical Specifications

• Model Number: NBB4-12GM50-E0-V1

• Switching Function: Normally open (NO)

• Output Type: NPN

• Rated Operating Distance (sn): 4 mm

• Installation: Flush

• Operating Voltage (UB): 6 to 36 V DC

• Switching Frequency (f): 0 to 2550 Hz

• Hysteresis (H): Typically 5% of sensing distance

• Reverse Polarity Protection: Yes

• Short-Circuit Protection: Pulsing

• Voltage Drop (Ud): ≤ 1 V

• Operating Current (IL): 0 to 200 mA

• Off-State Current (Ir): Maximum 150 µA

• No-Load Supply Current (I0): ≤ 10 mA

• Time Delay Before Availability (tv): ≤ 10 ms

• Reduction Factors:

  • Aluminum (rAl): 0.4

  • Copper (rCu): 0.35

  • Stainless Steel 304 (r304): 0.79

  • Brass (rBrass): 0.49

• Ambient Temperature Range: -40°C to +85°C (-40°F to +185°F)

• Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)

• Housing Material: White bronze-coated brass

• Sensing Face Material: PBT, green

• Degree of Protection: IP65/IP66/IP67/IP68

• Connection Type: M12 x 1 connector plug, 3-pin

• Dimensions:

  • Length: 64.5 mm

  • Diameter: 12 mm

• Weight: Approximately 29 g

• Compliance:

  • Standards: EN IEC 60947-5-2

  • Approvals: cULus Listed for General Purpose, Class 2 Power Source; DNVGL Marine Approval

Applications

• Material Handling: Accurate detection of metal objects on conveyors for sorting and positioning.

• Automotive Manufacturing: Ensures precise detection of vehicle components during assembly processes.

• Packaging Industry: Verifies the presence of metallic parts in packaging lines to maintain quality control.

• Machine Tools: Monitors the position of metal workpieces and tools to enhance operational safety and efficiency.

• Heavy Equipment: Suitable for outdoor and rugged environments, detecting metal parts in construction and agricultural machinery.

Why Choose Pepperl+Fuchs NBB4-12GM50-E0-V1?

• Precise Detection: 4 mm flush sensing range allows for accurate detection of metallic targets.

• Enhanced Durability: Robust housing materials and high ingress protection ratings ensure longevity in harsh industrial settings.

• Wide Operating Voltage Range: Compatible with various power supplies, accommodating 6 to 36 V DC.

• High Switching Frequency: Capable of handling fast-paced applications with switching frequencies up to 2550 Hz.

• Trusted Brand: Pepperl+Fuchs is renowned for high-quality sensors and automation solutions, ensuring reliability and support.
