Pepperl+Fuchs NBB20-U10-E2 | 20 mm | 2-Wire AC/DC | Flush | IP67

Pepperl+Fuchs NBB20-U10-E2 | Inductive Sensor, 20 mm, 2-Wire AC/DC, IP67

Overview:

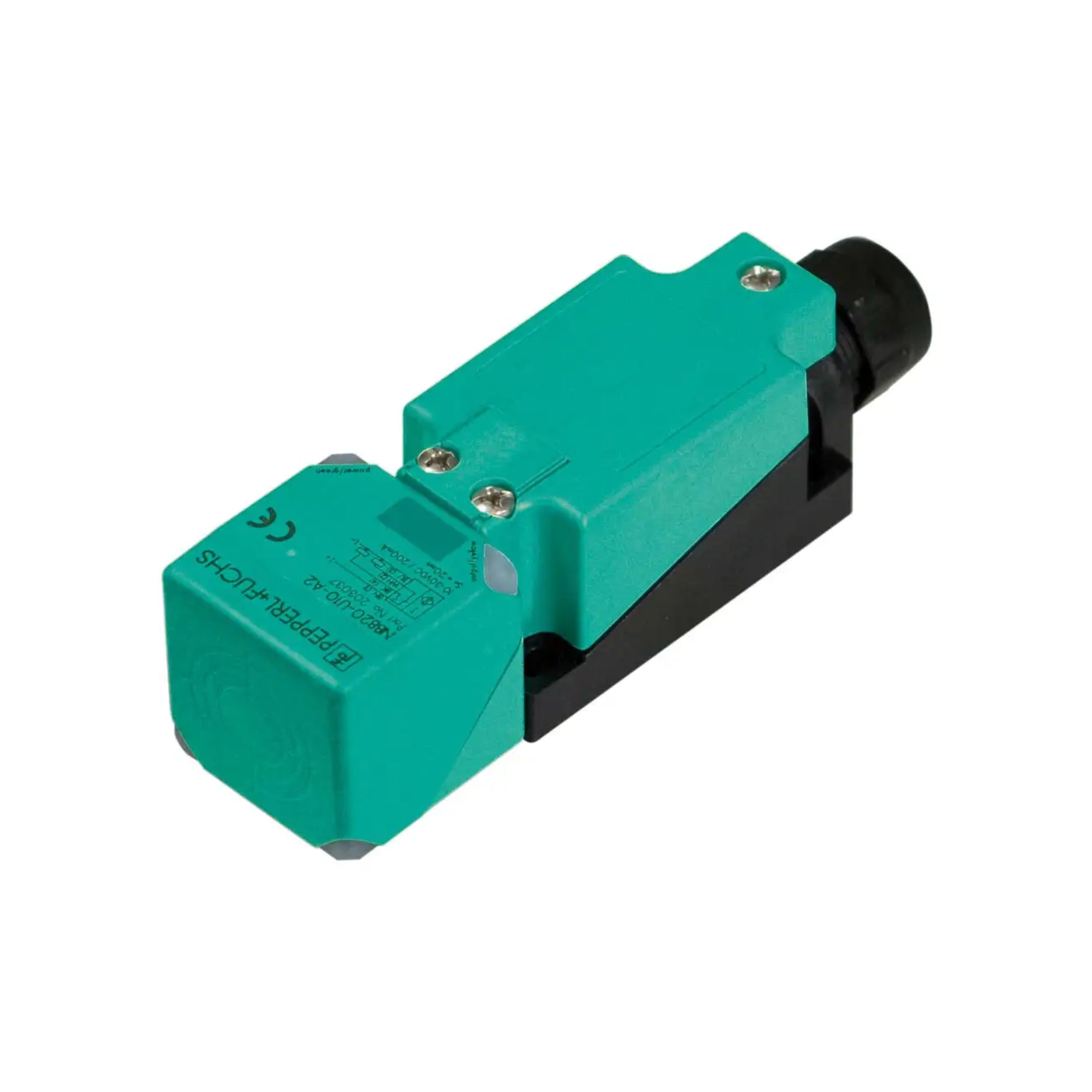

The Pepperl+Fuchs NBB20-U10-E2 (Part No. 203038) is a flush-mount inductive proximity sensor with a 20 mm sensing distance and 2-wire AC/DC operation, ideal for detecting metal objects in harsh industrial environments. With IP67 protection and a durable housing, it is designed for universal use in AC or DC circuits.

Key Features:

• Sensing Distance: 20 mm (flush mount)

• Output Type: Normally Open (NO)

• Wiring Type: 2-wire AC/DC

• Operating Voltage: 20–250 V AC/DC

• Housing Material: PBT plastic

• Sensing Face Material: PA

• Connection: Prewired 2 m cable

• Protection Rating: IP67

• Switching Frequency: 25 Hz (AC) / 500 Hz (DC)

• LED Indicator: Integrated switching status display

• Temperature Range: -25°C to +70°C

Technical Specifications:

• Model Number: NBB20-U10-E2

• Part Number: 203038

• Sensor Type: Inductive proximity

• Installation Type: Flush mounting

• Voltage Drop: ≤ 10 V

• Switching Current: 5–200 mA

• Leakage Current: ≤ 1.8 mA

• Short-Circuit Protection: Yes

• Cable Length: 2 meters

• Weight: Approx. 150 g

Applications:

• Factory Automation: Metal detection in control circuits

• Conveyor Systems: Object presence and position monitoring

• Machine Tools: Rugged sensing in harsh environments

• Packaging Equipment: Non-contact detection of containers or parts

• OEM Systems: Universal sensor for AC or DC installations

Why Choose the NBB20-U10-E2?

✅ Long 20 mm flush sensing range
✅ 2-wire AC/DC compatibility simplifies wiring
✅ Durable IP67 plastic housing for industrial durability
✅ Easy installation with prewired cable
✅ Reliable performance in harsh environments

Order Now:

Available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
