Pepperl+Fuchs NBB2-8GM40-E2-V1 | Inductive Sensor

Pepperl+Fuchs NBB2-8GM40-E2-V1 | 2 mm Inductive Sensor – PNP Output, M8 Threaded, M12 Connector, IP67

Overview

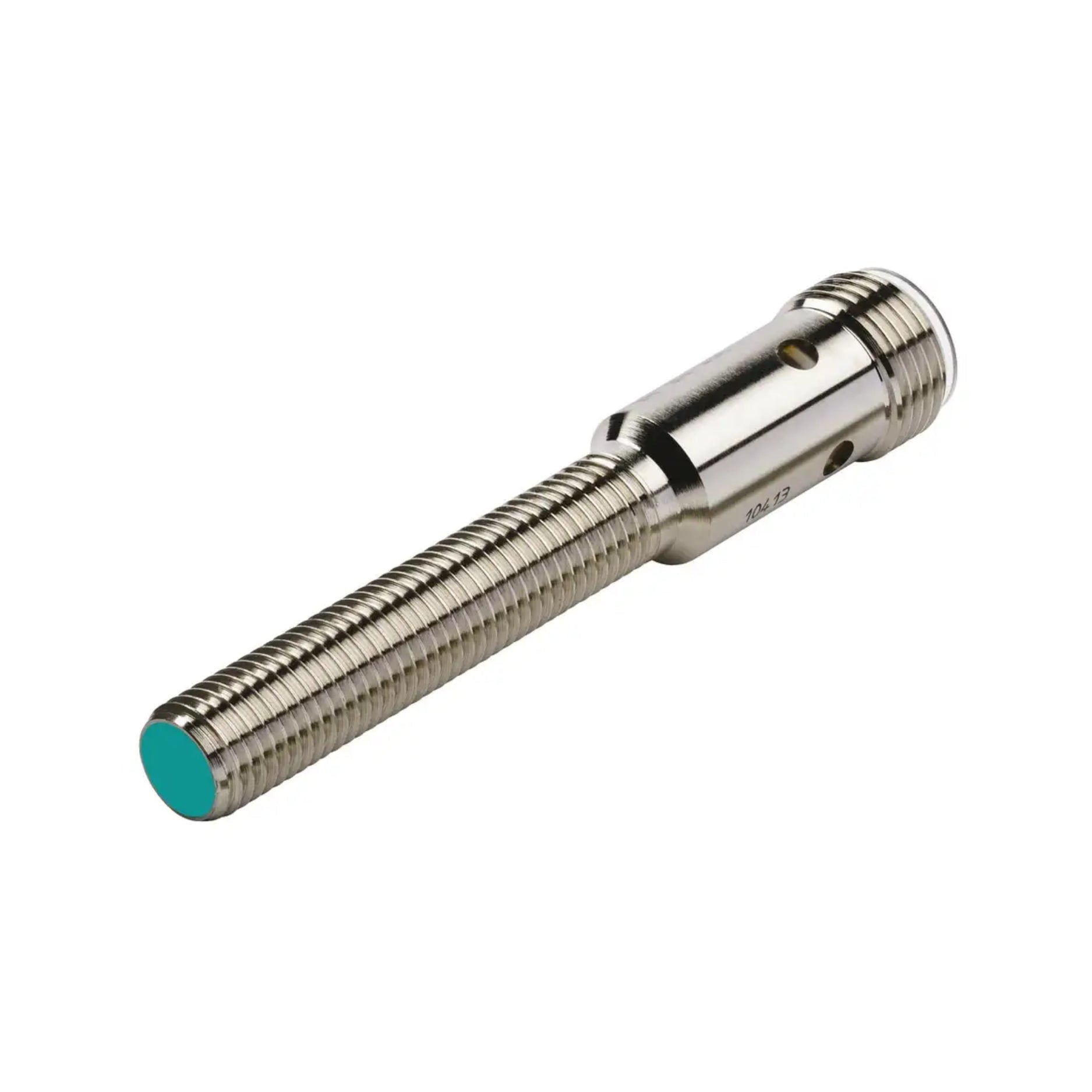

The Pepperl+Fuchs NBB2-8GM40-E2-V1 (304615-0058) is a 2 mm flush-mount inductive proximity sensor with PNP normally open output and a DC 3-wire configuration. Its compact M8 x 40 mm nickel-plated brass housing and M12 connector make it ideal for space-constrained automation and positioning tasks.

Key Features

• Sensing Distance: 2 mm (flush mount)

• Output Type: PNP, normally open (NO)

• Voltage Range: 10–30V DC

• Switching Frequency: Up to 2,000 Hz

• Connection: M12 4-pin connector

• Housing Size: M8 x 40 mm threaded

• Material: Nickel-plated brass

• Status LED: Integrated output indicator

• Protection: Short-circuit and reverse polarity

Technical Specifications

• Model Number: NBB2-8GM40-E2-V1

• Part Number: 304615-0058

• Sensing Distance: 2 mm (flush)

• Output Configuration: PNP NO

• Power Supply: 10–30V DC

• Current Rating: Max. 100 mA

• Voltage Drop: ≤ 1.8 V

• No Load Current: ≤ 10 mA

• Switching Frequency: 2,000 Hz

• Connector: M12, 4-pin

• Housing Material: Nickel-plated brass

• Sensing Face: Plastic (PBT)

• Temperature Range: -25°C to +70°C

• Protection Rating: IP67

• Mounting Type: Flush, M8 threaded body

• Standards: CE, cULus

Applications

• Precision Automation: Accurate metal detection in tight spaces

• Robotics: Small sensor for arm positioning and motion feedback

• Compact Machines: Ideal for embedded detection in OEM panels

• Electronics Production: Non-contact part presence verification

Why Choose NBB2-8GM40-E2-V1?

• Miniature Form Factor: M8 body fits compact installations

• Fast Response Time: Up to 2 kHz switching speed

• Reliable PNP Output: Common for PLC and control integration

• Easy Setup: M12 quick-connect simplifies wiring and maintenance

Order Now

Available now for fast international shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
