Pepperl+Fuchs NBB2-8GM25-E2-V3 | M8 Flush-Mount Inductive Sensor – 2mm, PNP, V3 Connector

Overview

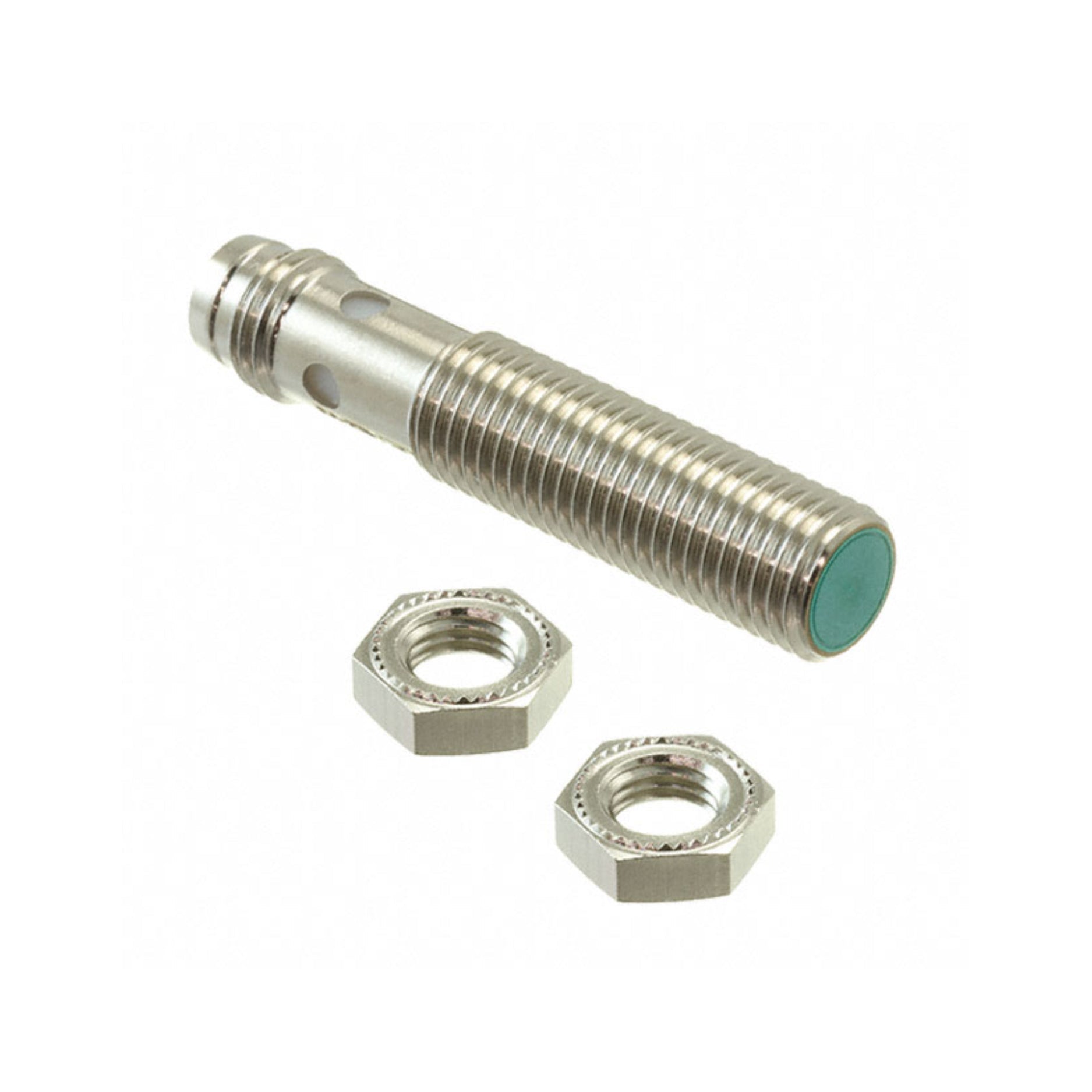

The Pepperl+Fuchs NBB2-8GM25-E2-V3 (Part No. 304615-0031) is a compact M8 cylindrical inductive proximity sensor designed for flush mounting in metal and offers a 2 mm sensing distance. With a PNP normally open (NO) output and V3 M8 connector, this sensor is ideal for use in tight industrial environments where reliable, non-contact metal detection is required.

Built with robust materials and IP67 protection, it's suited for automation systems, machine tools, and OEM applications.

Key Features

• Sensing Range: 2 mm (flush mount)

• Output Type: PNP, Normally Open (NO)

• Threaded Housing: M8 x 25 mm

• Electrical Connection: M8 3-pin (V3) connector

• High Switching Frequency: Up to 2,000 Hz

• Protection Rating: IP67 – Dust and water resistant

• LED Status Indicator – Visual operation confirmation

Technical Specifications

• Model: NBB2-8GM25-E2-V3

• Part Number: 304615-0031

• Switching Distance: 2 mm

• Mounting Type: Flush in metal

• Output Type: PNP NO (3-wire DC)

• Voltage Range: 10–30 VDC

• Max Output Current: 100 mA

• Connector: M8, 3-pin (V3)

• Housing Material: Nickel-plated brass

• Operating Temp: -25°C to +70°C

• Protection: IP67

Applications

• Automation Equipment – Metal object detection in compact spaces

• Machine Tools & Robotics – Position sensing with quick response

• OEM Systems – Reliable, compact inductive sensing

Why Choose the NBB2-8GM25-E2-V3?

• Miniature M8 design with robust performance

• Reliable PNP NO output for most PLCs

• Quick-connect V3 interface simplifies installation

Order Now

Available and ready for global shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
