Pepperl+Fuchs NBB2-12GM40-E2-V1 | M12 Inductive Sensor, 2 mm, PNP NO, IP67

Overview:

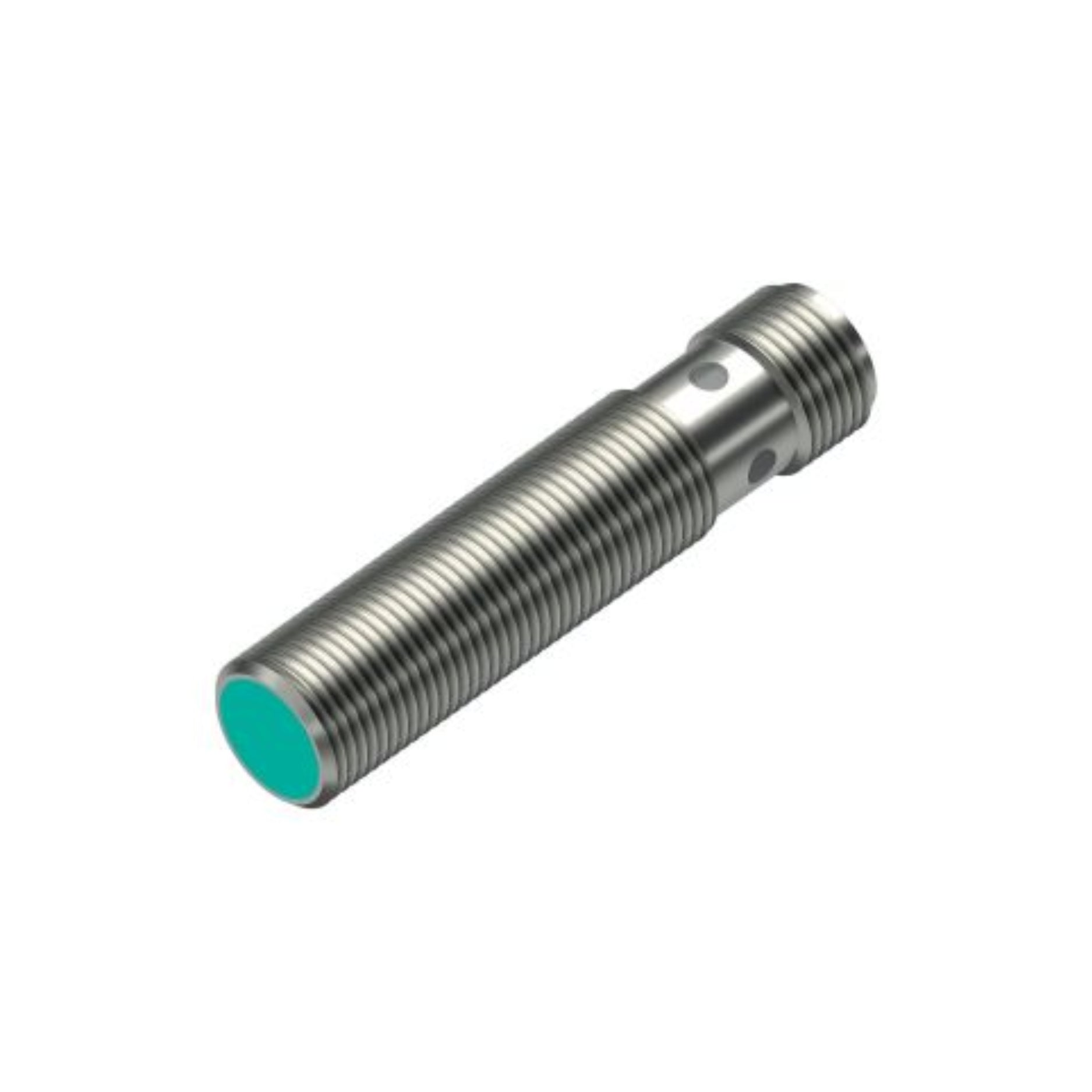

The Pepperl+Fuchs NBB2-12GM40-E2-V1 (Part No. 083307) is a compact and rugged M12 inductive proximity sensor designed for flush mounting with a 2 mm sensing distance. This sensor provides a PNP normally open (NO) output and features a standard M12 connector for quick, secure installation in industrial automation environments.

Key Features:

• Sensing Distance: 2 mm (flush mountable)

• Output Type: PNP, Normally Open (NO)

• Operating Voltage: 10–30 VDC

• Connector Type: M12, 3-pin plug

• Housing: M12 x 1, nickel-plated brass

• Protection Class: IP67

• Switching Frequency: Up to 2,000 Hz

• Temperature Range: -25°C to +70°C

• LED Indicator: Integrated for status display

• Short-Circuit & Reverse Polarity Protection: Yes

Technical Specifications:

• Model Number: NBB2-12GM40-E2-V1

• Part Number: 083307

• Sensor Type: Inductive proximity

• Installation Type: Flush

• Output Logic: PNP NO

• Voltage Drop: ≤ 1.5 V

• Load Current: ≤ 100 mA

• Material – Housing: Nickel-plated brass

• Material – Sensing Face: LCP (Liquid Crystal Polymer)

• Dimensions: Ø12 mm x ~40 mm

• Weight: Approx. 30 g

Applications:

• Automated Assembly Lines: Metal part presence detection

• Packaging Machinery: Verify object alignment

• Robotics: Sensing for positioning and feedback

• Compact Equipment: Ideal for space-limited installations

• Material Handling: Detect objects on conveyors or chutes

Why Choose the NBB2-12GM40-E2-V1?

✅ Precise and compact 2 mm flush detection
✅ Durable M12 body with IP67 protection
✅ Fast switching for high-speed automation
✅ Easy installation with M12 connector
✅ Reliable performance in harsh environments

Order Now:

In stock and available for worldwide shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
