Pepperl+Fuchs NBB15-30GM50-E2-V1 | Inductive Sensor

Pepperl+Fuchs NBB15-30GM50-E2-V1 | 15 mm Inductive Proximity Sensor – PNP Output, M30 Housing, IP67

Overview

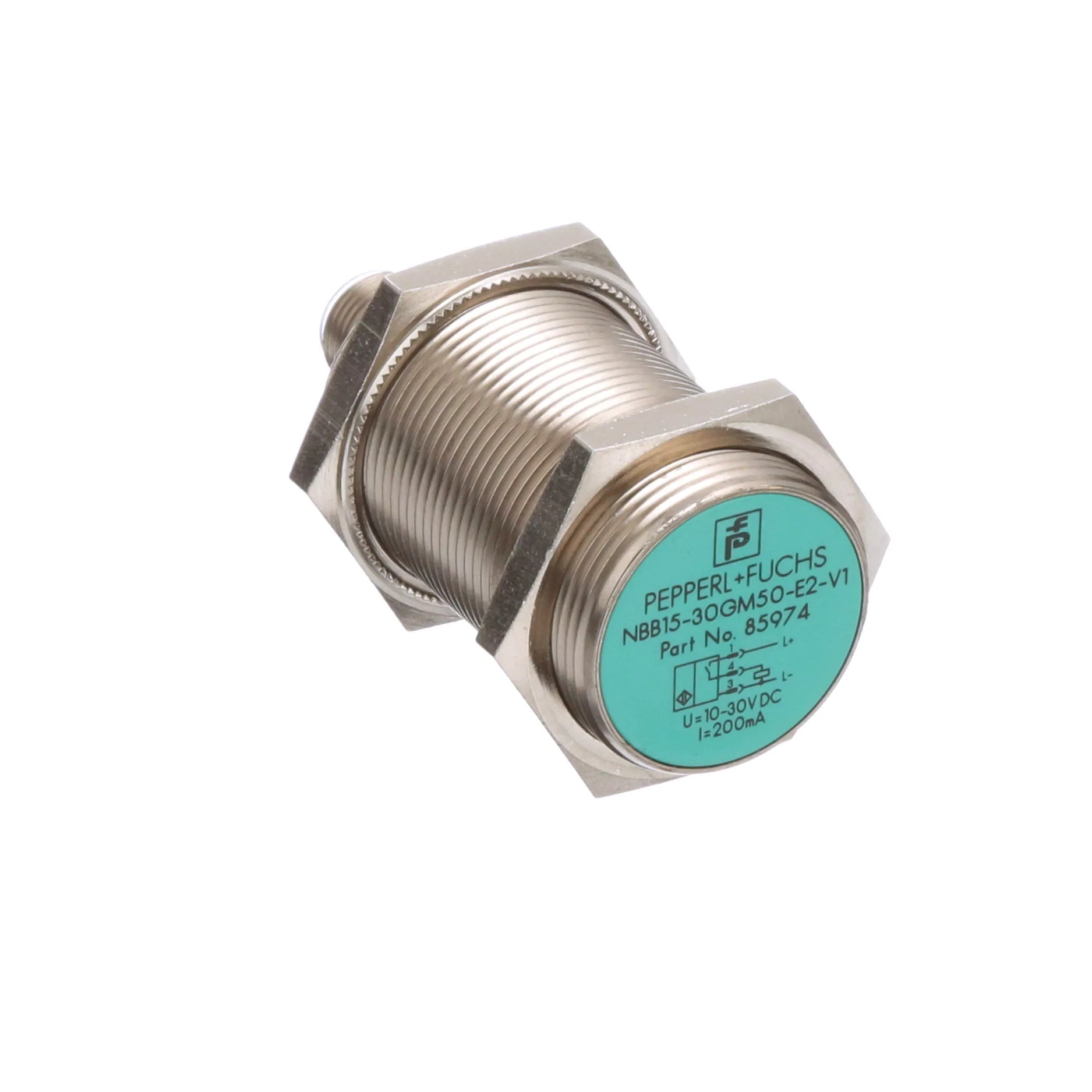

The Pepperl+Fuchs NBB15-30GM50-E2-V1 (085974) is a long-range inductive proximity sensor with a 15 mm sensing distance, designed for non-contact metal object detection. With a PNP normally open output, M12 connector, and rugged M30 threaded housing, this sensor ensures reliable performance in industrial automation environments.

Key Features

• Sensing Distance: 15 mm (non-flush mount)

• Output Type: PNP, normally open (NO)

• Power Supply: 10–30V DC

• Connection: M12, 4-pin connector

• Housing Size: M30 x 50 mm threaded cylindrical

• Material: Nickel-plated brass housing

• LED Indicator: Integrated switching status display

• Protection: IP67 rating for harsh environments

Technical Specifications

• Model Number: NBB15-30GM50-E2-V1

• Part Number: 085974

• Sensing Range: 15 mm

• Output Configuration: PNP NO

• Operating Voltage: 10–30V DC

• Max Load Current: 200 mA

• Voltage Drop: ≤ 3 V

• No-Load Current: ≤ 15 mA

• Switching Frequency: 250 Hz

• Protection Features: Short-circuit and reverse polarity protection

• Connector Type: M12, 4-pin

• Housing Material: Nickel-plated brass

• Sensing Face Material: PBT plastic

• Protection Rating: IP67

• Operating Temperature: -25°C to +70°C

• Mounting Style: Non-flush in metal

Applications

• Material Handling: Reliable detection of large metal objects

• Packaging Equipment: Detecting product presence over longer ranges

• Automated Machines: Robust sensor for object positioning

• Outdoor or Dusty Environments: IP67 protection ensures consistent operation

Why Choose NBB15-30GM50-E2-V1?

• Extended Sensing Range: 15 mm non-contact detection

• Industrial Strength: M30 housing and IP67 protection for harsh use

• Fast and Reliable: 250 Hz switching for dynamic processes

• Plug-and-Play: Quick connection via standard M12 connector

Order Now

Available for immediate international shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
