Pepperl+Fuchs NBB15-30GM50-E2 | M30 Inductive Proximity Sensor | 15 mm Sensing

Pepperl+Fuchs NBB15-30GM50-E2 | Durable Inductive Sensor for Industrial Automation

Overview

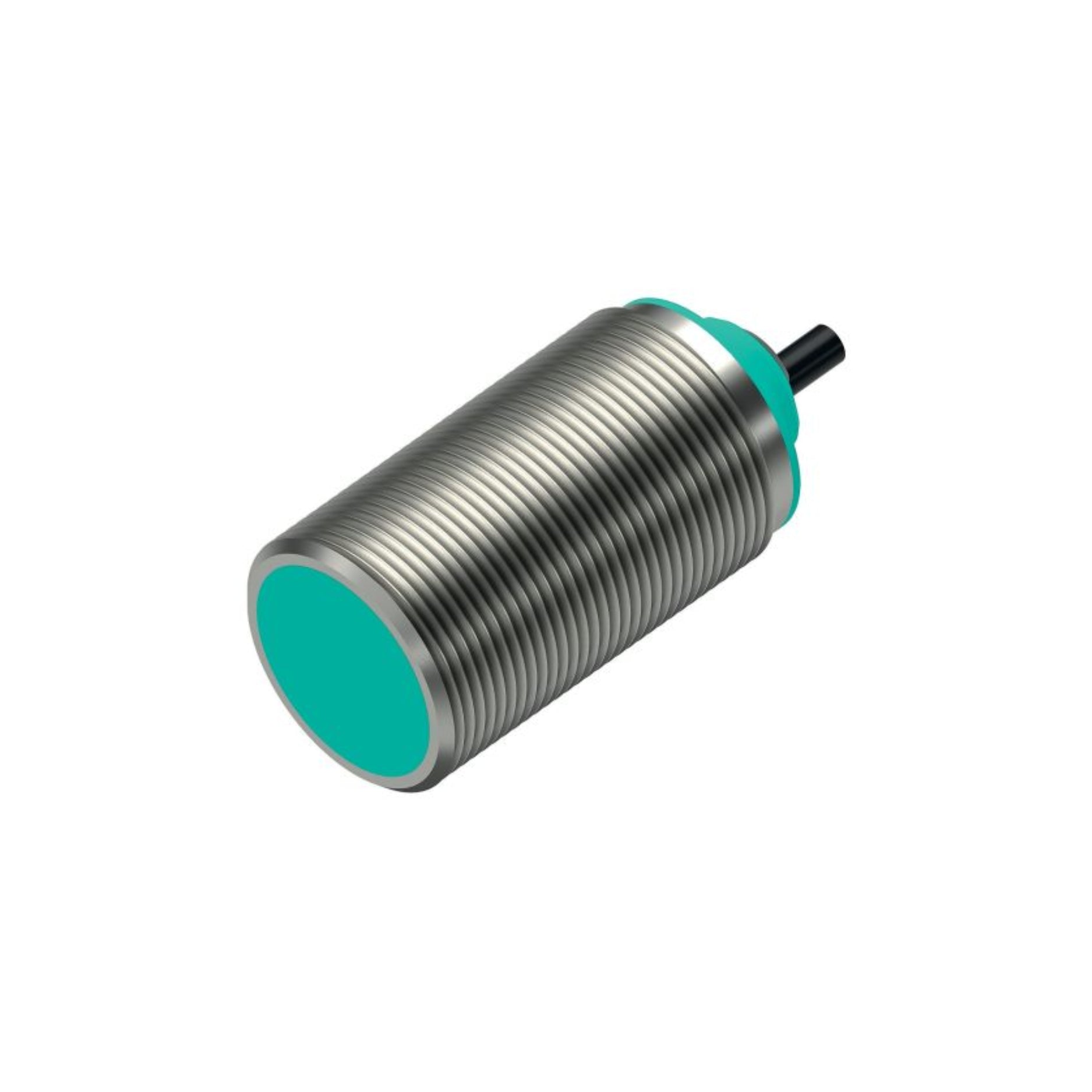

The NBB15-30GM50-E2 is a high-performance M30 inductive proximity sensor designed to detect metallic targets at a distance of up to 15 mm. With a PNP normally open output, it offers consistent switching performance for a wide range of industrial applications. Its nickel-plated brass housing and IP67 rating make it suitable for harsh environments.

Key Features

• 15 mm flush sensing distance

• PNP normally open (NO) output

• M30 threaded housing for easy mounting

• Nickel-plated brass construction

• IP67 protection for dust and water resistance

• 2-meter fixed PVC cable

• Operating voltage: 10–30 V DC

• Switching frequency: up to 200 Hz

• LED status indicator

Technical Specifications

• Voltage drop: ≤ 3 V

• Output current: 0–200 mA

• Off-state current: ≤ 0.5 mA

• No-load supply current: ≤ 15 mA

• Short-circuit protection: pulsed

• Reverse polarity protection: included

• Operating temperature: -25 °C to +70 °C

• Cable diameter: 4.6 mm ± 0.2 mm

• Approximate weight: 193 g

Applications

• Factory and process automation

• Conveyor systems

• Machine tools

• Robotics and packaging equipment

• Automotive assembly lines

Why Choose the NBB15-30GM50-E2?

• Accurate, long-distance detection with flush mounting

• Reliable performance under challenging conditions

• Fast response time for dynamic applications

• Easy integration into standard M30 mounts

• Built to last in industrial environments

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
