Pepperl+Fuchs NBB10-30GM50-E2-V1 | 084199

Pepperl+Fuchs NBB10-30GM50-E2-V1 | Flush-Mount M30 Inductive Proximity Sensor – 10 mm, PNP Output, IP67

Overview

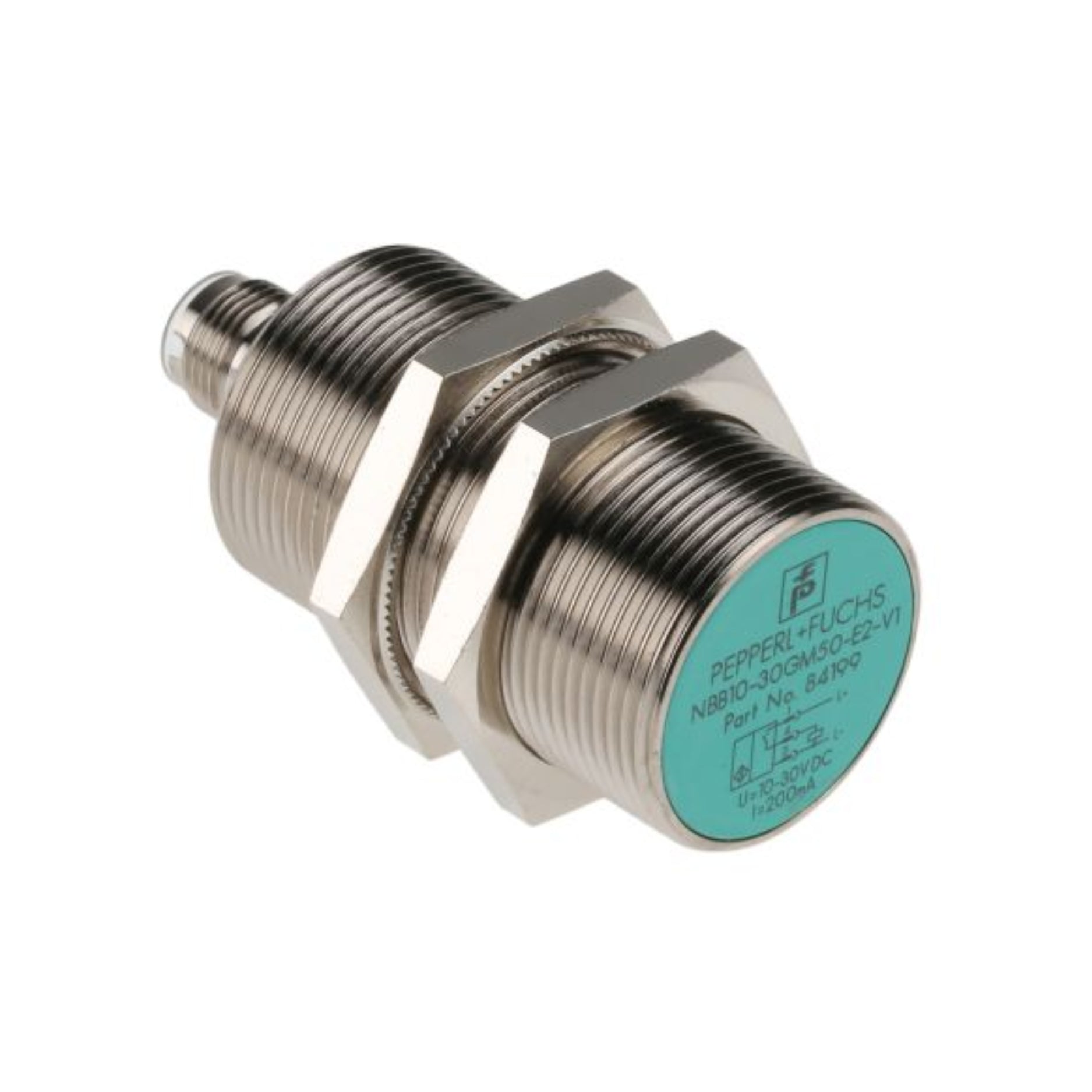

The Pepperl+Fuchs NBB10-30GM50-E2-V1 (Part No. 084199) is a M30 flush-mount inductive proximity sensor with a 10 mm sensing range, PNP normally open output, and a V1 (M12) connector. This sensor is designed for non-contact detection of metal targets, providing reliable performance even in harsh industrial environments.

With its robust brass housing, LED status indication, and IP67 rating, it’s well-suited for use in factory automation, material handling, and machine building.

Key Features

• Sensing Distance: 10 mm (flush mount)

• Output Type: PNP, Normally Open (NO)

• Housing Style: M30 cylindrical, threaded

• Electrical Connection: M12 4-pin (V1) connector

• LED Status Indicator – For easy diagnostics

• Short-Circuit & Overload Protection – Built-in safety features

• Protection Rating: IP67 – Suitable for washdown areas

Technical Specifications

• Model: NBB10-30GM50-E2-V1

• Part Number: 084199

• Mounting Type: Flush in metal

• Output Type: PNP NO (3-wire DC)

• Supply Voltage: 10–30 VDC

• Max Output Current: 200 mA

• Switching Frequency: ~500 Hz

• Housing Material: Nickel-plated brass

• Connector: M12 (V1), 4-pin

• Operating Temperature: -25°C to +70°C

• Enclosure Rating: IP67

Applications

• Factory Automation – Detection of metal components

• Material Handling Equipment – Position sensing

• Robotic Systems – End-of-arm detection

• OEM Machinery – Durable and compact sensing solution

Why Choose the NBB10-30GM50-E2-V1?

• Reliable 10 mm flush sensing distance

• Easy installation with standard M12 V1 connector

• Designed for tough industrial environments with IP67 protection

Order Now

In stock and available for global shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
