Pepperl+Fuchs ML100-8-H-350-RT/103/115A | 5–350 mm Detection Range | PNP Output

Pepperl+Fuchs ML100-8-H-350-RT/103/115A | Precision Background Suppression Sensor for Industrial Applications

Overview

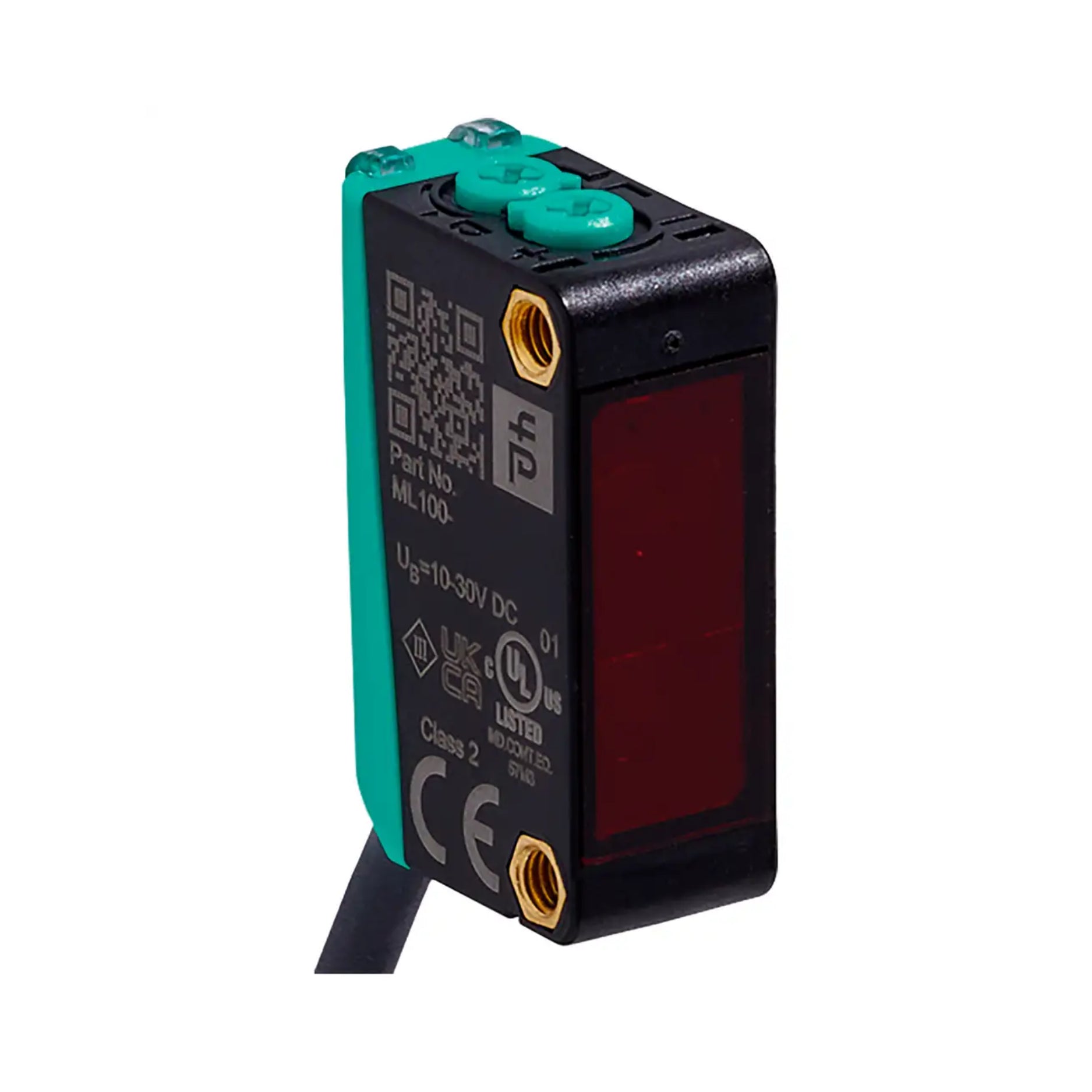

The Pepperl+Fuchs ML100-8-H-350-RT/103/115A is a compact background suppression sensor designed for accurate and reliable object detection in industrial environments. Featuring an adjustable detection range of 5 to 350 mm, a PNP switching output, and a highly visible red light emitter, this sensor ensures precise performance even in challenging conditions.

Key Features

• Adjustable Detection Range: Settable from 5 mm up to 350 mm to accommodate various application requirements.

• Background Suppression: Effectively distinguishes target objects from background surfaces, enhancing detection accuracy.

• Visible Red Light: Facilitates easy alignment and setup with a bright, highly visible light spot.

• Compact Design: Miniature housing with full metal thread mounting for space-constrained installations.

• LED Indicators: Green LED for power status and yellow LED for output state provide clear operational feedback

• Robust Construction: IP67-rated housing ensures durability in harsh industrial environments.

Technical Specifications

• Model Number: ML100-8-H-350-RT/103/115A

• Detection Range: 5 to 350 mm

• Light Source: Modulated visible red LED

• Output Type: PNP, light-on/dark-on selectable

• Response Time: 1 ms

• Switching Frequency: 500 Hz

• Operating Voltage: 10 to 30 V DC

• Current Consumption: < 20 mA (no-load)

• Connection: 2-meter fixed cable

• Housing Material: Polycarbonate (PC)

• Operating Temperature: -30°C to 60°C

• Protection Class: IP67

Applications

• Material Handling: Accurate detection of items on conveyors, ensuring proper sorting and routing.

• Packaging Systems: Verification of product presence and position during packaging operations.

• Assembly Lines: Detection of components for automated assembly processes.

• Printing Industry: Monitoring of paper or media presence to prevent misfeeds.

Why Choose Pepperl+Fuchs ML100-8-H-350-RT/103/115A?

• High Precision: Reliable background suppression ensures accurate object detection without interference from background surfaces.

• User-Friendly: Visible red light and LED indicators simplify installation and operation.

• Durable and Compact: Robust construction with a small footprint suits various industrial applications.

• Flexible Integration: Adjustable detection range and selectable output modes provide versatility for different system requirements.

  Order Now

  Available for immediate shipping worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
