Pepperl+Fuchs LS682-DA/EN/F1 | Optical Data Coupler | 120 m | IP67

Pepperl+Fuchs LS682-DA/EN/F1 | Optical Data Coupler, 120 m Range, RS-232/RS-422, IP67

Overview:

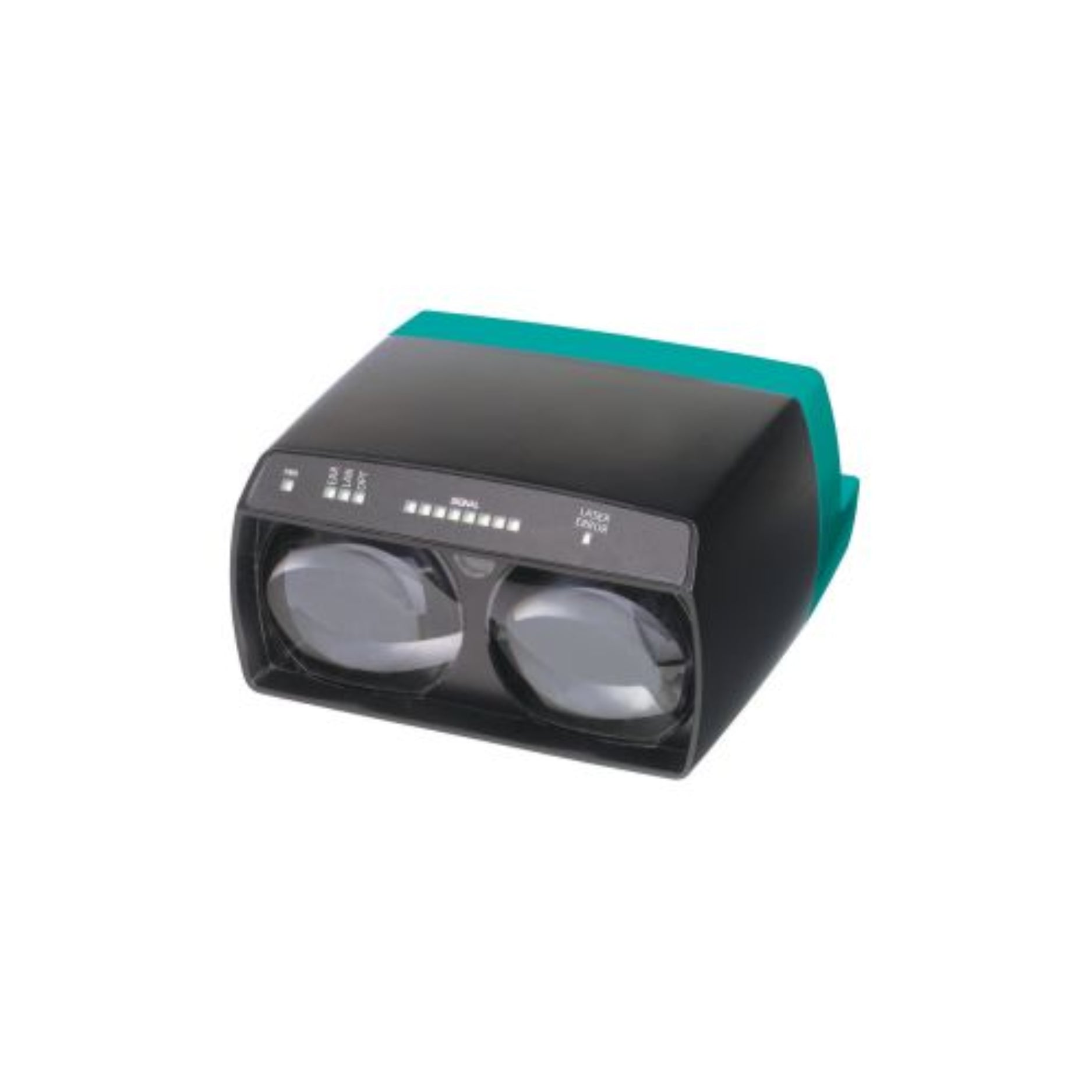

The Pepperl+Fuchs LS682-DA/EN/F1 (Part No. 265350) is a high-performance optical data coupler for non-contact full-duplex data transmission over distances up to 120 meters. Supporting RS-232 and RS-422 interfaces, it ensures reliable, wear-free communication in applications where traditional wired connections are not feasible. Its IP67-rated housing is ideal for harsh industrial environments.

Key Features:

• Transmission Distance: Up to 120 m

• Data Rate: Up to 115.2 kbps

• Interface Compatibility: RS-232 and RS-422 (switch-selectable)

• Operating Mode: Full-duplex, contactless data exchange

• Alignment Aid: Integrated alignment LEDs

• Protection Class: IP67 – dust and water resistant

• Operating Voltage: 18–30 VDC

• Connection Type: M12, 5-pin connector

• Housing Material: Robust industrial plastic

• Mounting: Adjustable bracket or surface mount

• Temperature Range: -20°C to +60°C

Technical Specifications:

• Model Number: LS682-DA/EN/F1

• Part Number: 265350

• Signal Type: Optical, infrared

• Max Current Consumption: ~130 mA

• Optical Axis Tolerance: ± 2°

• Indicator LEDs: Power, alignment, communication

• Dimensions: ~110 mm x 60 mm x 30 mm

• Weight: Approx. 350 g

Applications:

• Automated Storage & Retrieval Systems (AS/RS): Non-contact data links between moving units

• Rotary Machines: Reliable data transmission on rotating components

• Material Handling: Communication between shuttles and control systems

• Port & Rail Logistics: Wireless interface for cranes and carriers

• Packaging Systems: Replace slip rings or drag chains

Why Choose the LS682-DA/EN/F1?

✅ Reliable 120 m contactless communication in industrial settings
✅ Supports both RS-232 and RS-422 for versatile use
✅ Full-duplex data transfer eliminates lag and delays
✅ No wear and tear – ideal for motion or vibration-prone applications
✅ IP67 protection ensures performance in dusty or wet environments
