Overview

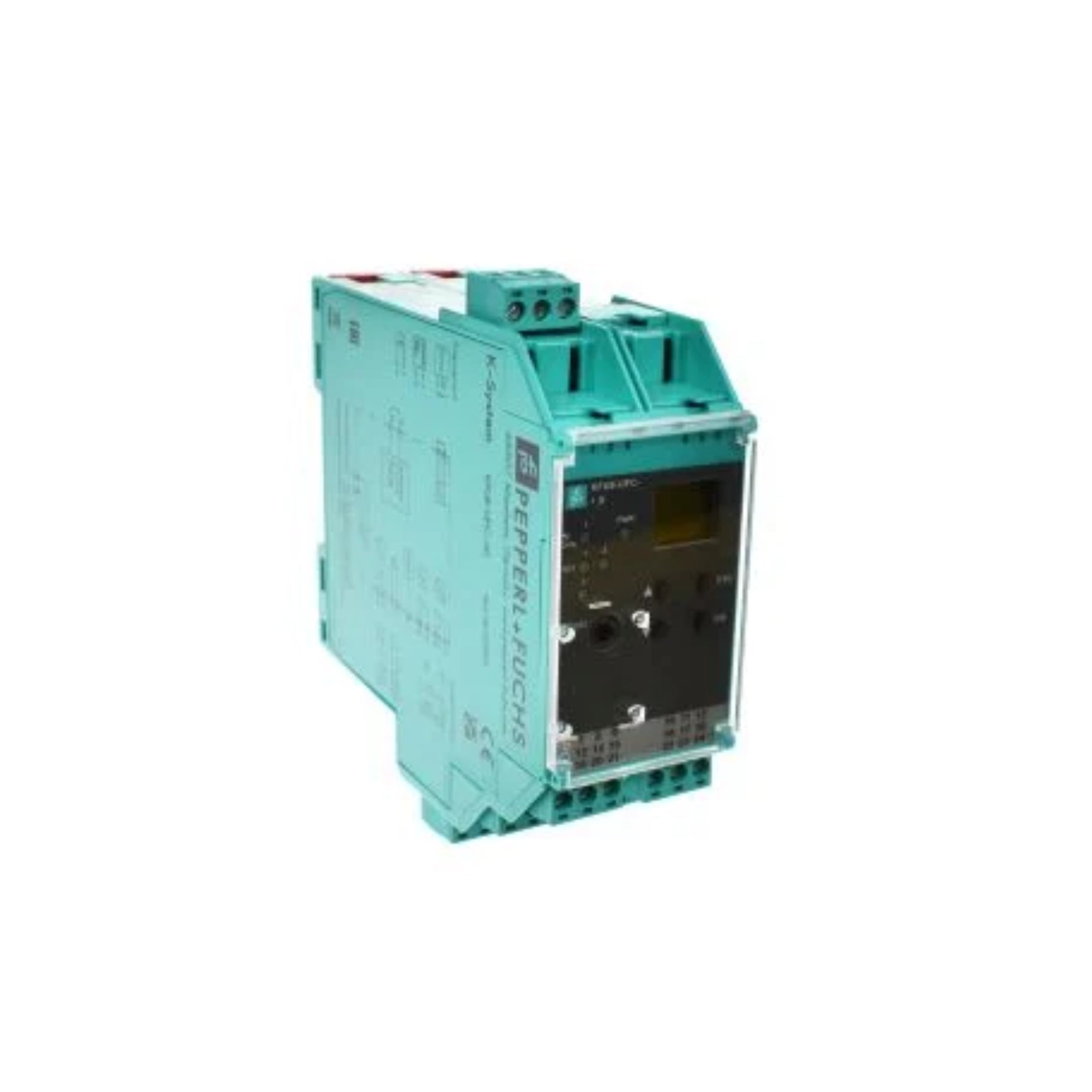

The KFU8-UFC-1.D is a 1-channel frequency converter from Pepperl+Fuchs, designed to convert frequency signals into analog current outputs. It supports a wide input frequency range from 1 mHz to 10 kHz and offers 0/4–20 mA analog output, along with relay and transistor outputs for trip value monitoring. Certified up to SIL 2 according to IEC/EN 61508/61511, this device ensures reliable performance in safety-critical applications.

Key Features

• Input Frequency Range: 1 mHz to 10 kHz

• Analog Output: 0/4–20 mA, adjustable

• Digital Outputs:

  • Two relay contacts (250 V AC / 2 A)

  • One passive transistor output (40 V DC)

• Sensor Compatibility: 2- or 3-wire sensors, NAMUR sensors, or dry contacts

• Start-Up Override: Adjustable from 1 to 1000 s

• Line Fault Detection (LFD): Monitors for wire breakage and short circuits

• Power Supply: 20–90 V DC or 48–253 V AC, 50/60 Hz

• Safety Certification: SIL 2 (IEC/EN 61508 / IEC/EN 61511)

• Configuration: Via front panel or PACTware software

• Housing: DIN rail mountable, IP20 protection

• Part Number: 231195

Technical Specifications

• Input:

  • Open Circuit Voltage: 22 V

  • Short-Circuit Current: 40 mA

  • Input Resistance: 4.7 kΩ

  • Switching Thresholds: Logic 1 > 2.5 mA; Logic 0 < 1.9 mA

  • Pulse Duration: > 50 µs

• Analog Output:

  • Current Range: 0–20 mA or 4–20 mA

  • Load Resistance: Max. 650 Ω

  • Fault Signal: Downscale ≤ 3.6 mA; Upscale ≥ 21.5 mA (per NAMUR NE43)

• Digital Outputs:

  • Relay Contacts: 250 V AC / 2 A or 40 V DC / 2 A

  • Transistor Output: 1-signal: (L+) -2.5 V (50 mA, short-circuit/overload proof); 0-signal: Off-state current ≤ 10 µA

• Response Time: ≤ 200 ms

• Accuracy: ±0.1% of measurement value

• Ambient Temperature Range: -20 °C to +60 °C

• Dimensions (W×H×D): 40 × 119 × 115 mm

• Weight: Approximately 300 g

• Mounting: 35 mm DIN rail (EN 60715)

• Protection Class: IP20

Applications

• Rotational Speed Monitoring

• Conveyor Belt Speed Control

• Pump and Fan Speed Regulation

• Industrial Automation Systems

• Process Control and Monitoring

Why Choose Pepperl+Fuchs KFU8-UFC-1.D?

• Wide Input Frequency Range: Suitable for various sensor types and applications

• Multiple Output Options: Analog and digital outputs for flexible integration

• Safety Certified: SIL 2 compliance ensures reliability in safety-critical systems

• User-Friendly Configuration: Easy setup via front panel or PACTware software

• Robust Design: Durable housing with IP20 protection for industrial environments
