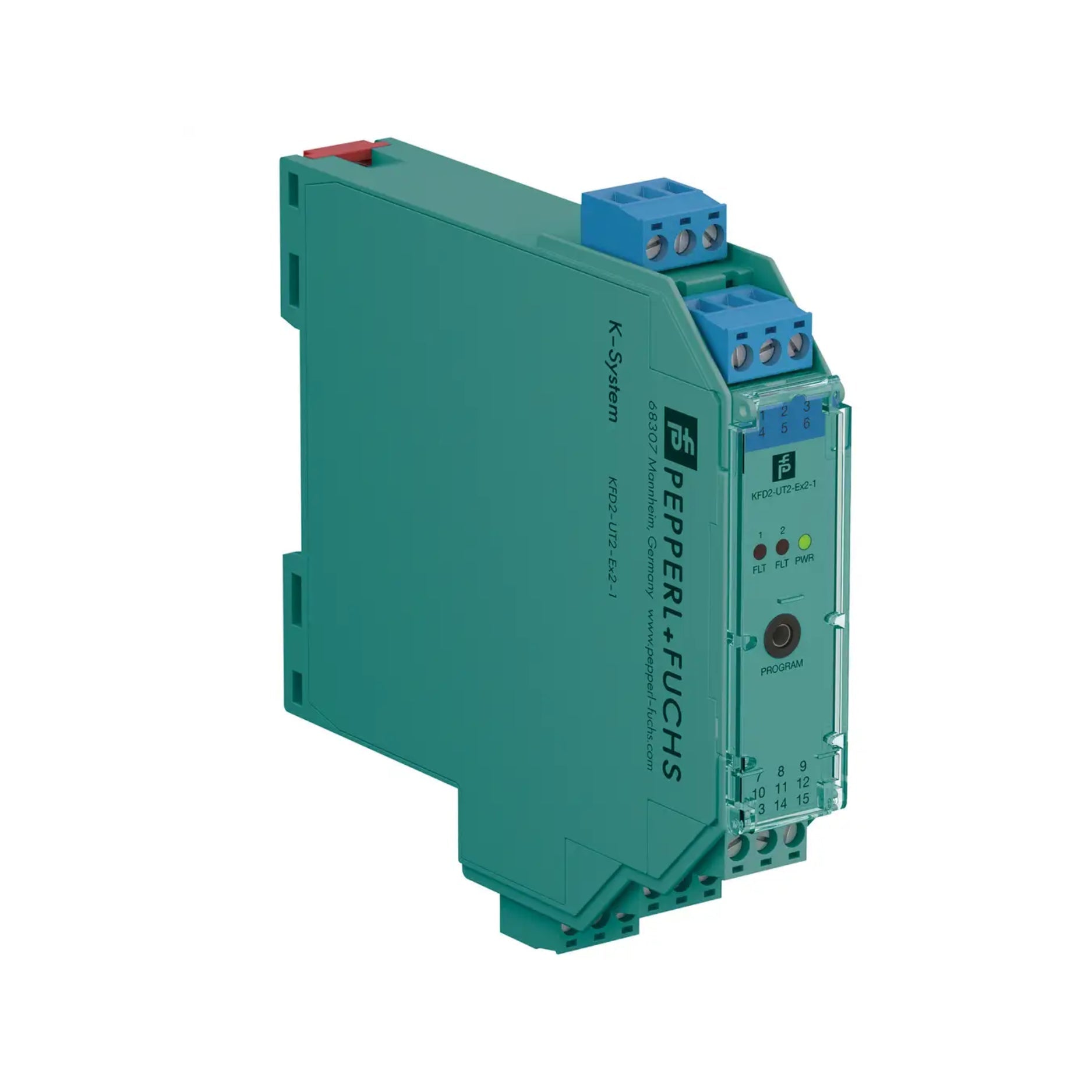

Pepperl+Fuchs KFD2-UT2-Ex2 | 2-Channel Universal Temperature Converter – Part No. 248767

Overview

The KFD2-UT2-Ex2 (248767) from Pepperl+Fuchs is a 2-channel universal temperature converter designed for safe signal processing from resistance temperature detectors (RTDs), thermocouples, or resistance-type sensors located in hazardous areas. It provides isolated 4–20 mA analog outputs and is SIL 2 certified for use in safety-related applications.

With universal input support, 3-way galvanic isolation, and a compact 20 mm DIN rail housing, this module ensures flexible and reliable signal conversion in process automation environments.

Key Features

• MFG Item Number: 248767

• Channels: 2 independent inputs and outputs

• Input Types Supported:

  • RTD (Pt100, Pt500, Pt1000, etc.)

  • Thermocouples (J, K, T, etc.)

  • Resistance and millivolt signals

• Output: 4–20 mA per channel (active)

• Power Supply: 24 V DC (20–30 V)

• SIL 2 (SC 3) certified per IEC/EN 61508

• Galvanic Isolation: Between input, output, and power

• Configurable via PACTware and DTM

• Line Fault Detection: Sensor burnout/open circuit monitoring

• DIN Rail Mountable: 20 mm compact housing

Technical Specifications

• Model: KFD2-UT2-Ex2

• Part No.: 248767

• Inputs: Universal (RTD, thermocouple, resistance, mV)

• Outputs: 2 x 4–20 mA (active)

• Supply Voltage: 24 V DC ±10%

• Accuracy: ≤ 0.1% of span

• Response Time: <150 ms

• Isolation Voltage: 375 V AC

• Operating Temperature: –20 °C to +60 °C

• Protection Class: IP20

• Mounting: DIN rail (EN 60715)

• Approvals: ATEX, IECEx, UL, CE, SIL 2

Applications

• Temperature Monitoring – Safe measurement from RTDs and thermocouples

• Hazardous Area Installations – Intrinsically safe signal conditioning

• DCS/PLC Integration – Analog signal interface from field to control

• Pharmaceutical & Food Processing – High accuracy and safety compliance

• Oil & Gas, Chemical Plants – Reliable temperature feedback in Ex zones

Why Choose the KFD2-UT2-Ex2 (248767)?

• Two universal input channels in a compact 20 mm housing

• Certified SIL 2 for safety-instrumented systems

• Full support for RTD, thermocouple, and resistance inputs

• Easy integration with DCS and PLC analog inputs

Order Now

Pepperl+Fuchs KFD2-UT2-Ex2 (248767) is available and ready to ship worldwide.
