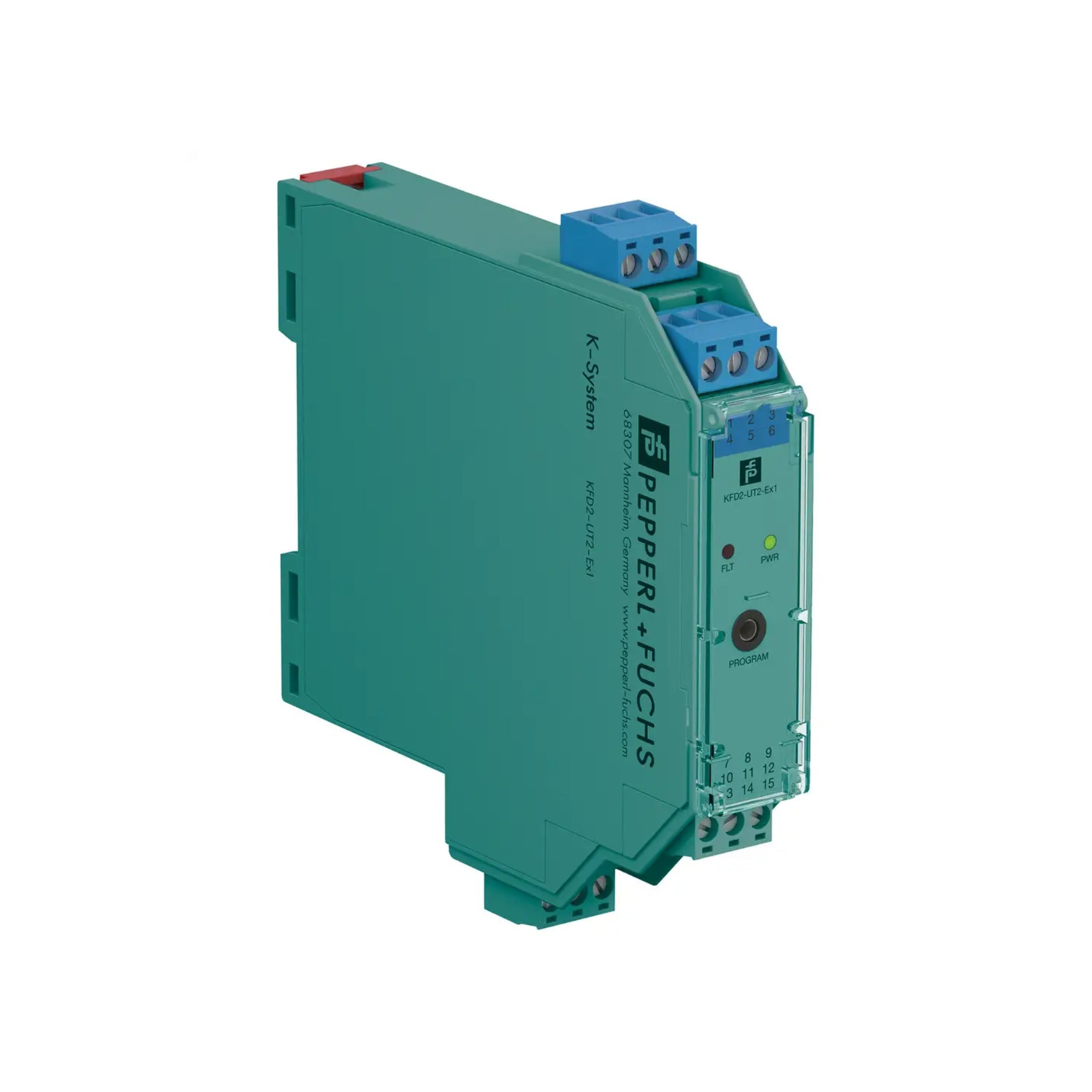

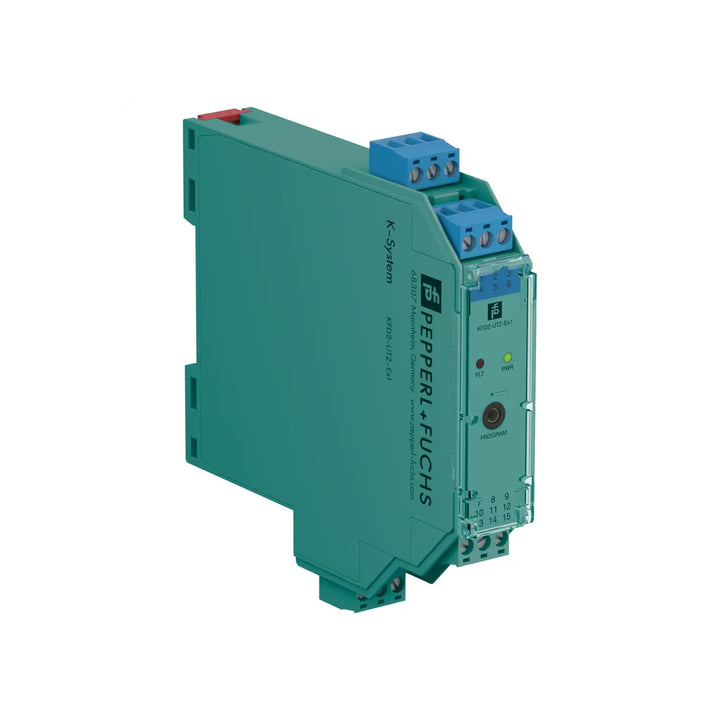

Pepperl+Fuchs KFD2-UT2-Ex1 | 1-Channel Universal Temperature Converter – Part No. 248764

Overview

The KFD2-UT2-Ex1 (248764) from Pepperl+Fuchs is a 1-channel universal temperature converter designed for isolating and converting signals from RTDs, thermocouples, resistance-type sensors, or millivolt sources located in hazardous areas. It delivers an isolated 4–20 mA analog output to the safe area and meets SIL 2 (SC 3) functional safety standards per IEC/EN 61508.

With flexible configuration, galvanic isolation, and compact DIN rail mounting, this device is ideal for process automation, temperature control, and intrinsically safe applications.

Key Features

• MFG Item Number: 248764

• Channels: 1 input / 1 output

• Input Types Supported:

  • RTD (e.g., Pt100, Pt1000)

  • Thermocouples (e.g., Type J, K, T, etc.)

  • Resistance sensors and millivolt sources

• Output: 4–20 mA (active, analog)

• Power Supply: 24 V DC (20–30 V)

• SIL 2 Certified – Systematic Capability SC 3

• Galvanic Isolation: 3-way isolation (input/output/power)

• Configuration via PACTware/DTM

• Line Fault Detection: Sensor open circuit detection

• Mounting: Compact 20 mm housing for DIN rail

Technical Specifications

• Model: KFD2-UT2-Ex1

• Part No.: 248764

• Input Signal: Universal (RTD, thermocouple, resistance, mV)

• Output Signal: 4–20 mA (active)

• Power Supply: 24 V DC nominal

• Accuracy: ≤ 0.1% of span

• Response Time: <150 ms

• Temperature Range: –20 °C to +60 °C

• Protection Class: IP20

• Mounting Type: DIN rail (EN 60715)

• Isolation Voltage: 375 V AC

• Certifications: ATEX, IECEx, UL, CSA, CE, SIL 2

Applications

• Temperature Monitoring – From RTDs or thermocouples in Ex areas

• Process Automation – Safe analog transmission to DCS/PLC

• Pharmaceutical & Food Processing – High-precision control

• Oil & Gas Industry – Certified Ex zone integration

• Water/Wastewater – Reliable field signal conversion

Why Choose the KFD2-UT2-Ex1 (248764)?

• Universal input for maximum flexibility

• SIL 2 certified with built-in diagnostics

• Compact and space-saving design

• Reliable Pepperl+Fuchs performance for critical environments
