Pepperl+Fuchs KFD2-UFC-Ex1.D | Frequency Converter, SIL 2, 0/4–20

Pepperl+Fuchs KFD2-UFC-Ex1.D | Universal Frequency Converter with Analog Output and Trip Relays

Overview

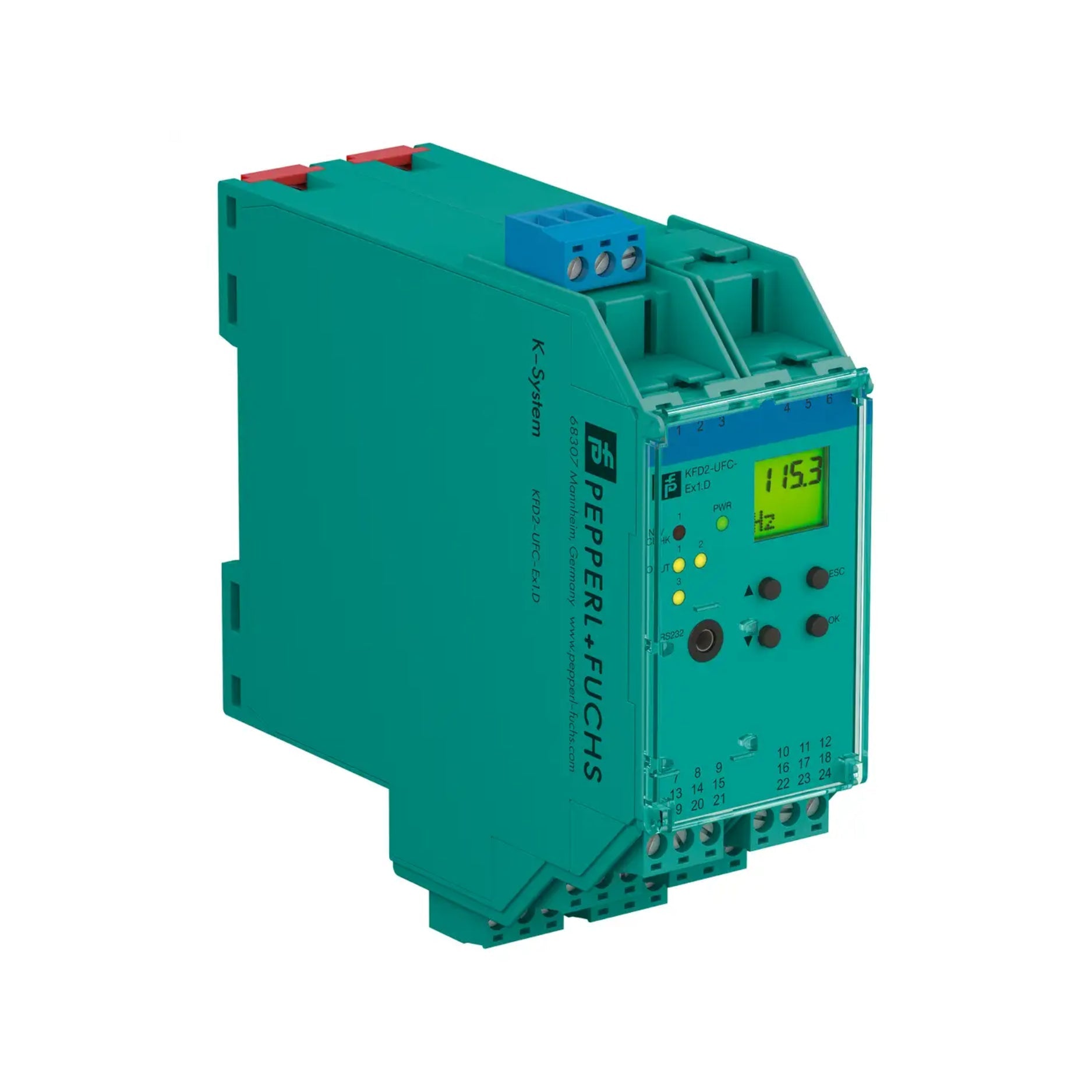

The KFD2-UFC-Ex1.D from Pepperl+Fuchs is a universal frequency converter and trip amplifier used to safely interface signals from hazardous areas. It converts digital pulse signals from NAMUR sensors or mechanical contacts into proportional analog current outputs (0/4–20 mA) and provides two relay outputs for alarm/trip functions. It is ideal for applications requiring frequency-to-current conversion, speed monitoring, and flow signal conditioning.

This unit is certified for SIL 2 functional safety per IEC 61508/61511 and designed for DIN rail mounting in process control panels.

Key Features

• Signal Input: NAMUR sensor or dry contact

• Frequency Range: 0.001 Hz to 5,000 Hz

• Analog Output: Configurable 0–20 mA or 4–20 mA

• Switch Outputs:

  • 2 × Relay contacts (trip alarms)

  • 1 × Transistor output

• Power Supply: 24 V DC via Power Rail or terminal

• Response Time: < 100 ms for analog output

• SIL Rating: SIL 2 (SC3) according to IEC/EN 61508

• Line Fault Detection (LFD): Open/short-circuit detection

• Protection Class: IP20

• Mounting: DIN rail

Technical Specifications

• Model Number: KFD2-UFC-Ex1.D

• Manufacturer Part Number: 231194

• Input Signal: NAMUR sensor or mechanical contact

• Output:

  • Analog: 0/4–20 mA

  • Relay: 250 V AC / 2 A, 40 V DC / 2 A (resistive)

  • Transistor: Passive open collector

• Power Consumption: Approx. 2.2 W

• Operating Temp: -20 °C to +60 °C

• Dimensions: 40 mm (W) × 119 mm (H) × 115 mm (D)

• Weight: Approx. 180 g

Applications

• Flow measurement systems (frequency-to-current conversion)

• Rotational speed monitoring with trip alarms

• Pulse monitoring in process automation

• Hazardous area signal conversion with safety compliance

Why Choose the KFD2-UFC-Ex1.D?

• Converts frequency signals to standard analog output

• Built-in safety with SIL 2 compliance

• Relay outputs for alarm or control logic

• Easy installation via DIN rail and Power Rail compatibility
