Pepperl+Fuchs KFD2-STC5-Ex1 | SMART Transmitter Power Supply – Part No. 70124109

Overview

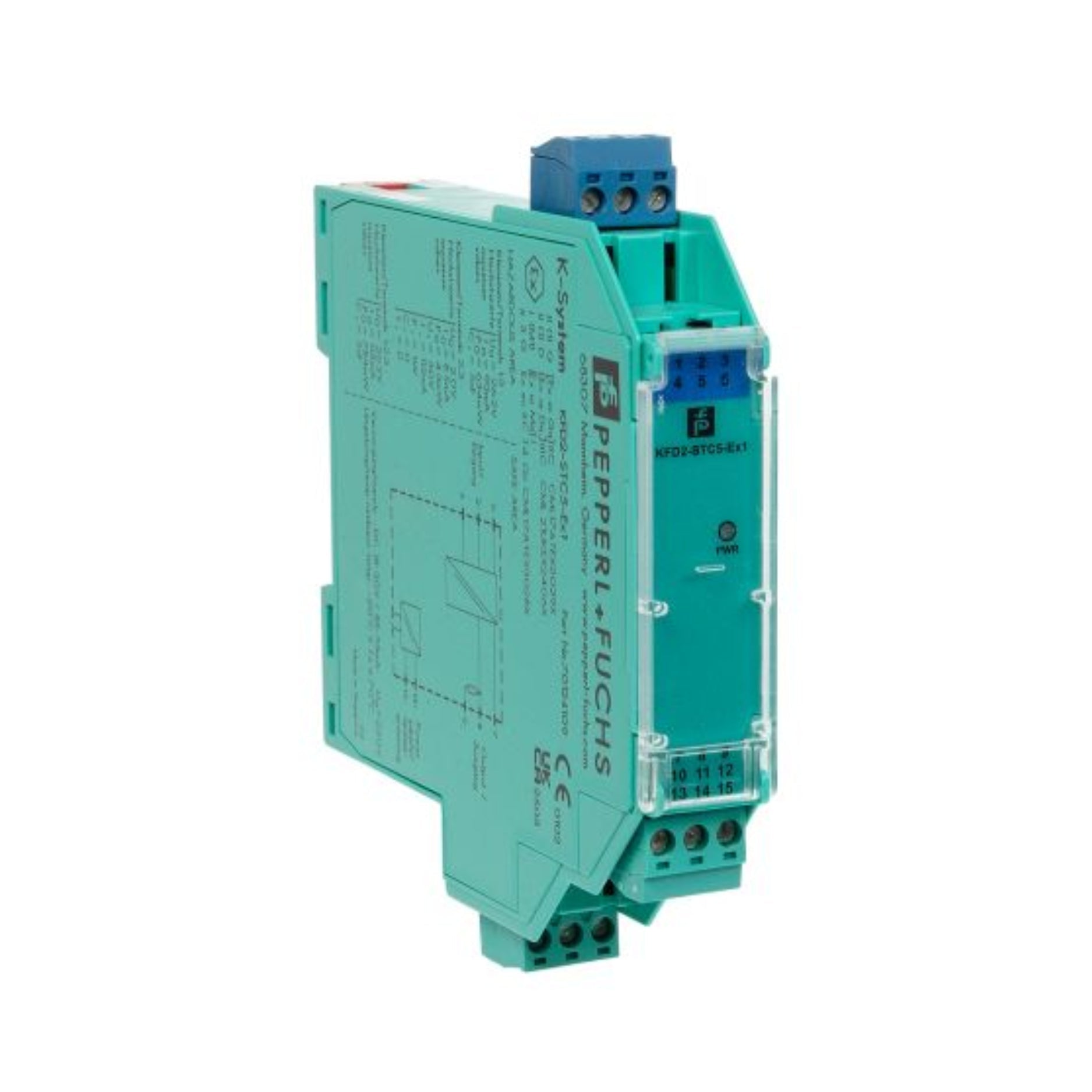

The KFD2-STC5-Ex1 (70124109) by Pepperl+Fuchs is a 1-channel isolated barrier designed to power and safely transmit signals from 2-wire SMART transmitters or current sources located in hazardous areas. It provides a loop-powered 4–20 mA active output, supports HART bidirectional communication, and ensures safe signal transmission to control systems in the safe area.

Certified for SIL 2 (Systematic Capability SC 3) in accordance with IEC/EN 61508, this device is ideal for safety-related process automation applications and offers 3-way galvanic isolation and DIN rail mounting in a compact 20 mm housing.

Key Features

• Part Number: 70124109

• 1-Channel Isolated Barrier – Compact and space-saving

• Input: 2-wire SMART transmitters or current sources

• Output: Active 4–20 mA loop signal

• Power Supply: 24 V DC (20–30 V range)

• HART Compatible – Supports digital communication

• SIL 2 Certified (SC 3) – Functional safety compliant

• 3-Way Isolation: Input / Output / Power

• DIN Rail Mountable – 20 mm width

• LED Status Indicators – Diagnostic and operational visibility

• IP20 Protection – For safe area installation

Technical Specifications

• Model: KFD2-STC5-Ex1

• Part No.: 70124109

• Input Signal: 4–20 mA (2-wire transmitters)

• Output Signal: Active 4–20 mA

• Voltage Supply: 20 to 30 V DC

• Isolation Voltage: 375 V AC

• Mounting Type: DIN rail (EN 60715)

• Housing Width: 20 mm

• Temperature Range: –20 °C to +60 °C

• Protection Rating: IP20

• Signal Type: Analog with HART passthrough

• Safety Compliance: SIL 2 / SC 3 (IEC/EN 61508)

• Certifications: ATEX, IECEx, UL, CSA (depending on variant)

Applications

• Process Automation – Reliable analog signal interface

• Chemical & Oil Industries – Hazardous area compliance

• Water & Wastewater Facilities – Remote transmitter integration

• Pharmaceutical Plants – Functional safety and precision control

• DCS/PLC Integration – Compatible with standard analog input cards

Why Choose the KFD2-STC5-Ex1 (70124109)?

• Proven safety and reliability with SIL 2 certification

• Full HART compatibility for modern transmitters

• Trusted Pepperl+Fuchs performance for harsh environments

• Compact size, easy to install, low maintenance
