Pepperl+Fuchs KFD2-SR2-Ex1.W | 1-Channel Switch Amplifier, SIL 2,

Pepperl+Fuchs KFD2-SR2-Ex1.W | Intrinsically Safe Relay Output Barrier for NAMUR Sensors – SIL 2

Overview

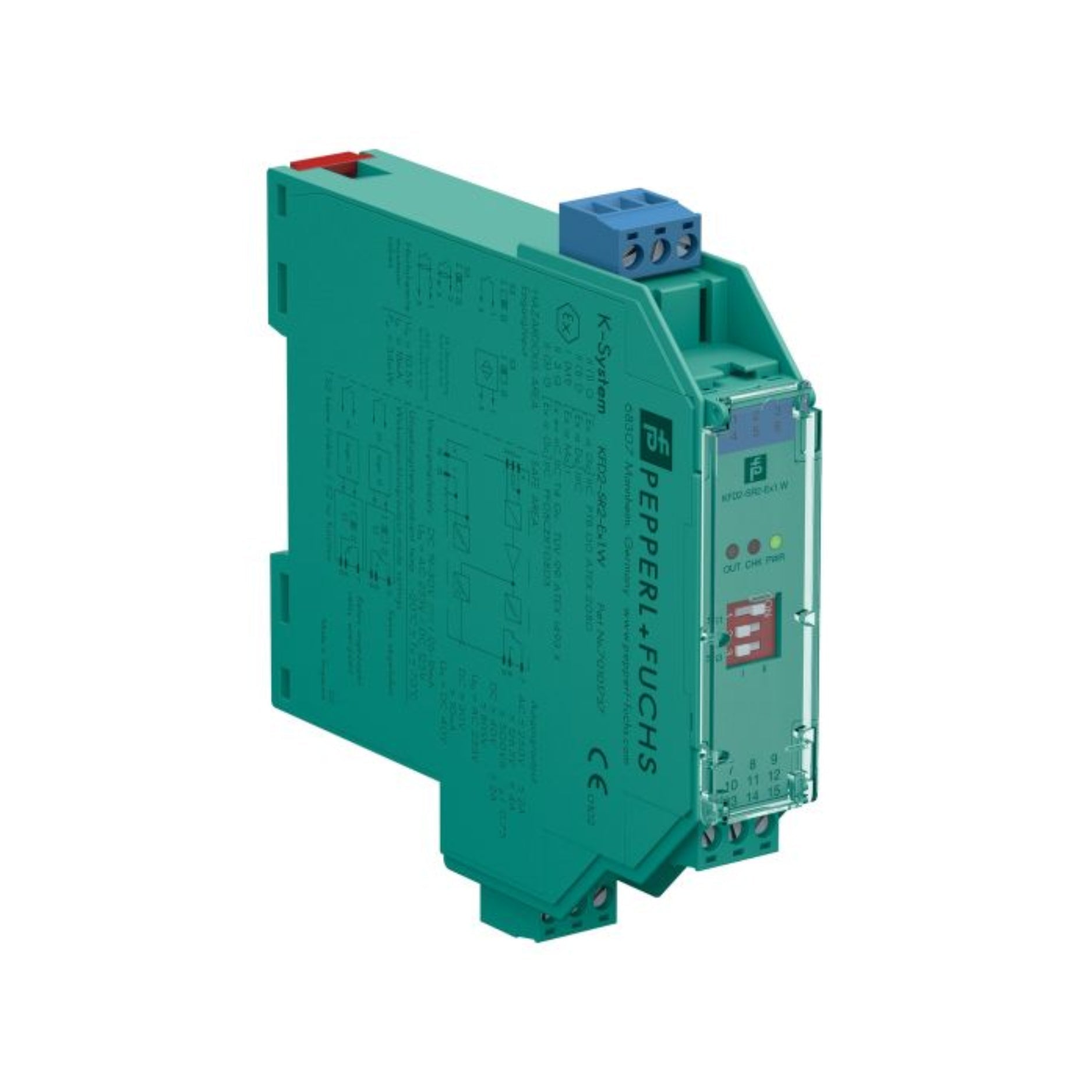

The KFD2-SR2-Ex1.W is a 1-channel isolated barrier switch amplifier from Pepperl+Fuchs, engineered for safe and reliable transmission of digital signals from hazardous areas to control systems in the safe zone. Accepting inputs from NAMUR sensors or dry contacts, this unit delivers a relay contact output and supports SIL 2 compliance per IEC 61508 standards.

With built-in line fault detection (LFD) and reversible operation, it’s ideal for safety-critical environments and process automation systems that require precise monitoring and diagnostics.

Key Features

• NAMUR Sensor & Dry Contact Input – Supports sensors or switches in hazardous areas

• Relay Output – Form C (changeover contact) with high switching capacity

• Line Fault Detection (LFD) – Monitors for open and short circuits

• SIL 2 Certified – Safety Integrity Level 2, IEC 61508 / IEC 61511 compliant

• Power Supply Options – 24 V DC via Power Rail or terminal

• Status Indicators – LEDs for relay status, power, and fault diagnostics

• Reversible Output Logic – Configurable via DIP switch for Light/Dark operation

Technical Specifications

• Input Type: NAMUR sensor or dry contact

• Open Circuit Voltage: Approx. 8 V DC

• Short-Circuit Current: Approx. 8 mA

• Switching Thresholds: ON > 2.1 mA / OFF < 1.2 mA

• Output Type: Relay, SPDT (form C), contact rating:

  • 253 V AC / 2 A (cos φ > 0.7)

  • 40 V DC / 2 A (resistive load)

• Minimum Switch Current: 2 mA @ 24 V DC

• Response Time: Approx. 20 ms

• Supply Voltage: 19–30 V DC

• Power Consumption: ≤ 0.9 W

• Mounting Type: DIN Rail (EN 60715)

• Operating Temperature: -20 °C to +60 °C

• Enclosure Rating: IP20

• Dimensions: 20 mm (W) × 119 mm (H) × 115 mm (D)

• Indicators: Green (power), Yellow (relay), Red (LFD)

Applications

• Process Control Systems – Interfaces field devices in hazardous areas with PLCs and DCS

• Chemical & Oil Industry – Used in ATEX and intrinsically safe loop installations

• SIL 2 Safety Loops – Ideal for ESD (Emergency Shutdown) signal routing

• Automation Panels – Reliable relay output from hazardous zone signals

Why Choose the KFD2-SR2-Ex1.W?

• Reliable signal isolation and transfer from hazardous areas

• Includes diagnostics and status indicators for quick troubleshooting

• SIL 2 certified for safety-critical applications

• Flexible configuration with DIP switch setup

• Compact 20 mm width saves panel space
