Pepperl+Fuchs KFD2-EB2 | Power Feed Module | 24 V DC Supply | 4 A Output

Pepperl+Fuchs KFD2-EB2 | Reliable Power Feed Module for Industrial Automation Systems

Overview

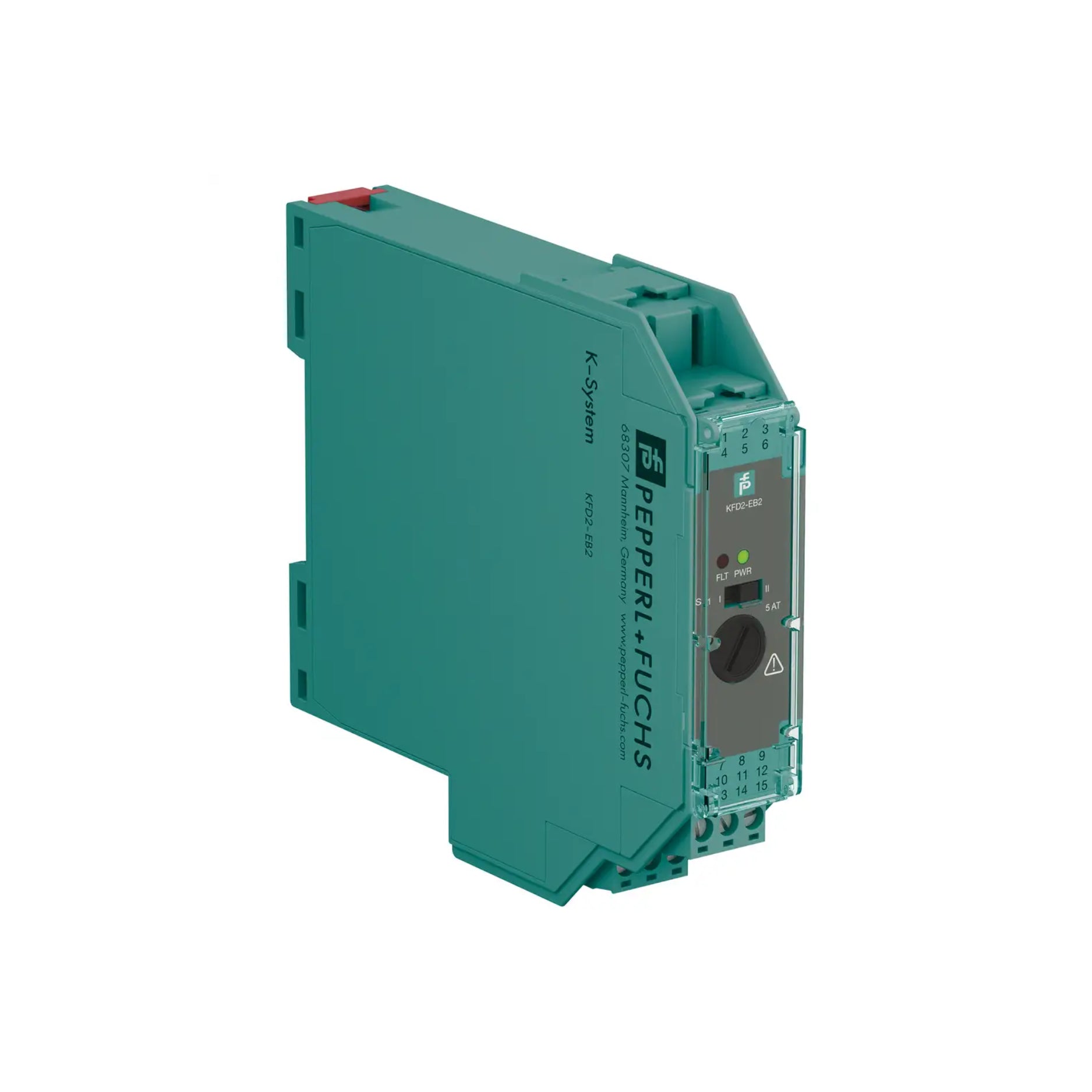

The KFD2-EB2 is a power feed module designed to connect a 24 V DC supply to the Power Rail with up to 4 A of output current. Ideal for use in industrial automation, it features a replaceable fuse, LED status indicators for power and faults, and a relay output for fault monitoring. The module ensures stable power distribution across DIN rail-mounted components.

Key Features

• Interfaces 24 V DC power supply to Power Rail

• Output current up to 4 A

• Replaceable 5 A fuse

• Relay contact output for fault signaling (NO/NC selectable)

• Green LED (power status) and red LED (fault) indicators

• DIN rail mounting (35 mm EN 60715)

• Slim design: 20 × 119 × 115 mm

• Protection class: IP20

• Part Number: 189783

Technical Specifications

• Supply voltage: 20–30 V DC

• Output voltage: Input voltage minus 0.6 V

• Power dissipation: ≤1 W

• Relay contact capacity: 30 V AC / 2 A or 40 V DC / 2 A

• Switching delay: ~20 ms

• Ambient temperature range: -40 °C to +70 °C

• Weight: Approx. 100 g

Applications

• Process control systems

• Factory automation

• Machine automation

• Power distribution for signal conditioning modules

Why Choose Pepperl+Fuchs KFD2-EB2?

• Provides clean and reliable 24 V DC power to the Power Rail

• Enhances safety with fuse protection and fault signaling

• Space-saving DIN rail design

• Clear status indication with LEDs

• Supports modular system design for scalable automation setups

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
