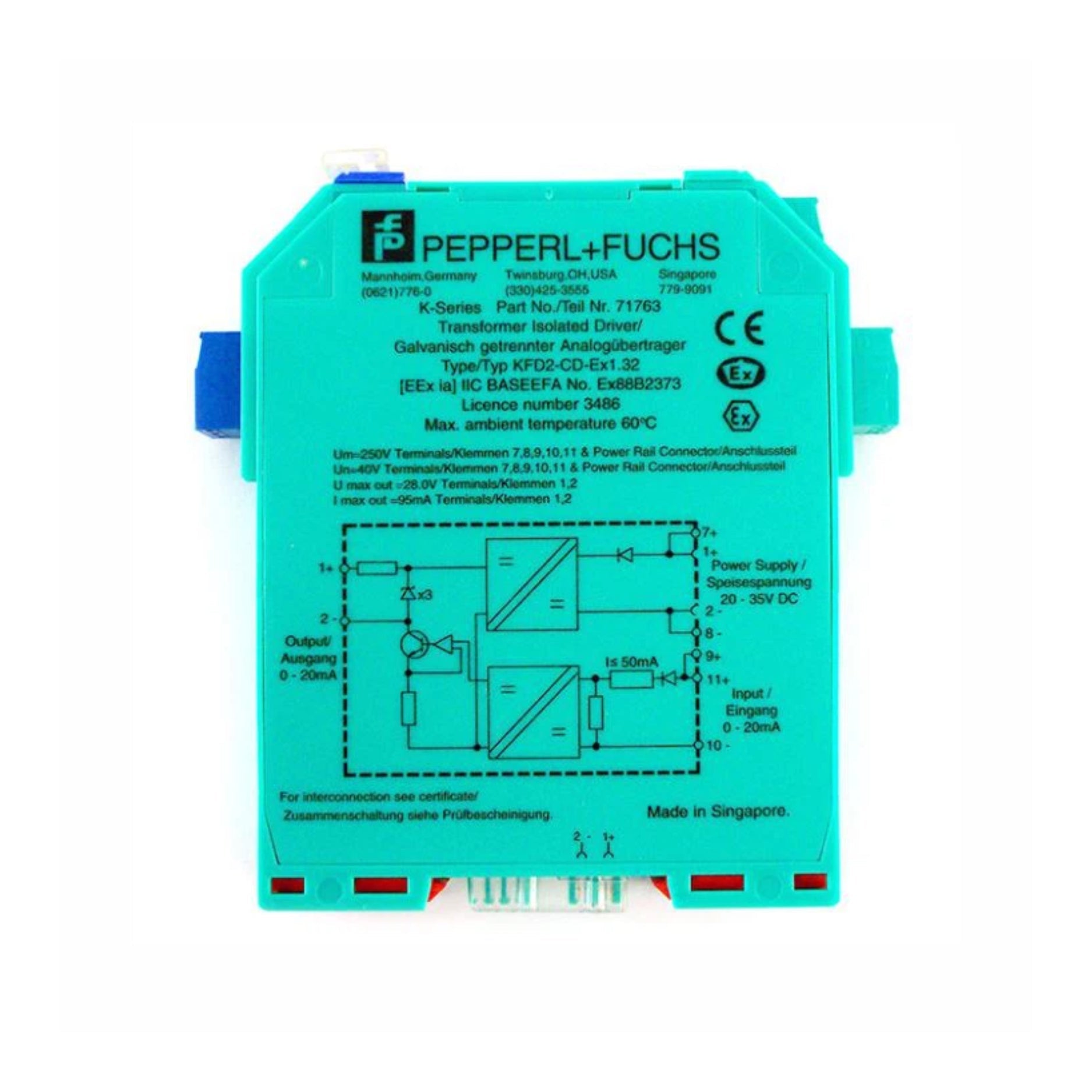

Pepperl+Fuchs KFD2-CD-Ex1.32 | Signal Isolator for Analog Drives,

Pepperl+Fuchs KFD2-CD-Ex1.32 | 1-Channel Signal Isolator for I/P Converters and Positioners

Overview

The Pepperl+Fuchs KFD2-CD-Ex1.32 is a 1-channel isolated barrier that transmits analog signals (current or voltage) from the safe area to hazardous areas. It is typically used to drive I/P converters, positioners, and control valves in explosion-prone environments.

The module ensures precise signal transmission with ≤ 0.1% deviation, and supports current or voltage output, making it a flexible solution in process control applications. Certified for SIL 2, it is ideal for safety-related automation systems.

Key Features

• High Accuracy: ≤ ±0.1% transfer deviation

• Versatile Signal Types:

  • Input: 0–20 mA or 0–10 V

  • Output: 0–20 mA or 0–10 V

• Galvanic Isolation: Between input/output/power supply

• Mounting: DIN rail (35 mm EN 60715)

• DIN-Rail Power Rail Compatible

• SIL 2 Certified: According to IEC 61508 / IEC 61511

• Quick Setup: DIP-switch configurable

Technical Specifications

• Model Number: KFD2-CD-Ex1.32

• Part Number: 104204

• Channels: 1

• Input Types: 0–20 mA or 0–10 V

• Voltage Drop (current input): ~4 V at 20 mA

• Output Types:

  • Current: 0–20 mA, max 850 Ω

  • Voltage: 0–10 V, output resistance ≤ 3 Ω

• Transfer Accuracy: ≤ ±0.1%

• Temperature Drift: ≤ ±0.01%/K

• Response Time: < 10 ms

• Power Supply: 20–35 V DC

• Power Consumption: ~1.2 W

• Isolation Voltage: 375 V AC between channels

• Ambient Temperature: -20 °C to +60 °C

• Protection Class: IP20

• Housing Dimensions: 20 mm (W) × 107 mm (H) × 115 mm (D)

• Weight: Approx. 150 g

Applications

• Process Automation – Drives analog actuators in hazardous areas

• Chemical and Oil & Gas – Interfaces between safe and explosion-prone zones

• Valve and Positioner Control – Smooth control of field devices

• Safety Systems (SIL 2) – Integrates into safety instrumented systems

Why Choose the KFD2-CD-Ex1.32?

• Exceptional signal accuracy (≤ 0.1%)

• Flexible analog I/O configurations

• Suitable for hazardous area installations

• Certified for SIL 2 safety applications

• Easy installation and setup with DIP switches
