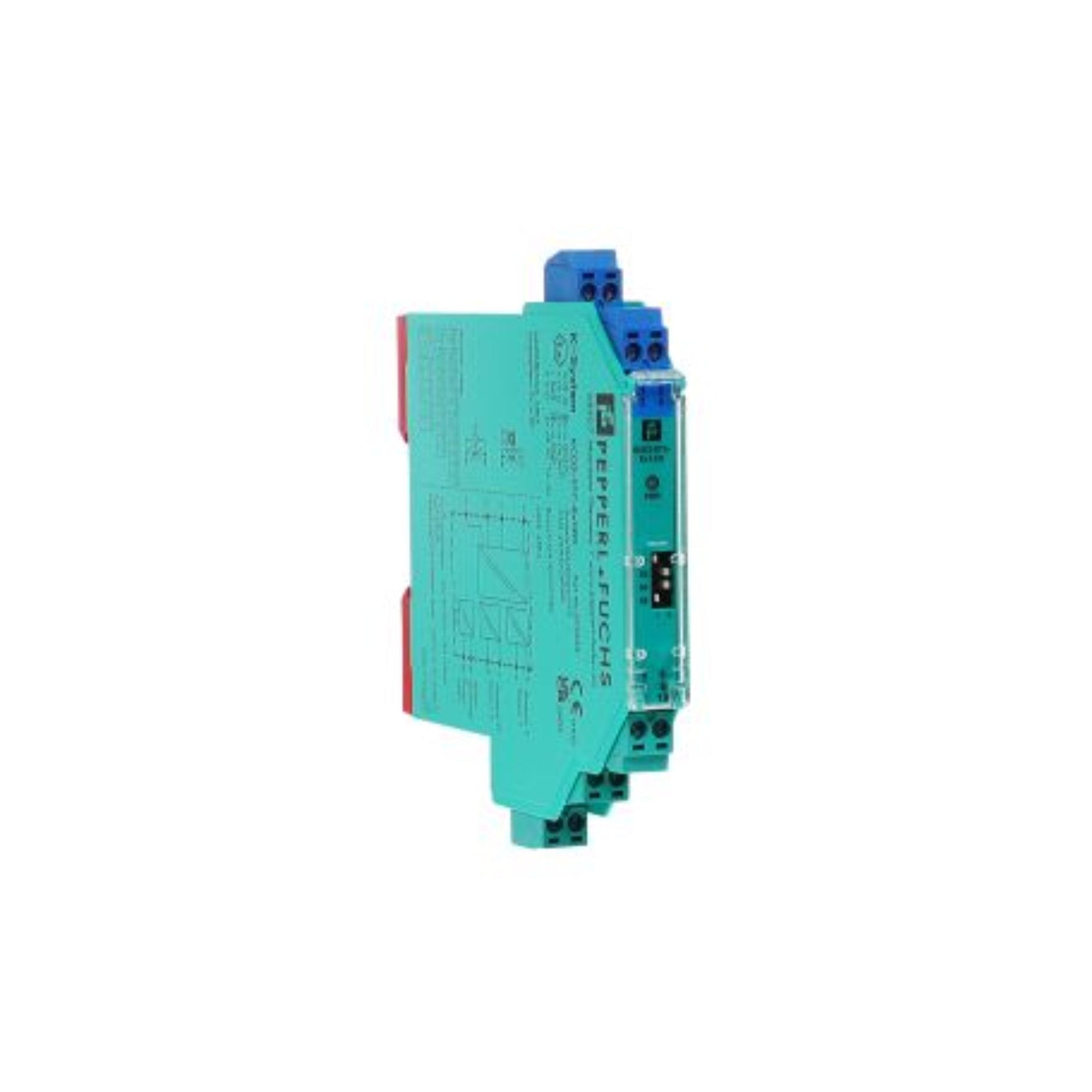

Pepperl+Fuchs KCD2-STC-Ex1.2O | 1-Channel SMART Transmitter Power Supply
Condition: New
Warranty: 1 Year

+10 Available
We deliver worldwide
sales@ddpartssolution.com
📞 +1 (689) 275-3558
Pepperl+Fuchs KCD2-STC-Ex1.2O | Reliable SMART Transmitter Power Supply for Intrinsic Safety Applications
Overview
The KCD2-STC-Ex1.2O is a 1-channel isolated barrier from Pepperl+Fuchs, designed to supply power to 2-wire SMART transmitters in hazardous areas. It provides dual analog outputs (current or voltage) and supports bi-directional communication for protocols like HART and BRAIN. The device is SIL 2 certified according to IEC/EN 61508, ensuring high reliability in safety-critical applications.
Key Features
-
Signal Type: Analog input
-
Input Signal: 0/4–20 mA
-
Dual Output:
-
Current: 0/4–20 mA
-
Voltage: 0/1–5 V
-
-
Power Supply: 19–30 V DC via Power Rail or terminals
-
Isolation: Galvanic isolation between input, output, and power supply
-
Communication: Supports HART and BRAIN protocols
-
Configuration: DIP switches for selecting output mode (source/sink/voltage)
-
Indicators: LED for power supply status
-
Mounting: 35 mm DIN rail (EN 60715)
-
Housing Dimensions (W×H×D): 12.5 × 124 × 114 mm
-
Protection Class: IP20
-
Weight: Approximately 100 g
-
Part Number: 272955
Technical Specifications
-
Input Terminals:
-
Sink Mode: Terminals 1+, 2-
-
Source Mode: Terminals 3+, 4-
-
-
Output Terminals:
-
Source Mode: Terminals 5-, 6+; 7-, 8+
-
Sink Mode: Terminals 5+, 6-; 7+, 8-
-
-
Load Resistance:
-
Current Output: 0–500 Ω
-
Voltage Output: >1 MΩ
-
-
Voltage Drop (Input): ≤6.1 V at 20 mA
-
Short-Circuit Current (Input): 25 mA
-
Input Resistance:
-
Terminals 1+, 2-: Max. 500 Ω (BRAIN)
-
Terminals 3+, 4-: ≤310 Ω
-
-
Available Voltage (Input):
-
≥16 V at 20 mA
-
≥18.5 V at 4 mA
-
-
Ripple (Output): Max. 50 µA rms
-
Transfer Accuracy:
-
Current Output: <20 µA (0.1%)
-
Voltage Output: <10 mV (0.2%)
-
-
Temperature Influence:
-
Current Output: 0.25 µA/K
-
Voltage Output: 80 µV/K
-
-
Frequency Range:
-
Field to Control Side: 0–6 kHz (-3 dB)
-
Control to Field Side: 0.3–6 kHz (-3 dB)
-
-
Settling Time: 6 ms
-
Rise/Fall Time: 2 ms
-
Safety Integrity Level (SIL): SIL 2 (SC 3) per IEC/EN 61508
-
Ambient Temperature Range: -20 °C to +60 °C (extended up to +70 °C with specific mounting conditions)
-
Approvals:
-
ATEX: II (1)G [Ex ia Ga] IIC, II (1)D [Ex ia Da] IIIC, I (M1) [Ex ia Ma] I
-
IECEx: [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I
-
UL: cULus Listed
-
CE: EN 61326-1:2013 (industrial locations)
-
UKCA: CML 21UKEX2894X
-
Applications
-
Chemical and Petrochemical Industries
-
Oil and Gas Exploration and Processing
-
Pharmaceutical Manufacturing
-
Water and Wastewater Treatment Plants
-
Food and Beverage Processing
-
Power Generation Facilities
Why Choose Pepperl+Fuchs KCD2-STC-Ex1.2O?
-
Dual Output Capability: Provides both current and voltage outputs for versatile integration
-
Intrinsic Safety: Ensures safe operation in hazardous areas with intrinsic safety certifications
-
SIL 2 Certified: Meets stringent safety requirements for critical applications
-
Compact Design: Slim 12.5 mm housing saves space in control cabinets
-
Easy Configuration: DIP switches allow for straightforward setup and mode selection
-
HART Compatibility: Facilitates advanced diagnostics and communication with HART-enabled devices
-
Reliable Performance: High accuracy and low ripple ensure precise signal transmission
