Pepperl+Fuchs KCD2-SOT-Ex1.LB | 1-Channel SIL 2 Switch Amplifier,

Pepperl+Fuchs KCD2-SOT-Ex1.LB | Single-Channel Isolated Barrier with Transistor Outputs – SIL 2

Overview

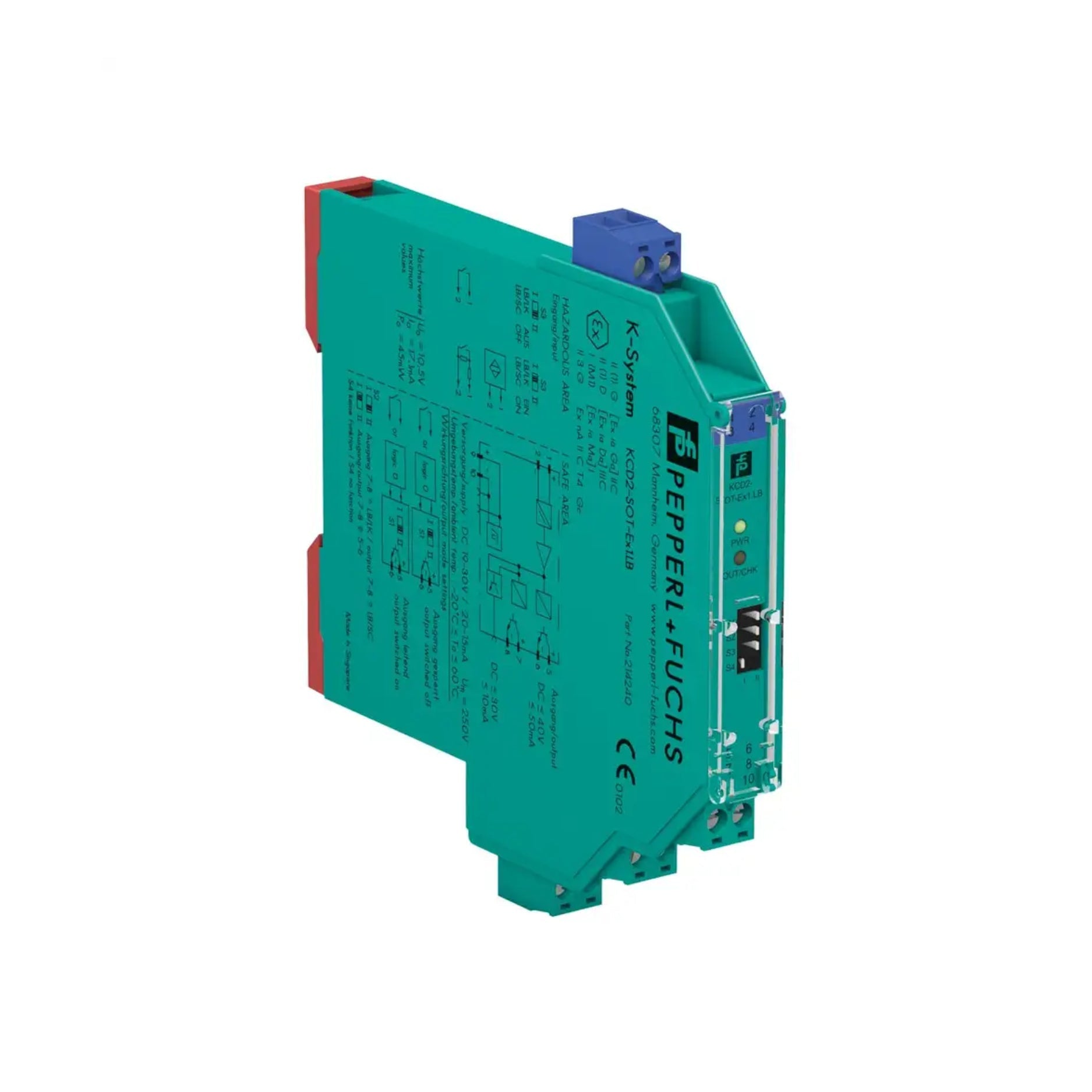

The KCD2-SOT-Ex1.LB is a 1-channel isolated barrier from Pepperl+Fuchs for transmitting digital signals from hazardous areas to the control side. Accepting input from NAMUR sensors or dry contacts, it provides two passive transistor outputs and offers line fault detection (LFD) and SIL 2 safety compliance. It is ideal for intrinsically safe circuits in chemical, oil & gas, and process automation environments.

Key Features

• Input Type: NAMUR sensor or mechanical contact

• Output Type: 2 × passive transistor outputs (NPN open collector, short-circuit protected)

• Power Supply: 24 V DC (19–30 V DC range)

• Signal Splitting Function: 1 input to 2 outputs

• LFD (Line Fault Detection): Built-in, monitors for open or short circuit

• SIL Certification: SIL 2 (SC 3) per IEC/EN 61508

• Housing Width: Only 12.5 mm – space-saving design

• Mounting: DIN rail (EN 60715)

• Configuration: DIP switch adjustable (e.g., Light/Dark ON mode)

Technical Specifications

• Model: KCD2-SOT-Ex1.LB

• Part Number: 214240

• Input Voltage (Open Circuit): ~10 V

• Input Current (Short Circuit): ~8 mA

• Switching Thresholds:

  • ON: >2.1 mA

  • OFF: <1.2 mA

• Output Voltage: Max. 30 V DC

• Output Current: Max. 50 mA per output

• Response Time: < 200 µs

• Ambient Temperature: -20 °C to +60 °C

• Enclosure Rating: IP20 (panel integration required)

• Dimensions: 12.5 mm (W) × 119 mm (H) × 115 mm (D)

• Weight: Approx. 100 g

Applications

• Intrinsically safe interface between field devices and PLCs/DCS systems

• Process automation (chemical, pharma, oil & gas)

• Signal splitting from one sensor to two control inputs

• Industrial safety loop integration

Why Choose the KCD2-SOT-Ex1.LB?

• Space-saving width (12.5 mm) for compact panels

• Two independent outputs from a single NAMUR input

• Fast signal transfer (<200 µs)

• Certified for SIL 2 safety systems

• Includes diagnostics with fault indication

Order Now

Fast shipping and worldwide delivery available.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
