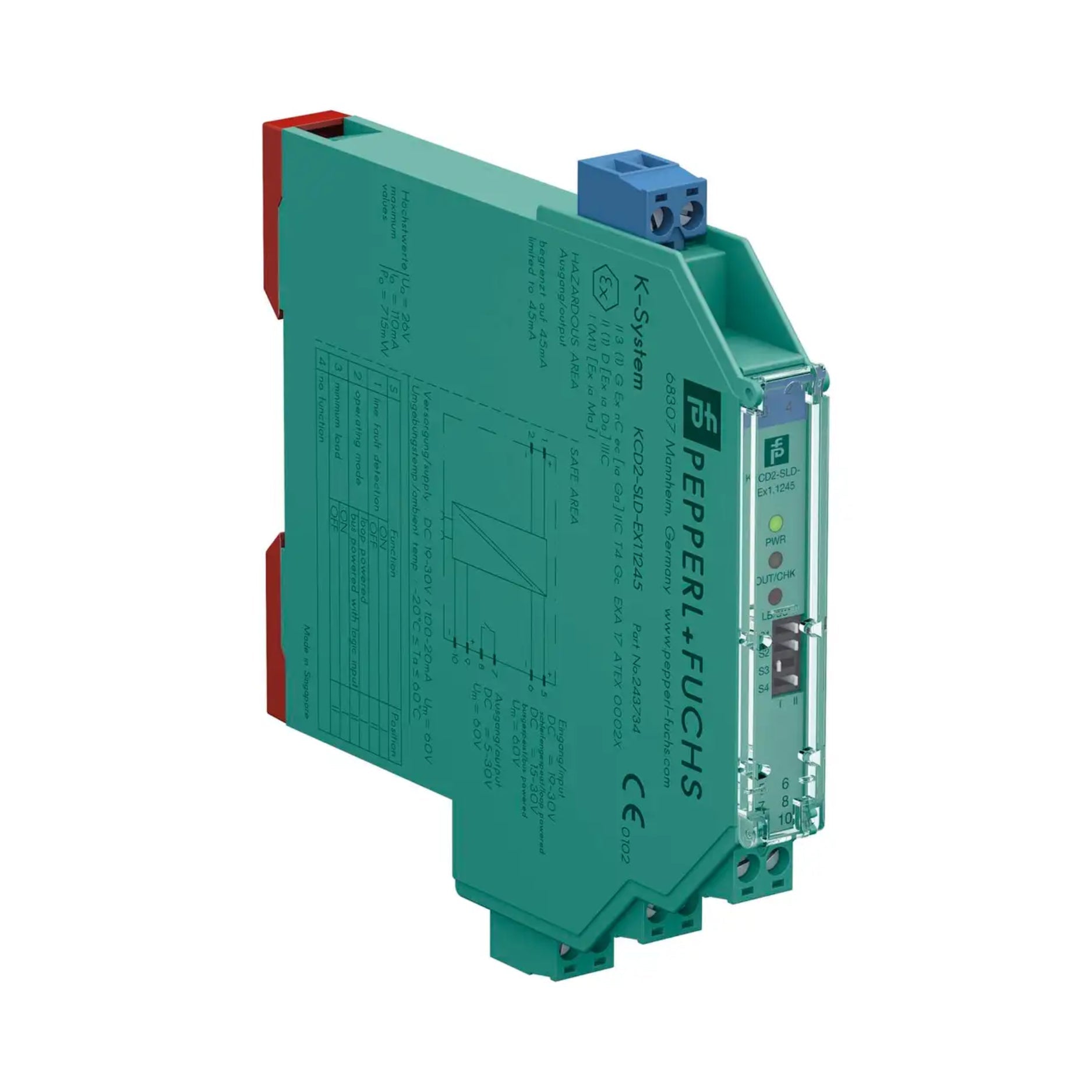

Pepperl+Fuchs KCD2-SLD-Ex1.1245 | Single-Channel Intrinsically Safe Solenoid Driver – 12 V DC, SIL 3

Overview

The KCD2-SLD-Ex1.1245 is a single-channel isolated barrier solenoid driver designed to safely control solenoids, LEDs, and audible alarms in hazardous environments. It delivers up to 45 mA at 12 V DC to field devices and is certified for SIL 3 functional safety, ensuring reliable performance in critical process automation applications.

It accepts either loop-powered or logic-level input signals, offers line fault transparency (LFT), and is immune to test pulses, making it ideal for advanced safety systems.

Key Features

• Output Power: 12 V DC, 45 mA nominal (current-limited to 50 mA)

• Input Type:

  • Loop-powered: 19–30 V DC

  • Logic-level: 15–30 V DC (5 mA max), 0–5 V = OFF

• Response Time: ≤ 20 ms

• SIL Rating: SIL 3 per IEC/EN 61508 / 61511

• Line Fault Transparency (LFT): Fault status shown in field

• Test Pulse Immunity: Compatible with diagnostic pulse systems

• Protection: Short-circuit and overload protection

• Mounting: DIN rail (12.5 mm width)

• Status Indication: Front LED indicators

Technical Specifications

• Model: KCD2-SLD-Ex1.1245

• Supply Voltage: 24 V DC (19–30 V range)

• Output Voltage: Approx. 12 V DC

• Max Load: 45 mA (50 mA current limit)

• Temperature Range: -20 °C to +60 °C

• Dimensions: 12.5 mm (W) × 119 mm (H) × 115 mm (D)

• Housing: Compact design, IP20 rated

Applications

• Oil & Gas – Solenoid actuation in ATEX/IECEx zones

• Chemical Processing – Intrinsically safe power to field alarms

• SIS Systems – SIL 3-compliant actuation of final elements

• Hazardous Area Automation – Reliable powering of indicators and sounders

Why Choose the KCD2-SLD-Ex1.1245?

• Flexible input options for loop or logic control

• Reliable 12 V DC power delivery for field devices

• Built-in safety diagnostics and fault transparency

• SIL 3 certified for high-integrity safety loops

• Compact DIN rail installation
