Pepperl+Fuchs KCD2-SCD-Ex1 | 316911 1-Channel SMART Current

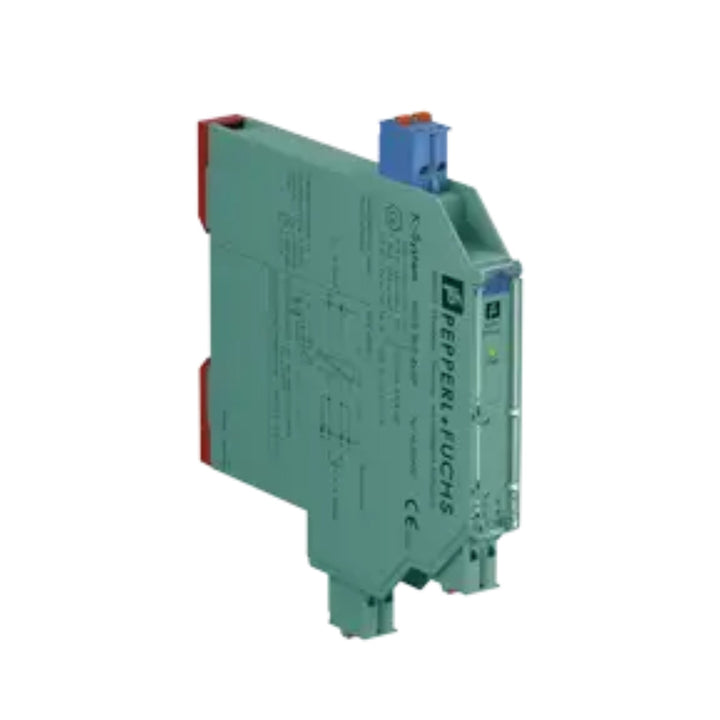

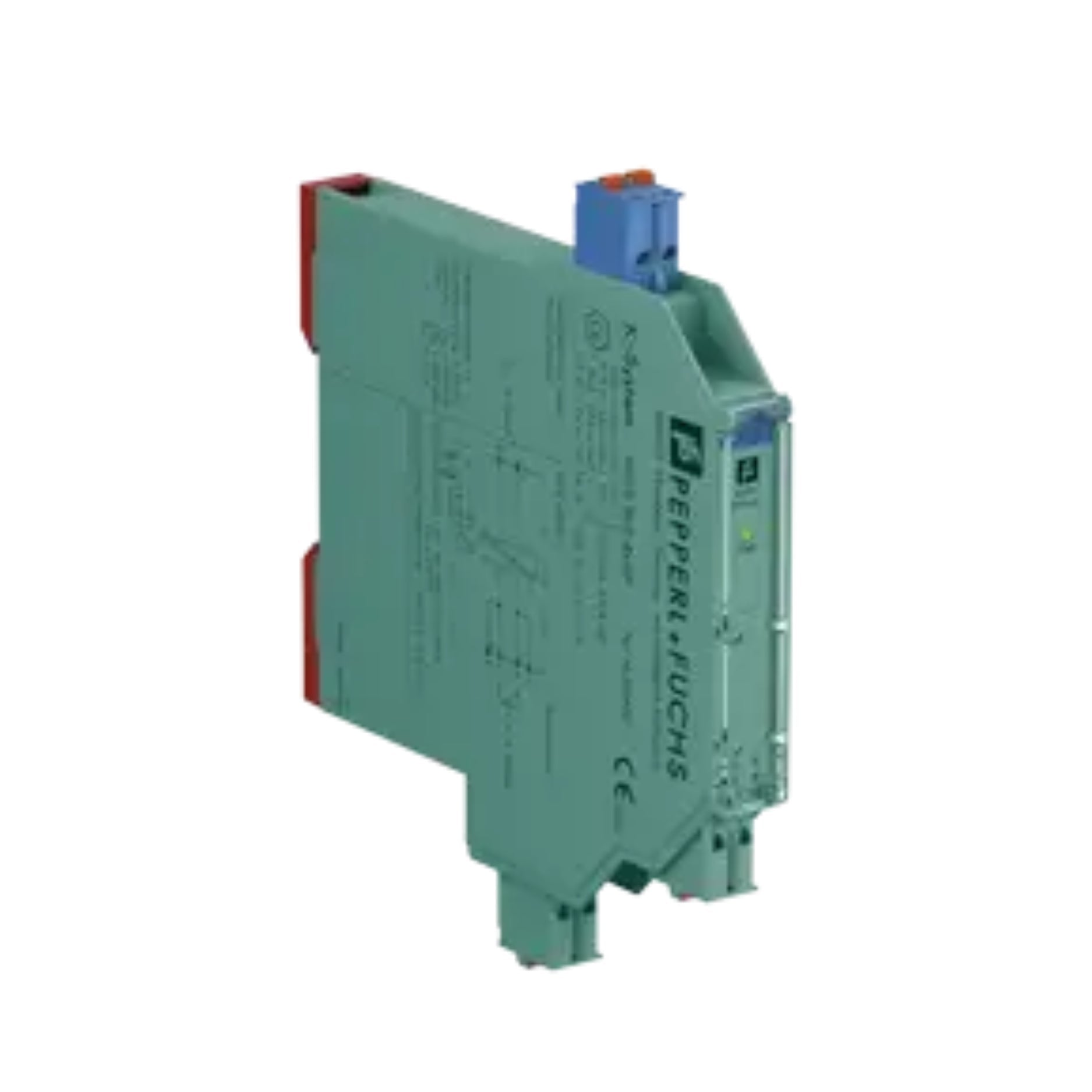

Pepperl+Fuchs KCD2-SCD-Ex1 | SMART Current Driver – Part No. 316911

Overview

The Pepperl+Fuchs KCD2-SCD-Ex1 (316911) is a 1-channel isolated SMART current driver, designed to drive I/P converters, control valves, and other actuators in hazardous areas. It accepts a 4–20 mA analog signal from the safe area and transmits it into the hazardous area with HART signal compatibility, while maintaining intrinsic safety and SIL 2 compliance.

This unit ensures reliable and precise signal transmission for demanding process automation tasks, offering galvanic isolation, fault monitoring, and DIN rail mounting in a compact 12.5 mm housing.

Key Features

• Part Number: 316911

• Signal Direction: Safe area → Hazardous area

• Output: Intrinsically safe 4–20 mA (drives I/P converters, control valves)

• Input: 4–20 mA from safe area

• HART Compatible: Passes through HART communication

• SIL 2 (SC 3) Certified – per IEC/EN 61508

• Line Fault Detection: Monitoring for open/short circuit

• Power Supply: 24 V DC (via terminals or Power Rail)

• Mounting: DIN rail (12.5 mm housing width)

• LED Indicators: Status and diagnostics

Technical Specifications

• Model: KCD2-SCD-Ex1

• MFG Item Number: 316911

• Input Signal: 4–20 mA

• Output Signal: 4–20 mA, intrinsically safe (Ex ia)

• Supply Voltage: 20 to 30 V DC

• Power Consumption: Approx. 0.9 W

• Mounting: DIN rail (EN 60715)

• Housing Width: 12.5 mm

• Temperature Range: –20 °C to +60 °C

• Protection Class: IP20

• Safety Certification: SIL 2, SC 3 (IEC/EN 61508)

• Approvals: ATEX, IECEx, UL, CSA, CE

Applications

• Control Valve Operation – Safe current drive to field actuators

• I/P Converters – Signal transmission in hazardous zones

• DCS Integration – Seamless current control from control systems

• Chemical and Oil & Gas Industries – SIL-compliant actuator driving

• HART Loop Systems – Digital signal transparency

Why Choose the KCD2-SCD-Ex1 (316911)?

• SIL 2 certified for safety-critical applications

• Reliable, safe signal transmission to Ex field devices

• HART communication support for smart diagnostics and tuning

• Compact and DIN rail friendly for panel space optimization

Order Now

Pepperl+Fuchs KCD2-SCD-Ex1 (316911) is available for immediate shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
