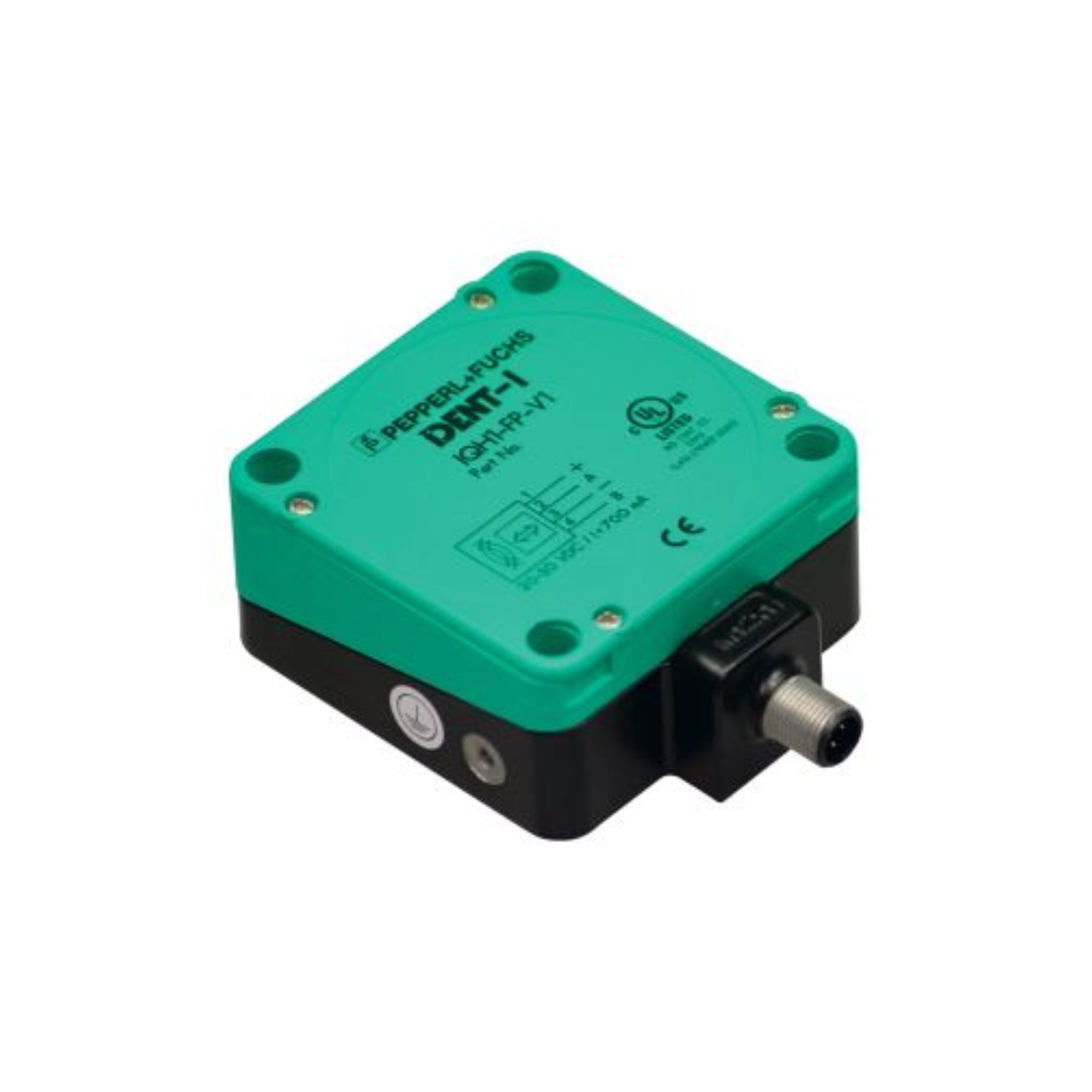

Pepperl+Fuchs IQH1-FP-V1 | RFID Read/Write Head | 13.56 MHz | IP67

Pepperl+Fuchs IQH1-FP-V1 | RFID Read/Write Head, 13.56 MHz, M12 Connector, IP67

Overview:

The Pepperl+Fuchs IQH1-FP-V1 (Part No. 204623) is a compact RFID read/write head designed for industrial applications using HF (13.56 MHz) technology. With an IP67-rated flush-mount housing, it enables reliable communication with RFID tags even in harsh environments. The M12 connector provides fast and secure connection for integration into automation systems.

Key Features:

• Operating Frequency: 13.56 MHz (HF RFID)

• Interface: RFID-specific (compatible with IDENTControl interface units)

• Read/Write Range: Up to 45 mm (depending on tag)

• Mounting Type: Flush-mount

• Connector: M12, 4-pin (A-coded)

• Housing Type: Flat, compact, rugged design

• Protection Rating: IP67

• Operating Temperature: -25°C to +70°C

• LED Indicators: Status and communication indicators

• Material: PBT (housing), PA (sensing face)

Technical Specifications:

• Model Number: IQH1-FP-V1

• Part Number: 204623

• RFID Standard: ISO 15693

• Voltage Supply: 18–30 VDC (via IDENTControl unit)

• Power Consumption: ≤ 1 W

• Typical Read Range: ~30–45 mm with standard transponders

• Connection Method: M12 x 1 male connector, 4-pin

• Dimensions: Approx. 40 x 40 x 10 mm

• Weight: Approx. 60 g

Applications:

• Factory Automation: Track parts or pallets on production lines

• Material Handling: Identify totes, bins, or tools

• Packaging Systems: Automate tag-based validation

• Assembly Lines: Control flow with RFID data

• OEM Equipment: Compact RFID integration in machines

Why Choose the IQH1-FP-V1?

✅ Compact flat design fits into tight machine layouts
✅ Reliable HF RFID performance up to 45 mm
✅ IP67 housing ensures rugged environmental protection
✅ Quick-connect M12 interface simplifies installation
✅ Ideal for modern track-and-trace systems

Order Now:

Available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
