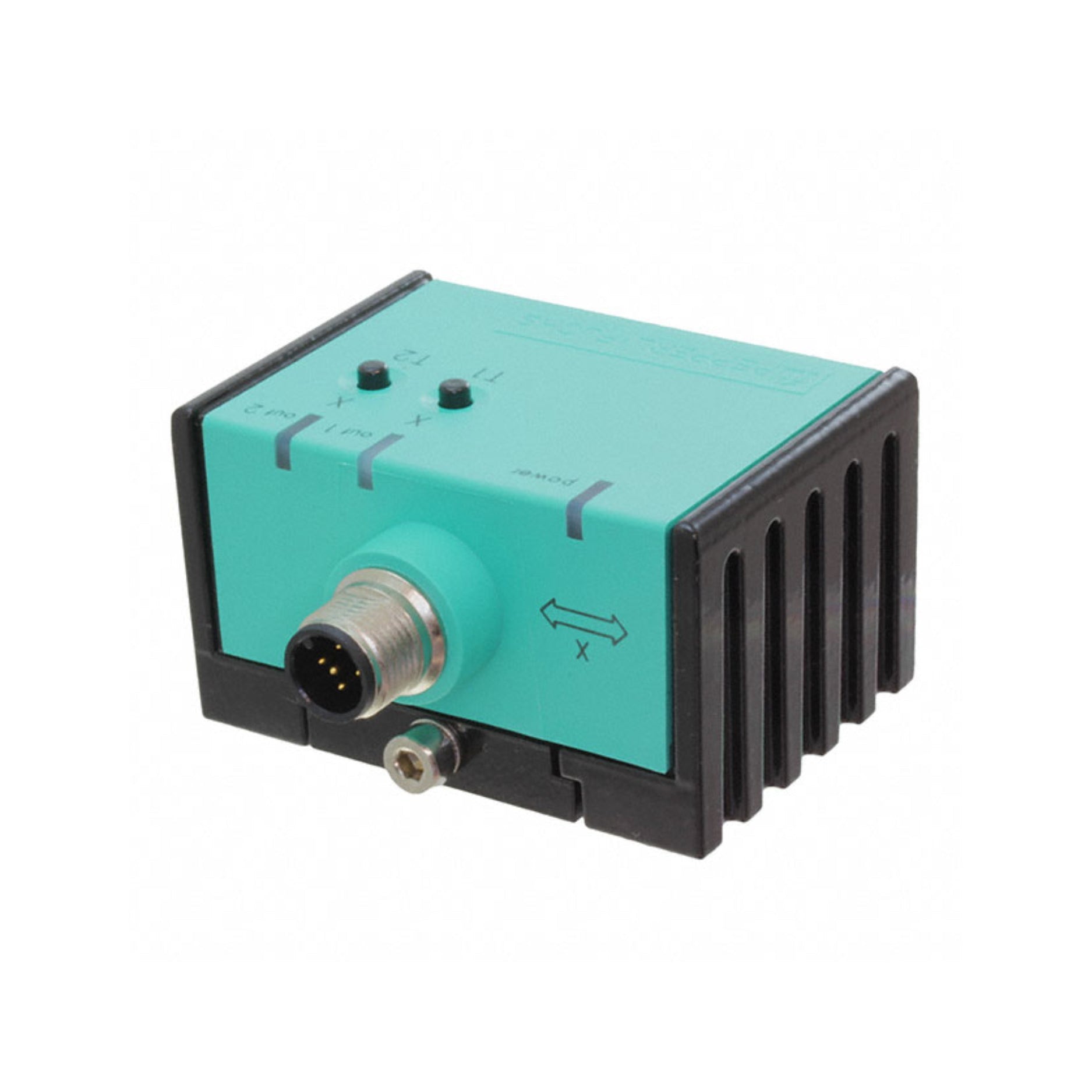

Pepperl+Fuchs INX360D-F99-I2E2-V15 | 360° Inclination Sensor with Analog and Switch Outputs

Overview

The INX360D-F99-I2E2-V15 from Pepperl+Fuchs is a 360-degree single-axis inclination sensor engineered for precise angular positioning and tilt monitoring. It features a 4–20 mA analog output and two programmable PNP switch outputs, making it ideal for dynamic industrial environments such as mobile equipment, construction machinery, or solar tracking systems.

With its robust polyamide housing, IP68/IP69K protection, and high accuracy of ±0.5°, this sensor delivers dependable performance even in harsh outdoor or washdown conditions.

Key Features

• Measurement Range: 0° to 360° (single-axis)

• Analog Output: 4–20 mA current signal

• Switch Outputs: 2 × PNP (NO), short-circuit and reverse-polarity protected

• Accuracy: ≤ ±0.5° (absolute), ≤ ±0.1° repeat accuracy

• Response Time: ≤ 20 ms

• Resolution: ≤ 0.1°

• Temperature Influence: ≤ 0.027°/K

• Compact Design: 65 × 45 × 37 mm polyamide body

• Power Supply: 10–30 V DC

• Current Consumption: ≤ 25 mA (no load)

• Status Indicators:

  • Green (Power ON)

  • Yellow (Output state and Teach-in)

• Connector: M12 × 1, 5-pin

• Operating Temp Range: -40 °C to +85 °C

• Protection Class: IP68 / IP69K

• Shock Resistance: 100 g per EN 60068-2-27

• Mounting Style: Surface mount with standard holes

Applications

• Mobile Machinery – Angle detection for leveling, boom position, and platform tilt

• Industrial Automation – Real-time tilt monitoring for equipment safety

• Solar Tracking Systems – Accurate orientation feedback for panel positioning

• Construction Equipment – Slope detection and dynamic tilt control

• Material Handling Systems – Crane and lift platform leveling

Why Choose the INX360D-F99-I2E2-V15?

• Full 360° angle detection with analog + digital outputs

• Highly robust for extreme environments (IP69K)

• Fast 20 ms response for real-time feedback

• Precise, compact, and maintenance-free design

• UL and E1 approved for global use
