Pepperl+Fuchs HCD2-FBPS-1.500 | High-Power Fieldbus Power Supply for FOUNDATION Fieldbus & PROFIBUS PA

Overview

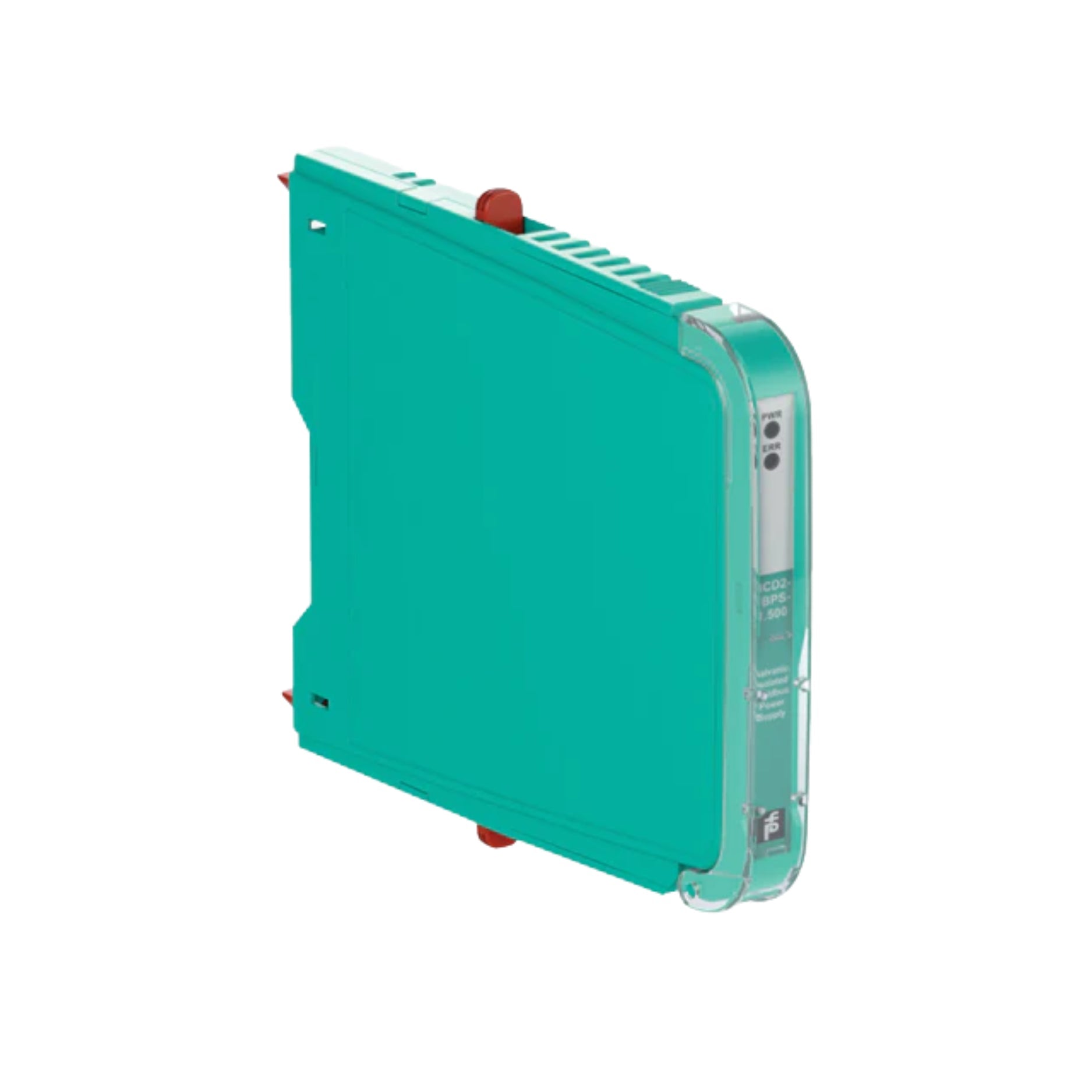

The Pepperl+Fuchs HCD2-FBPS-1.500 is a compact and efficient fieldbus power supply module that provides regulated power to one segment of FOUNDATION Fieldbus H1 or PROFIBUS PA. Supporting up to 500 mA, this module ensures reliable energy delivery, even across long cable distances and multiple devices.

Designed for Zone 2/Class I, Div. 2 hazardous environments, the HCD2-FBPS-1.500 supports redundant operation, is hot-swappable, and features galvanic isolation, making it ideal for demanding process control systems.

Key Features

• Supports FOUNDATION Fieldbus H1 & PROFIBUS PA

• Segment Output: 28–30 V DC, up to 500 mA

• Power Input: 19.2–35 V DC

• Redundant Configuration: Parallel connection of two modules for uninterrupted operation

• Galvanic Isolation: Between fieldbus output and power input

• LED Indicators: Green for power, red for fault

• Overcurrent & Short-Circuit Protection

• Hot-Swappable in Redundant Setups

• Compact 12.5 mm Width – Saves panel space

Technical Specifications

• Model: HCD2-FBPS-1.500

• Part No.: 275280

• Rated Output Current: 500 mA (per segment)

• Output Voltage: 28 to 30 V DC

• Short-Circuit Current Limit: 550 mA

• Input Voltage: 19.2 to 35 V DC

• Power Dissipation: ~1.6 W

• Output Ripple: ≤ 15 mV

• LED Indicators:

  • Green: Segment Power OK

  • Red: Segment Error

• Ambient Temperature: -40 to +70 °C (-40 to +158 °F)

• Storage Temp: -40 to +85 °C

• Mounting Type: 35 mm DIN rail (EN 60715)

• Protection Class: IP20

• Dimensions: 12.5 mm (W) × 106 mm (H) × 128 mm (D)

• Weight: Approx. 150 g

• Approvals:

  • Zone 2/Class I, Div. 2

  • CE, UL, CSA certified

Applications

• Process Automation – Powers long fieldbus segments in oil & gas, chemical, and energy plants

• Hazardous Environments – Suitable for Class I, Div. 2 and Zone 2 areas

• Control Cabinets – Space-saving power module with redundant backup support

• Field Instrumentation – Supports multiple FF/PA instruments over large installations

Why Choose the HCD2-FBPS-1.500?

• Reliable and regulated fieldbus power up to 500 mA

• Redundant-ready and hot-swappable design

• Certified for hazardous area use

• Compact footprint and diagnostics-friendly
