Pepperl+Fuchs GLV18-8-450/73/120 | Diffuse Mode Sensor – 50 to 450 mm Range, PNP Outputs, M18 Housing

Overview

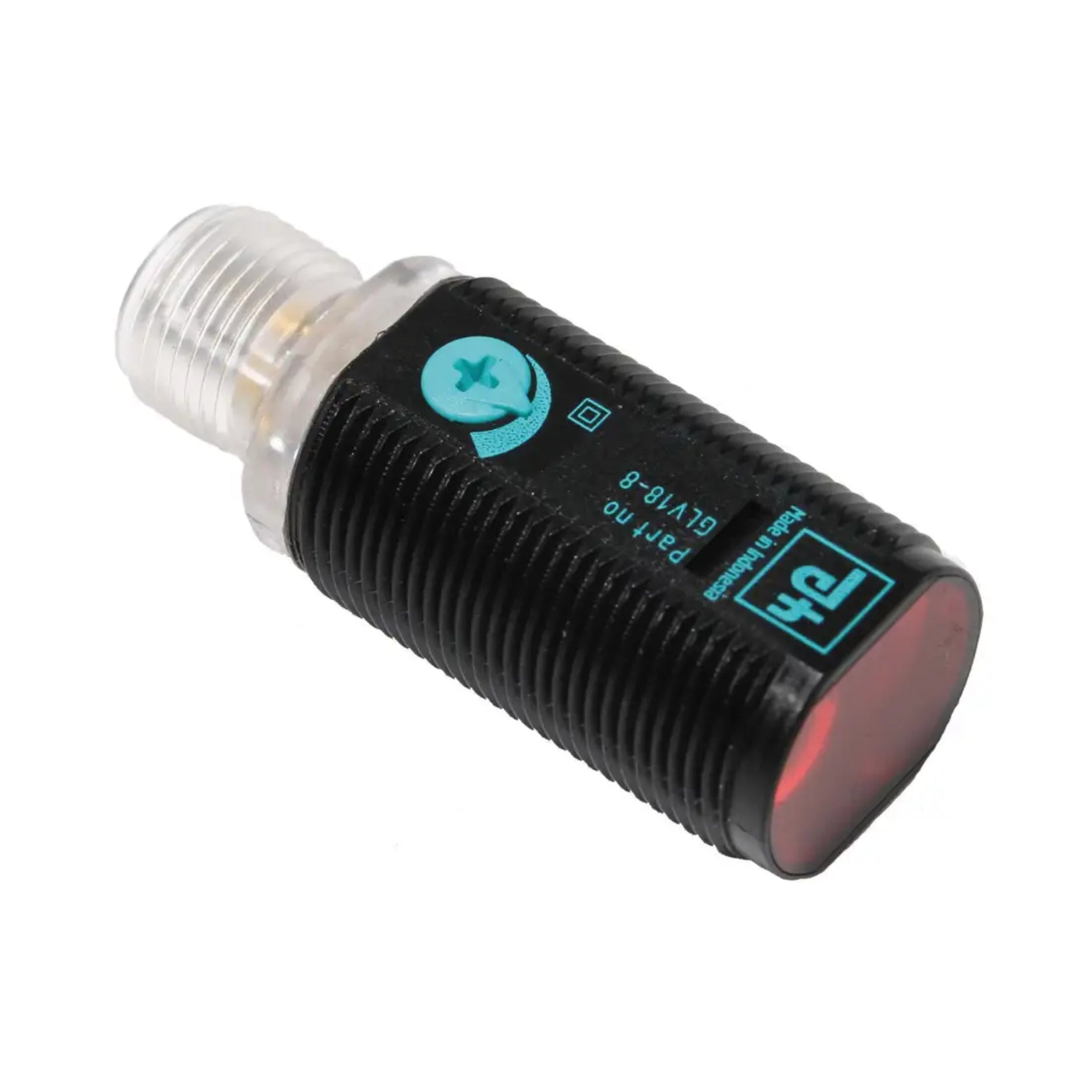

The Pepperl+Fuchs GLV18-8-450/73/120 is a high-performance diffuse mode sensor designed for reliable detection of objects within a range of 50 to 450 mm. Featuring two complementary PNP outputs and housed in a compact M18 threaded plastic housing, this sensor offers versatility and ease of integration into various industrial automation applications. The visible red light and frontal optical face ensure precise alignment and detection.

Key Features

• Detection Range: Adjustable from 50 to 450 mm

• Output Type: Two complementary PNP outputs

• Housing: M18 threaded plastic design with frontal optical face

• Light Source: Modulated visible red light (640 nm)

• Indicators: 4 LEDs for 360° visibility, providing clear status indication

• Adjustment: Sensitivity adjustment via potentiometer

• Protection Rating: IP67 for robust environmental resistance

• Connection: M12 plug for secure and straightforward installation

Technical Specifications

• Model Number: GLV18-8-450/73/120

• Part Number: 188567

• Detection Range Max: 0 to 450 mm

• Reference Target: 100 mm x 100 mm Kodak white

• Light Spot Diameter: Approximately 30 mm at 400 mm

• Opening Angle: Approximately 4°

• Ambient Light Limit: 30,000 Lux

• Hysteresis: Less than 15%

• Operating Voltage: 10 to 30 V DC

• No-Load Supply Current: Less than 20 mA

• Switching Type: Light/dark on

• Switching Voltage Max: 30 V DC

• Switching Current Max: 100 mA

• Voltage Drop: ≤ 1.5 V DC

• Switching Frequency: Up to 500 Hz

• Response Time: ≤ 1 ms

• Operating Temperature: -25°C to +60°C

• Storage Temperature: -40°C to +70°C

• Standards Compliance: EN 60947-5-2

• Certifications: CE, cULus Listed, UKCA

Applications

• Packaging Industry: Presence checks, track loading, completeness checks, stack height control

• Material Handling: Presence checks, target sensing, profile checks, trigger sensing

• Automatic Doors and Gates: Secure detection for automatic systems

• Elevator Systems: Closing edge monitoring and turnstile monitoring

Why Choose the Pepperl+Fuchs GLV18-8-450/73/120?

• High Detection Range: Adjustable up to 450 mm for versatile applications

• Compact Design: Short M18 plastic housing suitable for standard installations

• Enhanced Visibility: 4 LEDs provide 360° status indication for easy monitoring

• Easy Adjustment: Optimized potentiometer design for straightforward sensitivity settings

• Reliable Performance: IP67 rating ensures durability in harsh industrial environments
