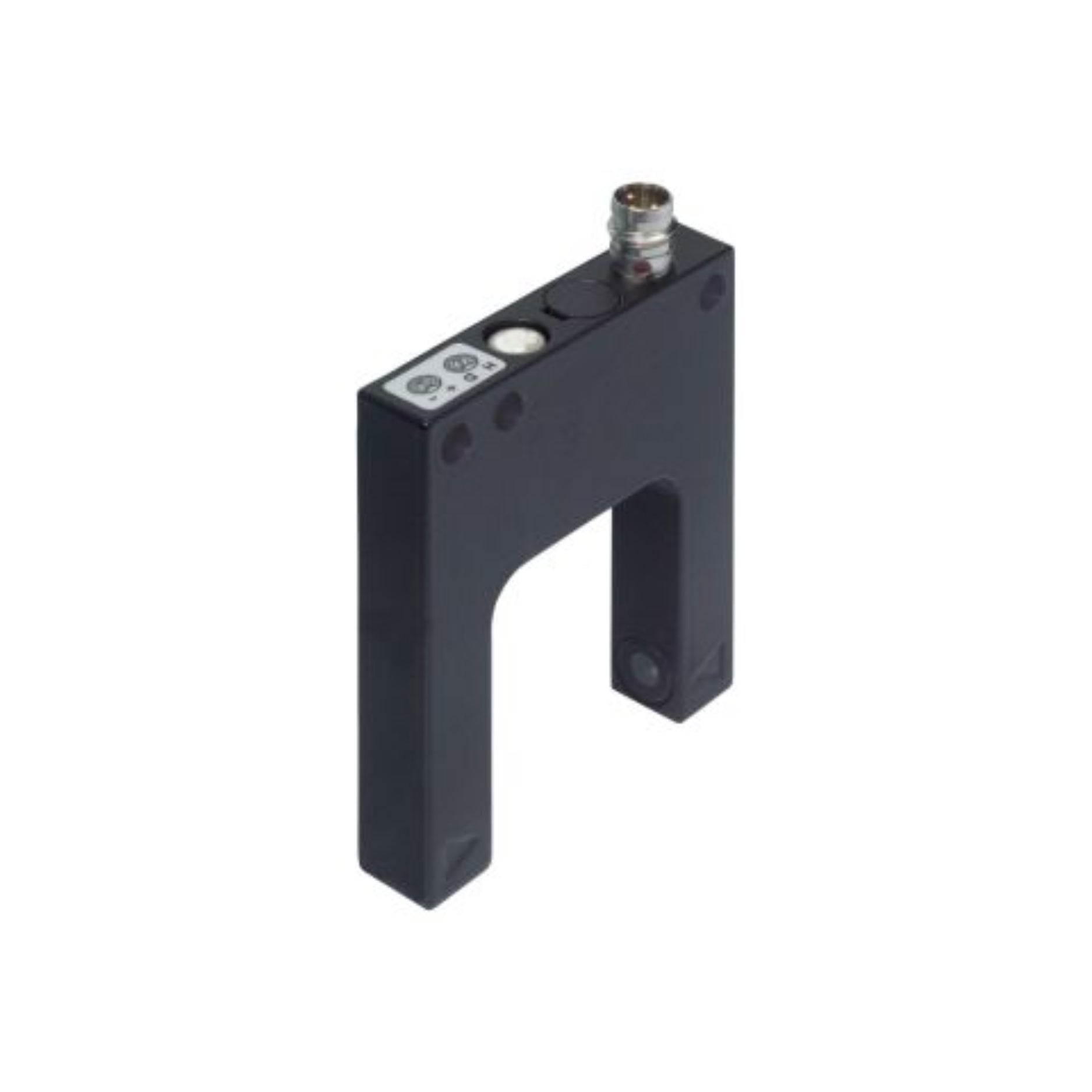

Pepperl+Fuchs GL30-RT/32/40a/98a | Photoelectric Slot Sensor | 30mm Slot Width

Pepperl+Fuchs GL30-RT/32/40a/98a | Photoelectric Slot Sensor – 30mm Slot Width, PNP Output

Overview

The Pepperl+Fuchs GL30-RT/32/40a/98a is a photoelectric slot sensor designed for precise detection of small parts, with a slot width of 30mm. Utilizing visible red light, this sensor offers high switching frequency and reliable performance in various industrial applications. Its PNP output ensures compatibility with standard control systems, and the IP67-rated diecast zinc housing provides durability in demanding environments.

This sensor is ideal for applications requiring accurate detection of small objects in industries such as automotive manufacturing, material handling, and packaging.

Key Features

• Slot Width: 30mm

• Light Source: Modulated visible red light LED

• Output Type: PNP, short-circuit protected, open collector

• Switching Frequency: Up to 3 kHz

• Sensitivity Adjustment: Integrated adjuster

• Light/Dark Operation Mode: Selectable via switch

• Housing Material: Powder-coated diecast zinc

• Degree of Protection: IP67

• Connection Type: M8 connector, 3-pin

• Operating Voltage: 10 to 30 V DC

Technical Specifications

• Model Number: GL30-RT/32/40a/98a

• Part Number: 199989

• Target Size: 0.3mm

• Slot Depth: 35mm

• Ambient Light Limit: 100,000 Lux

• Repeat Accuracy: 0.05mm

• Response Time: ≤ 160 µs

• No-Load Supply Current: ≤ 15 mA

• Switching Voltage: Max. 30 V DC

• Switching Current: Max. 100 mA

• Operating Temperature Range: -20°C to +60°C (-4°F to +140°F)

• Storage Temperature Range: -20°C to +75°C (-4°F to +167°F)

• Indicators: Red LED function indicator in connector

• Control Elements: Sensitivity adjuster, light/dark switch

• Compliance: CE, cULus approved

Applications

• Small Part Detection: Optimized for detecting objects as small as 0.3mm

• High-Speed Processes: Suitable for applications requiring high switching frequencies

• Industrial Automation: Reliable performance in material handling and packaging lines

• Harsh Environments: Durable housing with IP67 protection for use in challenging conditions

Why Choose the GL30-RT/32/40a/98a?

• Precision Detection: High resolution and repeatability for small object detection

• Robust Construction: Diecast zinc housing ensures longevity in industrial settings

• Flexible Operation Modes: Easily switch between light-on and dark-on modes

• Easy Integration: Standard M8 connector and PNP output for compatibility with various control systems

Order Now

In stock and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
