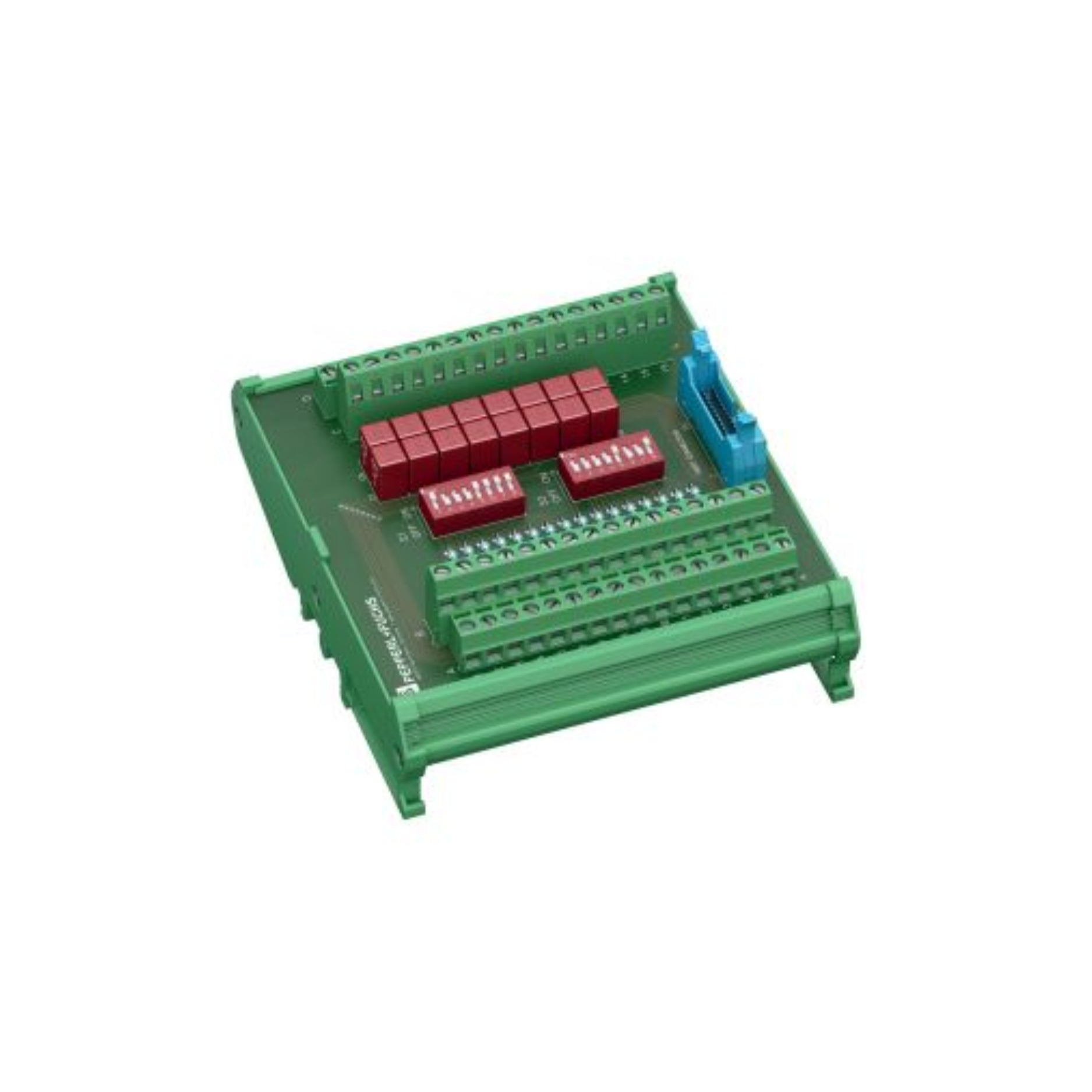

Pepperl+Fuchs FI-PFH-NS0137-R | 16-Channel HART Termination Board| Part No. 22593

Pepperl+Fuchs FI-PFH-NS0137-R | Reliable HART Termination Board for Industrial Applications

Overview

The FI-PFH-NS0137-R is a 16-channel HART termination board from Pepperl+Fuchs, designed to interface HART field devices with K-System HART multiplexers. It features an integrated, switchable 220 Ω load resistor per channel and supports both series and parallel connection configurations. This termination board facilitates efficient communication between field devices and control systems, ensuring reliable data transmission in industrial environments.

Key Features

• Channels: 16 HART signal channels (non-intrinsically safe)

• Load Resistor: Integrated, switchable 220 Ω resistor per channel

• Interface: 26-pin IDC plug for multiplexer connection

• Signal Lines: Rated current up to 30 mA per channel

• Control Elements: DIP switches for selecting operating mode

  • ON: Without load resistor

  • OFF: With load resistor

• Factory Settings: DIP switches S1 and S2 set to ON

• Connection: Screw terminals for field and control sides

• Mounting: 35 mm DIN rail according to EN 60715:2001

• Housing Material: PVC

• Protection Class: IP20

• Dimensions (W×H×D): 110 × 125 × 61 mm (4.3 × 4.9 × 2.4 inches)

• Weight: Approximately 210 g

Technical Specifications

• Ambient Temperature Range: 0 °C to +50 °C (32 °F to 122 °F)

• Storage Temperature Range: -15 °C to +50 °C (5 °F to 122 °F)

• Relative Humidity: ≤ 93% non-condensing

• Shock Resistance: 15 g, 11 ms (EN 60068-2-27)

• Vibration Resistance: 1 g, 10–150 Hz (EN 60068-2-6)

• Electromagnetic Compatibility:

  • Directive 2014/30/EU (EN 61326-1:2013 for industrial locations)

  • NE 21:2017 compliance

• Hazardous Area Certification:

  • Certificate: PF 11 CERT 1930 X

  • Marking: II 3G Ex nA IIC T4 Gc

  • Directive Conformity:

    • Directive 2014/34/EU

    • EN IEC 60079-0:2018+AC:2020

    • EN 60079-15:2010

Applications

• Process Automation Systems

• Chemical and Petrochemical Industries

• Oil and Gas Facilities

• Pharmaceutical Manufacturing

• Water and Wastewater Treatment Plants

Why Choose Pepperl+Fuchs FI-PFH-NS0137-R?

• Efficient Integration: Seamlessly connects HART field devices to K-System multiplexers

• Flexible Configuration: Supports both series and parallel connections

• Reliable Performance: Ensures stable signal transmission with integrated load resistors

• Compact Design: Saves space in control cabinets with DIN rail mounting

• Robust Construction: Built to withstand industrial environmental conditions
