Pepperl+Fuchs CJ15-U1-A2 | 15 mm | 2-Wire AC/DC | Flush | IP67

Pepperl+Fuchs CJ15-U1-A2 | Inductive Sensor, 15 mm, 2-Wire AC/DC, IP67

Overview:

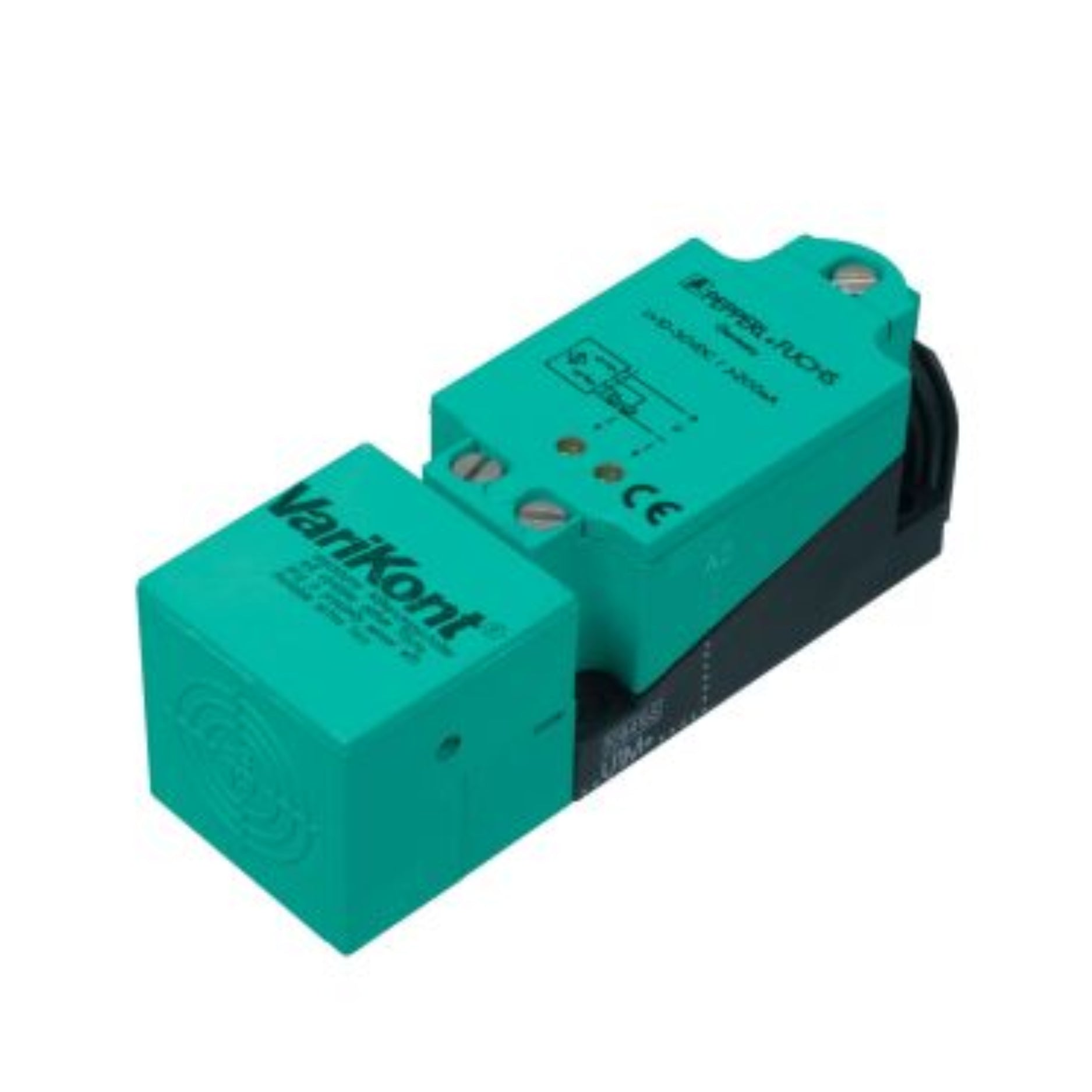

The Pepperl+Fuchs CJ15-U1-A2 (Part No. 001604) is a flush-mount inductive proximity sensor with a 15 mm sensing range and 2-wire AC/DC operation. Designed in a compact rectangular housing, it is ideal for general-purpose metal detection in both AC and DC control systems. With IP67 protection, it performs reliably in harsh industrial environments.

Key Features:

• Sensing Distance: 15 mm (flush mount)

• Output Type: Normally Open (NO)

• Wiring Type: 2-wire AC/DC

• Operating Voltage: 20–250 V AC/DC

• Housing Style: Rectangular plastic (CJ series)

• Connection: Pre-wired 2 m PVC cable

• Protection Rating: IP67

• Switching Frequency: 25 Hz (AC) / 500 Hz (DC)

• LED Indicator: Integrated for switch status

• Temperature Range: -25°C to +70°C

Technical Specifications:

• Model Number: CJ15-U1-A2

• Part Number: 001604

• Sensor Type: Inductive proximity

• Installation: Flush mounting

• Voltage Drop: ≤ 10 V

• Load Current: 5–200 mA

• Leakage Current: ≤ 1.8 mA

• Housing Material: PBT plastic

• Cable Length: 2 meters

• Weight: Approx. 80 g

Applications:

• Industrial Automation: Detect metal parts in production lines

• Material Handling: Monitor movement on conveyors

• Packaging Equipment: Confirm product positioning

• OEM Machinery: Compact sensing in control panels

• AC/DC Systems: Universal voltage compatibility for ease of use

Why Choose the CJ15-U1-A2?

✅ Wide voltage range (20–250 V AC/DC) for universal use
✅ Flush sensing up to 15 mm for reliable metal detection
✅ Compact rectangular design for space-saving installations
✅ IP67 protection for dust and water resistance
✅ Easy to install with pre-wired cable and simple logic

Order Now:

In stock and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
