Pepperl+Fuchs CCN15-30GS60-E2-V1 | M30 Capacitive Proximity Sensor | 15 mm Range

Pepperl+Fuchs CCN15-30GS60-E2-V1 | High-Precision M30 Capacitive Proximity Sensor with Adjustable Sensitivity

Overview

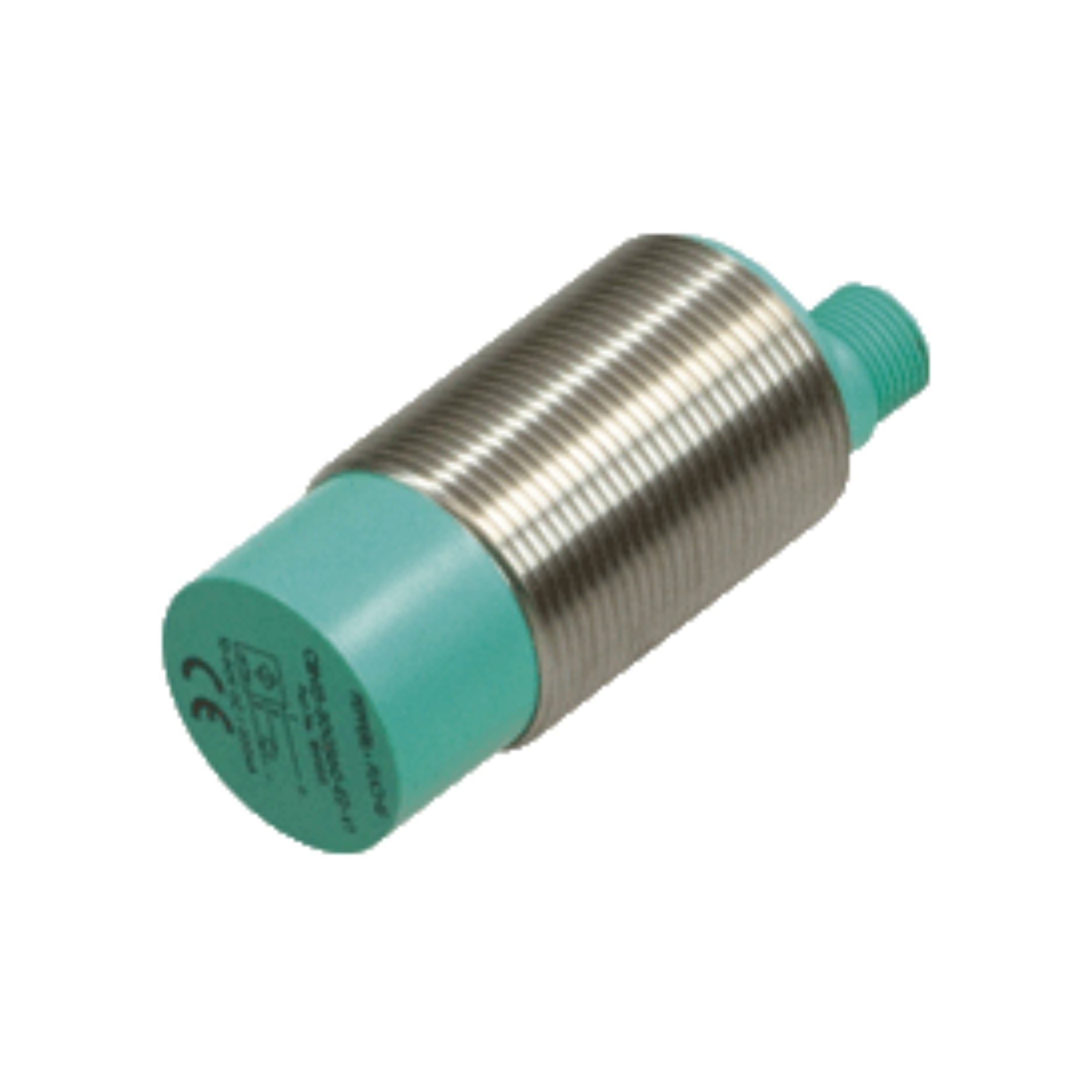

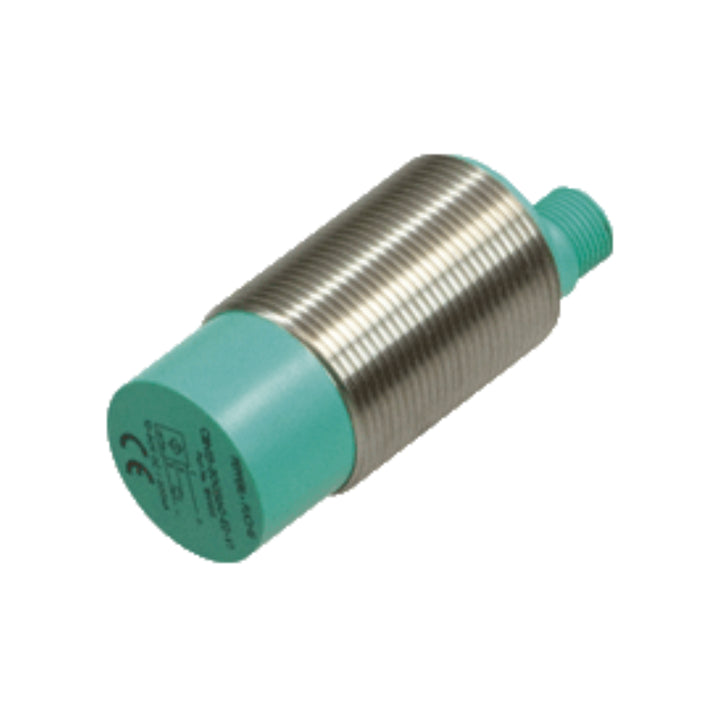

The Pepperl+Fuchs CCN15-30GS60-E2-V1 is a high-performance capacitive proximity sensor designed for accurate and reliable detection of various materials, including solids and liquids, in industrial automation applications. With a sensing distance of 15 mm, non-flush mounting capability, and a robust M30 stainless steel housing, this sensor is ideal for environments requiring precise and consistent detection.

Key Features

• Sensing Distance: 15 mm rated operating distance

• Output Type: PNP, Normally Open (NO)

• Mounting: Non-flush (non-embeddable) installation

• Housing: M30 threaded, stainless steel for durability

• Connection: M12 x 1 connector, 4-pin

• Operating Voltage: 10 to 60 V DC

• Switching Frequency: Up to 10 Hz

• Protection Rating: IP67, ensuring resistance to dust and water ingress

• Operating Temperature Range: -25°C to +70°C (-13°F to +158°F)

• Sensitivity Adjustment: Potentiometer for fine-tuning detection range

• Indicator: Yellow LED for clear switching status indication

Technical Specifications

• Model Number: CCN15-30GS60-E2-V1

• Series: Standard Series

• Switching Function: Normally Open (NO)

• Output Type: PNP

• Rated Operating Distance (sn): 15 mm

• Assured Operating Distance (sa): 0 to 12.1 mm

• Operating Voltage (UB): 10 to 60 V DC

• Switching Frequency (f): 0 to 10 Hz

• Hysteresis (H): Typically 5%

• Reverse Polarity Protection: Yes

• Short-Circuit Protection: Pulsing

• Voltage Drop (Ud): ≤ 2.8 V

• Operating Current (IL): 0 to 200 mA

• Off-State Current (Ir): 0 to 0.5 mA, typically 0.1 µA at 25°C

• No-Load Supply Current (I0): ≤ 20 mA

• Time Delay Before Availability (tv): ≤ 50 ms

• Switching State Indicator: Yellow LED

• Connection Type: M12 x 1 connector, 4-pin

• Housing Material: Stainless steel 1.4305 / AISI 303

• Sensing Face Material: PBT

• Degree of Protection: IP67

• Dimensions:

  • Length: 60 mm

  • Diameter: 30 mm

• Tightening Torque: ≤ 10 Nm

• Standards Compliance: EN IEC 60947-5-2

• Approvals:

  • UL: cULus Listed, General Purpose

  • CCC: Certified by China Compulsory Certification (CCC)

Applications

• Industrial Automation: Detection of various materials, including solids and liquids, in production lines

• Material Handling: Monitoring levels of granular or powdered substances in hoppers and silos

• Packaging Machinery: Ensuring presence and position of packaging materials

• Agricultural Equipment: Sensing grain or feed levels in storage bins

Why Choose Pepperl+Fuchs CCN15-30GS60-E2-V1?

• Versatile Detection: Capable of detecting a wide range of materials, both solid and liquid

• Adjustable Sensitivity: Potentiometer allows fine-tuning for specific application requirements

• Robust Construction: Durable stainless steel housing suitable for harsh industrial environments

• Reliable Performance: Consistent detection with a 15 mm sensing range and up to 10 Hz switching frequency

• Easy Integration: Standard M12 connector facilitates quick and secure connections
